6.9 Typical Characteristics

Typical values at TA = 25 °C, full temperature range is TMIN = –40 °C to TMAX = 85 °C, ADC sampling rate = 500 MSPS, 50% clock duty cycle, VA3.0 = 3.0 V, VA1.8 = 1.8 V, VA1.2 = VACLK1.2 = 1.2 V, –1 dBFS differential input (unless otherwise noted).
ADC31JB68 D015_SLASE60.gif
Figure 4. DNL vs Output Code
ADC31JB68 D017_SLASE60.gif

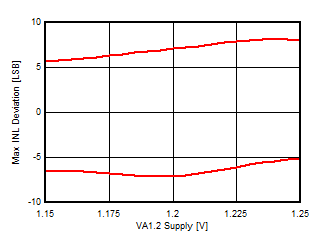

Figure 6. INL vs Supply
ADC31JB68 D002_SLASE60.gif

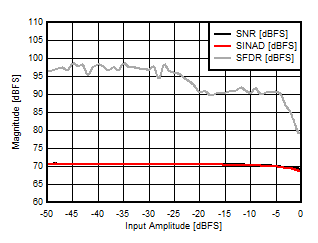

Figure 8. SNR, SINAD, SFDR vs Input Amplitude
ADC31JB68 D004_SLASE60.gif
Input Frequency = 210 MHz

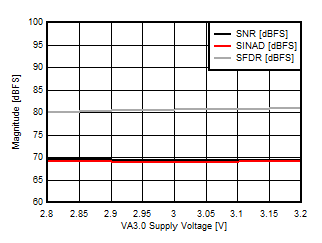

Figure 10. SNR, SINAD, SFDR vs VA3.0 Supply

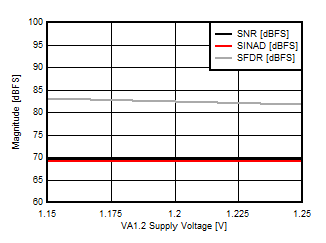

ADC31JB68 D042_SLASE60.gif
Input Frequency = 210 MHz
Figure 12. SNR, SINAD, SFDR vs VA1.2 Supply
ADC31JB68 D007_SLASE60.gif

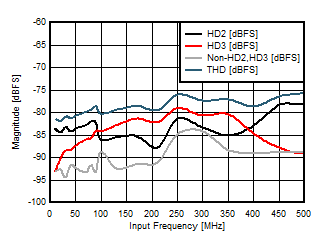

Figure 14. HD2, HD3, SPUR, THD vs Input Frequency
ADC31JB68 D009_SLASE60.gif
Input Frequency = 210 MHz
Figure 16. HD2, HD3, SPUR, THD vs Sampling Rate
ADC31JB68 D020_SLASE60.gif

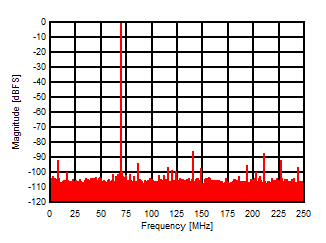

Figure 18. Output Spectrum, 1-Tone Test at 70 MHz
ADC31JB68 D022_SLASE60.gif
Figure 20. Output Spectrum, 1-Tone Test at 450 MHz
ADC31JB68 D025_SLASE60.gif
Figure 22. Supply Power and Current vs Temperature
ADC31JB68 ADC31JB68_TXeye_3in_VOD1_DEM0_slase60.png
5-mil. FR4 Microstrip Trace at 5 Gb/s with No De-Emphasis
Figure 24. Transmitted Eye at Output of 3-Inch
ADC31JB68 D016_SLASE60.gif

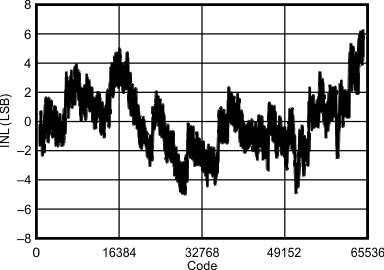

Figure 5. INL vs Output Code
ADC31JB68 D001_SLASE60.gif

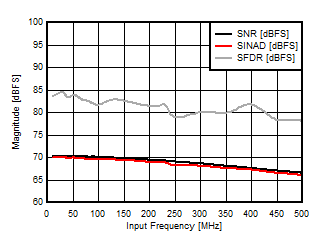

Figure 7. SNR, SINAD, SFDR vs Input Frequency
ADC31JB68 D003_SLASE60.gif
Input Frequency = 210 MHz
Figure 9. SNR, SINAD, SFDR vs Sampling Rate (FS)
ADC31JB68 D041_SLASE60.gif
Input Frequency = 210 MHz
Figure 11. SNR, SINAD, SFDR vs VA1.8 Supply
ADC31JB68 D005_SLASE60.gif
Input Frequency = 210 MHz
Figure 13. SNR, SINAD, SFDR vs Temperature

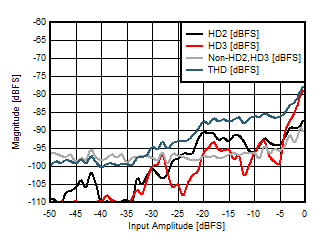

ADC31JB68 D008_SLASE60.gif
Input Frequency = 210 MHz
Figure 15. HD2, HD3, SPUR, THD vs Input Amplitude
ADC31JB68 D011_SLASE60.gif
Input Frequency = 210 MHz

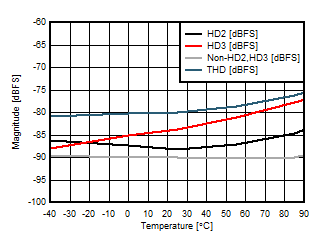

Figure 17. HD2, HD3, SPUR, THD vs Temperature
ADC31JB68 D021_SLASE60.gif
Figure 19. Output Spectrum, 1-Tone Test at 210 MHz
ADC31JB68 D023_SLASE60.gif
Input Amplitude = –7 dBFS/Tone
Figure 21. Output Spectrum, 2-Tone Test at 200 MHz and 210 MHz

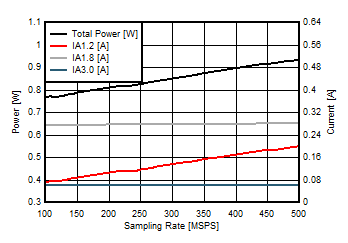

ADC31JB68 D026_SLASE60.gif
Figure 23. Supply Power and Current vs Sampling Rate
ADC31JB68 ADC31JB68_TXeye_18in_VOD7_DEM6_slase60.png
5-mil. FR4 Microstrip Trace at 5 Gb/s with Optimized De-Emphasis
Figure 25. Transmitted Eye at Output of 18-Inch
