Typical Characteristics

VIN = 12 V, VOUT = 1.0 V, Ta = 25 °C, unless otherwise specified.
TPS56C20 TPS56920 TPS56720 TPS56520 C003_SLVSCB6.png

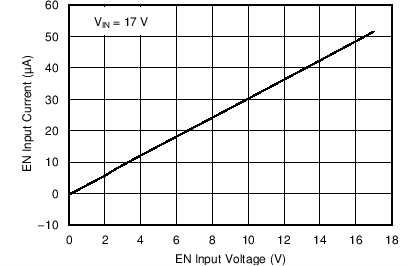

Figure 2. TPS56X20 Enable Input Current
TPS56C20 TPS56920 TPS56720 TPS56520 C002_SLVSCB6.png
Figure 4. TPS56520 Shutdown Quiescent Current

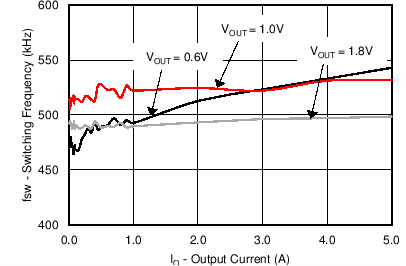

TPS56C20 TPS56920 TPS56720 TPS56520 C005_SLVSCB6.png
Figure 6. TPS56520 Switching Frequency,
Eco-mode™ = OFF
TPS56C20 TPS56920 TPS56720 TPS56520 C007_SLVSCB6.png

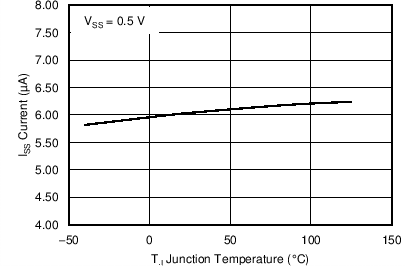

Figure 8. TPS56520 Soft Start Charging Current
TPS56C20 TPS56920 TPS56720 TPS56520 C009_SLVSCB6.png
Figure 10. TPS56720 Shutdown Quiescent Current
TPS56C20 TPS56920 TPS56720 TPS56520 C012_SLVSCB6.png

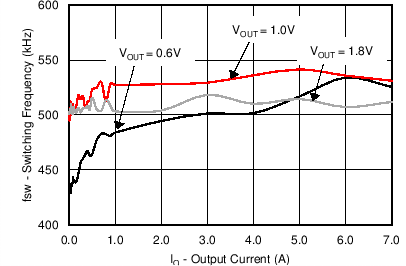

Figure 12. TPS56720 Switching Frequency,
Eco-mode™ = OFF
TPS56C20 TPS56920 TPS56720 TPS56520 C014_SLVSCB6.png

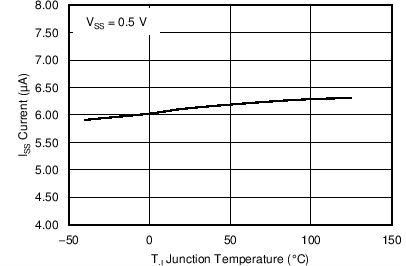

Figure 14. TPS56720 Soft Start Charging Current
TPS56C20 TPS56920 TPS56720 TPS56520 C016_SLVSCB6.png

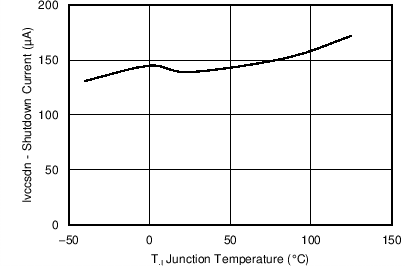

Figure 16. TPS56920 Shutdown Quiescent Current
TPS56C20 TPS56920 TPS56720 TPS56520 C019_SLVSCB6.png
Figure 18. TPS56920 Switching Frequency,
Eco-mode™ = OFF
TPS56C20 TPS56920 TPS56720 TPS56520 C021_SLVSCB6.png
Figure 20. TPS56920 Soft Start Charging Current
TPS56C20 TPS56920 TPS56720 TPS56520 C023_SLVSCB6.png
Figure 22. TPS56C20 Shutdown Quiescent Current
TPS56C20 TPS56920 TPS56720 TPS56520 C026_SLVSCB6.png
Figure 24. TPS56C20 Switching Frequency,
Eco-mode™ = OFF
TPS56C20 TPS56920 TPS56720 TPS56520 C028_SLVSCB6.png

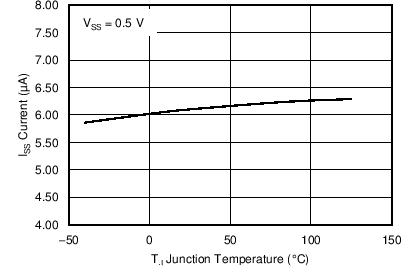

Figure 26. TPS56C20 Soft Start Charging Current
TPS56C20 TPS56920 TPS56720 TPS56520 C001_SLVSCB6.png

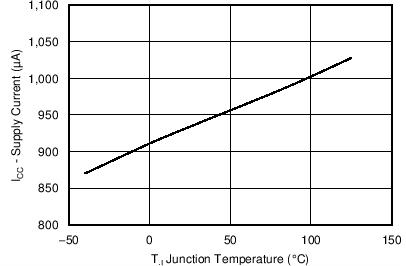

Figure 3. TPS56520 Quiescent Current
TPS56C20 TPS56920 TPS56720 TPS56520 C004_SLVSCB6.png

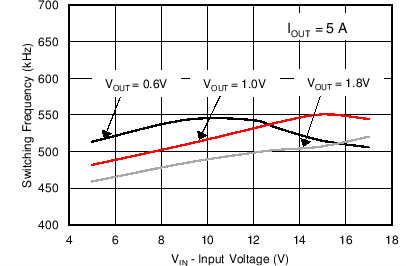

Figure 5. TPS56520 Switching Frequency
TPS56C20 TPS56920 TPS56720 TPS56520 C006_SLVSCB6.png

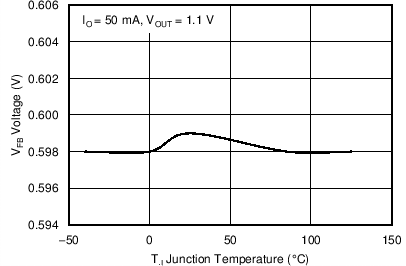

Figure 7. TPS56520 Feedback Voltage

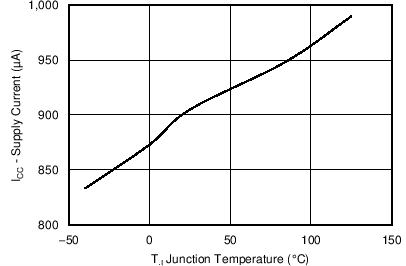

TPS56C20 TPS56920 TPS56720 TPS56520 C008_SLVSCB6.png
Figure 9. TPS56720 Quiescent Current
TPS56C20 TPS56920 TPS56720 TPS56520 C011_SLVSCB6.png
Figure 11. TPS56720 Switching Frequency

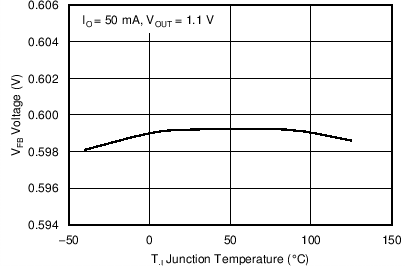

TPS56C20 TPS56920 TPS56720 TPS56520 C013_SLVSCB6.png
Figure 13. TPS56720 Feedback Voltage

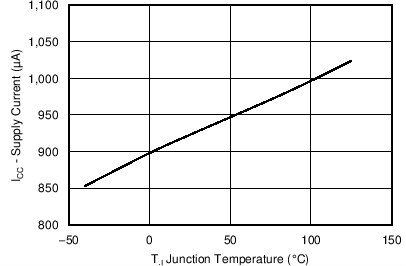

TPS56C20 TPS56920 TPS56720 TPS56520 C015_SLVSCB6.png
Figure 15. TPS56920 Quiescent Current

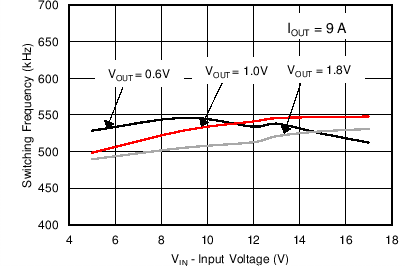

TPS56C20 TPS56920 TPS56720 TPS56520 C018_SLVSCB6.png
Figure 17. TPS56920 Switching Frequency

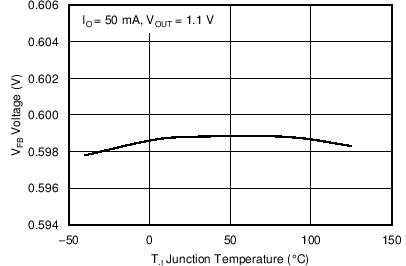

TPS56C20 TPS56920 TPS56720 TPS56520 C020_SLVSCB6.png
Figure 19. TPS56920 Feedback Voltage
TPS56C20 TPS56920 TPS56720 TPS56520 C022_SLVSCB6.png

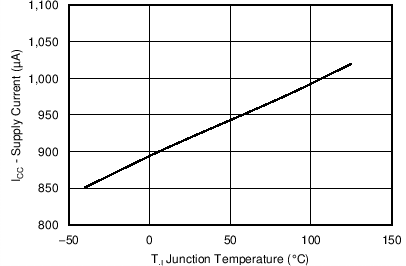

Figure 21. TPS56C20 Quiescent Current

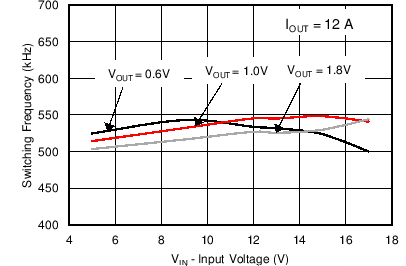

TPS56C20 TPS56920 TPS56720 TPS56520 C025_SLVSCB6.png
Figure 23. TPS56C20 Switching Frequency

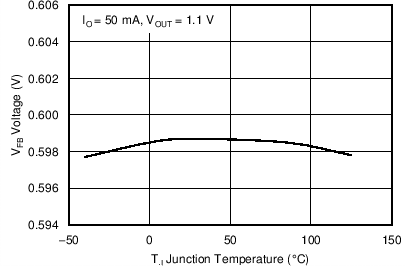

TPS56C20 TPS56920 TPS56720 TPS56520 C027_SLVSCB6.png
Figure 25. TPS56C20 Feedback Voltage
