11 Layout

11.1 Layout Guidelines

  • All decoupling capacitors must be located as close as possible to the loads they are supplying.
  • TI recommends large copper fill areas or thick traces wherever possible to provide low inductance current paths between decoupling capacitors and their loads
  • Ensure that there are no vias or discontinuities in the forward or return current paths that can cause the current loop area and therefore the loop inductance to increase.
  • For high-frequency current paths routed across PCB layers, multiple vias can be placed close together (but not obstructing the current path) to lower inductance.

11.2 Layout Example

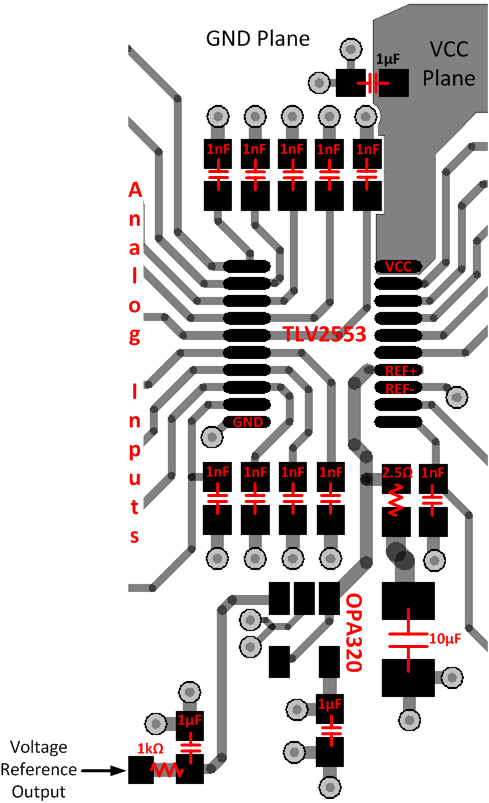

TLV2553 layout_ex_las579.gif Figure 43. Layout Example Schematic
