ZHCSFY4 December   2016 TAS5780M

PRODUCTION DATA.

  1. 1 特性
  2. 2 应用
  3. 3 说明
  4. 4 修订历史记录
  5. 5 Device Comparison Table
  6. 6 Pin Configuration and Functions
    1. 6.1 Internal Pin Configurations
  7. 7 Specifications
    1. 7.1  Absolute Maximum Ratings
    2. 7.2  ESD Ratings
    3. 7.3  Recommended Operating Conditions
    4. 7.4  Thermal Information
    5. 7.5  Electrical Characteristics
    6. 7.6  Power Dissipation Characteristics
    7. 7.7  MCLK Timing
    8. 7.8  Serial Audio Port Timing - Slave Mode
    9. 7.9  Serial Audio Port Timing - Master Mode
    10. 7.10 I2C Bus Timing - Standard
    11. 7.11 I2C Bus Timing - Fast
    12. 7.12 SPK_MUTE Timing
    13. 7.13 Typical Characteristics
      1. 7.13.1 Bridge Tied Load (BTL) Configuration Curves
      2. 7.13.2 Parallel Bridge Tied Load (PBTL) Configuration
  8. 8 Parametric Measurement Information
  9. 9 Detailed Description
    1. 9.1 Overview
    2. 9.2 Functional Block Diagram
    3. 9.3 Feature Description
      1. 9.3.1 Power-on-Reset (POR) Function
      2. 9.3.2 Device Clocking
      3. 9.3.3 Serial Audio Port
        1. 9.3.3.1 Clock Master Mode from Audio Rate Master Clock
        2. 9.3.3.2 Clock Master from a Non-Audio Rate Master Clock
        3. 9.3.3.3 Clock Slave Mode with 4-Wire Operation (SCLK, MCLK, LRCK/FS, SDIN)
        4. 9.3.3.4 Clock Slave Mode with SCLK PLL to Generate Internal Clocks (3-Wire PCM)
          1. 9.3.3.4.1 Clock Generation using the PLL
          2. 9.3.3.4.2 PLL Calculation
            1. 9.3.3.4.2.1 Examples:
        5. 9.3.3.5 Serial Audio Port - Data Formats and Bit Depths
          1. 9.3.3.5.1 Data Formats and Master/Slave Modes of Operation
        6. 9.3.3.6 Input Signal Sensing (Power-Save Mode)
      4. 9.3.4 Enable Device
        1. 9.3.4.1 Example
      5. 9.3.5 Volume Control
        1. 9.3.5.1 DAC Digital Gain Control
          1. 9.3.5.1.1 Emergency Volume Ramp Down
      6. 9.3.6 Adjustable Amplifier Gain and Switching Frequency Selection
      7. 9.3.7 Error Handling and Protection Suite
        1. 9.3.7.1 Device Overtemperature Protection
        2. 9.3.7.2 SPK_OUTxx Overcurrent Protection
        3. 9.3.7.3 Internal VAVDD Undervoltage-Error Protection
        4. 9.3.7.4 Internal VPVDD Undervoltage-Error Protection
        5. 9.3.7.5 Internal VPVDD Overvoltage-Error Protection
        6. 9.3.7.6 External Undervoltage-Error Protection
        7. 9.3.7.7 Internal Clock Error Notification (CLKE)
      8. 9.3.8 GPIO Port and Hardware Control Pins
      9. 9.3.9 I2C Communication Port
        1. 9.3.9.1 Slave Address
        2. 9.3.9.2 Register Address Auto-Increment Mode
        3. 9.3.9.3 Packet Protocol
        4. 9.3.9.4 Write Register
        5. 9.3.9.5 Read Register
        6. 9.3.9.6 DSP Book, Page, and Register Update
          1. 9.3.9.6.1 Book and Page Change
          2. 9.3.9.6.2 Swap Flag
          3. 9.3.9.6.3 Example Use
    4. 9.4 Device Functional Modes
      1. 9.4.1 Serial Audio Port Operating Modes
      2. 9.4.2 Communication Port Operating Modes
      3. 9.4.3 Speaker Amplifier Operating Modes
        1. 9.4.3.1 Stereo Mode
        2. 9.4.3.2 Mono Mode
        3. 9.4.3.3 Master and Slave Mode Clocking for Digital Serial Audio Port
    5. 9.5 Programming
      1. 9.5.1 Audio Processing Features
      2. 9.5.2 Processing Block Description
        1. 9.5.2.1  Input Scale and Mixer
          1. 9.5.2.1.1 Example
        2. 9.5.2.2  Sample Rate Converter
        3. 9.5.2.3  Parametric Equalizers (PEQ)
        4. 9.5.2.4  BQ Gain Scale
        5. 9.5.2.5  Dynamic Parametric Equalizer (DPEQ)
        6. 9.5.2.6  Two-Band Dynamic Range Control
        7. 9.5.2.7  Automatic Gain Limiter
          1. 9.5.2.7.1 Softening Filter Alpha (AEA)
          2. 9.5.2.7.2 Softening Filter Omega (AEO)
          3. 9.5.2.7.3 Attack Rate
          4. 9.5.2.7.4 Release Rate
          5. 9.5.2.7.5 Attack Threshold
        8. 9.5.2.8  Fine Volume
        9. 9.5.2.9  THD Boost
        10. 9.5.2.10 Level Meter
      3. 9.5.3 Other Processing Block Features
        1. 9.5.3.1 Number Format
          1. 9.5.3.1.1 Coefficient Format Conversion
      4. 9.5.4 Checksum
        1. 9.5.4.1 Cyclic Redundancy Check (CRC) Checksum
        2. 9.5.4.2 Exclusive or (XOR) Checksum
  10. 10Application and Implementation
    1. 10.1 Application Information
      1. 10.1.1 External Component Selection Criteria
      2. 10.1.2 Component Selection Impact on Board Layout, Component Placement, and Trace Routing
      3. 10.1.3 Amplifier Output Filtering
      4. 10.1.4 Programming the TAS5780M
        1. 10.1.4.1 Resetting the TAS5780M Registers and Modules
    2. 10.2 Typical Applications
      1. 10.2.1 2.0 (Stereo BTL) System
        1. 10.2.1.1 Design Requirements
        2. 10.2.1.2 Detailed Design Procedure
          1. 10.2.1.2.1 Step One: Hardware Integration
          2. 10.2.1.2.2 Step Two: System Level Tuning
          3. 10.2.1.2.3 Step Three: Software Integration
        3. 10.2.1.3 Application Curves
      2. 10.2.2 Mono (PBTL) Systems
        1. 10.2.2.1 Design Requirements
        2. 10.2.2.2 Detailed Design Procedure
          1. 10.2.2.2.1 Step One: Hardware Integration
          2. 10.2.2.2.2 Step Two: System Level Tuning
          3. 10.2.2.2.3 Step Three: Software Integration
        3. 10.2.2.3 Application Specific Performance Plots for Mono (PBTL) Systems
      3. 10.2.3 2.1 (Stereo BTL + External Mono Amplifier) Systems
        1. 10.2.3.1 Advanced 2.1 System (Two TAS5780M devices)
        2. 10.2.3.2 Design Requirements
        3. 10.2.3.3 Application Specific Performance Plots for 2.1 (Stereo BTL + External Mono Amplifier) Systems
  11. 11Power Supply Recommendations
    1. 11.1 Power Supplies
      1. 11.1.1 DVDD Supply
      2. 11.1.2 PVDD Supply
  12. 12Layout
    1. 12.1 Layout Guidelines
      1. 12.1.1 General Guidelines for Audio Amplifiers
      2. 12.1.2 Importance of PVDD Bypass Capacitor Placement on PVDD Network
      3. 12.1.3 Optimizing Thermal Performance
        1. 12.1.3.1 Device, Copper, and Component Layout
        2. 12.1.3.2 Stencil Pattern
          1. 12.1.3.2.1 PCB footprint and Via Arrangement
            1. 12.1.3.2.1.1 Solder Stencil
    2. 12.2 Layout Example
      1. 12.2.1 2.0 (Stereo BTL) System
      2. 12.2.2 Mono (PBTL) System
      3. 12.2.3 2.1 (Stereo BTL + Mono PBTL) Systems
  13. 13Register Maps
    1. 13.1 Registers - Page 0
      1. 13.1.1   Register 1 (0x01)
      2. 13.1.2   Register 2 (0x02)
      3. 13.1.3   Register 3 (0x03)
      4. 13.1.4   Register 4 (0x04)
      5. 13.1.5   Register 5 (0x05)
      6. 13.1.6   Register 6 (0x06)
      7. 13.1.7   Register 7 (0x07)
      8. 13.1.8   Register 8 (0x08)
      9. 13.1.9   Register 9 (0x09)
      10. 13.1.10  Register 10 (0x0A)
      11. 13.1.11  Register 12 (0x0C)
      12. 13.1.12  Register 13 (0x0D)
      13. 13.1.13  Register 14 (0x0E)
      14. 13.1.14  Register 15 (0x0F)
      15. 13.1.15  Register 16 (0x10)
      16. 13.1.16  Register 17 (0x11)
      17. 13.1.17  Register 18 (0x12)
      18. 13.1.18  Register 19 (0x13)
      19. 13.1.19  Register 20 (0x14)
      20. 13.1.20  Register 21 (0x15)
      21. 13.1.21  Register 22 (0x16)
      22. 13.1.22  Register 23 (0x17)
      23. 13.1.23  Register 24 (0x18)
      24. 13.1.24  Register 25 (0x19)
      25. 13.1.25  Register 26 (0x1A)
      26. 13.1.26  Register 27 (0x1B)
      27. 13.1.27  Register 28 (0x1C)
      28. 13.1.28  Register 29 (0x1D)
      29. 13.1.29  Register 30 (0x1E)
      30. 13.1.30  Register 31 (0x1F)
      31. 13.1.31  Register 32 (0x20)
      32. 13.1.32  Register 33 (0x21)
      33. 13.1.33  Register 34 (0x22)
      34. 13.1.34  Register 35 (0x23)
      35. 13.1.35  Register 37 (0x25)
      36. 13.1.36  Register 38 (0x26)
      37. 13.1.37  Register 39 (0x27)
      38. 13.1.38  Register 40 (0x28)
      39. 13.1.39  Register 41 (0x29)
      40. 13.1.40  Register 42 (0x2A)
      41. 13.1.41  Register 43 (0x2B)
      42. 13.1.42  Register 44 (0x2C)
      43. 13.1.43  Register 45 (0x2D)
      44. 13.1.44  Register 46 (0x2E)
      45. 13.1.45  Register 47 (0x2F)
      46. 13.1.46  Register 48 (0x30)
      47. 13.1.47  Register 49 (0x31)
      48. 13.1.48  Register 50 (0x32)
      49. 13.1.49  Register 51 (0x33)
      50. 13.1.50  Register 52 (0x34)
      51. 13.1.51  Register 53 (0x35)
      52. 13.1.52  Register 59 (0x3B)
      53. 13.1.53  Register 60 (0x3C)
      54. 13.1.54  Register 61 (0x3D)
      55. 13.1.55  Register 62 (0x3E)
      56. 13.1.56  Register 63 (0x3F)
      57. 13.1.57  Register 64 (0x40)
      58. 13.1.58  Register 65 (0x41)
      59. 13.1.59  Register 66 (0x42)
      60. 13.1.60  Register 67 (0x43)
      61. 13.1.61  Register 68 (0x44)
      62. 13.1.62  Register 69 (0x45)
      63. 13.1.63  Register 70 (0x46)
      64. 13.1.64  Register 71 (0x47)
      65. 13.1.65  Register 72 (0x48)
      66. 13.1.66  Register 73 (0x49)
      67. 13.1.67  Register 74 (0x4A)
      68. 13.1.68  Register 75 (0x4B)
      69. 13.1.69  Register 76 (0x4C)
      70. 13.1.70  Register 78 (0x4E)
      71. 13.1.71  Register 79 (0x4F)
      72. 13.1.72  Register 80 (0x50)
      73. 13.1.73  Register 81 (0x51)
      74. 13.1.74  Register 82 (0x52)
      75. 13.1.75  Register 83 (0x53)
      76. 13.1.76  Register 84 (0x54)
      77. 13.1.77  Register 85 (0x55)
      78. 13.1.78  Register 86 (0x56)
      79. 13.1.79  Register 87 (0x57)
      80. 13.1.80  Register 88 (0x58)
      81. 13.1.81  Register 89 (0x59)
      82. 13.1.82  Register 91 (0x5B)
      83. 13.1.83  Register 92 (0x5C)
      84. 13.1.84  Register 93 (0x5D)
      85. 13.1.85  Register 94 (0x5E)
      86. 13.1.86  Register 95 (0x5F)
      87. 13.1.87  Register 96 (0x60)
      88. 13.1.88  Register 97 (0x61)
      89. 13.1.89  Register 98 (0x62)
      90. 13.1.90  Register 99 (0x63)
      91. 13.1.91  Register 100 (0x64)
      92. 13.1.92  Register 101 (0x65)
      93. 13.1.93  Register 102 (0x66)
      94. 13.1.94  Register 103 (0x67)
      95. 13.1.95  Register 104 (0x68)
      96. 13.1.96  Register 105 (0x69)
      97. 13.1.97  Register 106 (0x6A)
      98. 13.1.98  Register 107 (0x6B)
      99. 13.1.99  Register 108 (0x6C)
      100. 13.1.100 Register 109 (0x6D)
      101. 13.1.101 Register 110 (0x6E)
      102. 13.1.102 Register 111 (0x6F)
      103. 13.1.103 Register 112 (0x70)
      104. 13.1.104 Register 113 (0x71)
      105. 13.1.105 Register 114 (0x72)
      106. 13.1.106 Register 115 (0x73)
      107. 13.1.107 Register 118 (0x76)
      108. 13.1.108 Register 119 (0x77)
      109. 13.1.109 Register 120 (0x78)
      110. 13.1.110 Register 121 (0x79)
    2. 13.2 Registers - Page 1
      1. 13.2.1  Register 1 (0x01)
      2. 13.2.2  Register 2 (0x02)
      3. 13.2.3  Register 3 (0x03)
      4. 13.2.4  Register 4 (0x04)
      5. 13.2.5  Register 5 (0x05)
      6. 13.2.6  Register 6 (0x06)
      7. 13.2.7  Register 7 (0x07)
      8. 13.2.8  Register 8 (0x08)
      9. 13.2.9  Register 9 (0x09)
      10. 13.2.10 Register 10 (0x0A)
      11. 13.2.11 Register 11 (0x0B)
      12. 13.2.12 Register 12 (0x0C)
      13. 13.2.13 Register 13 (0x0D)
      14. 13.2.14 Register 14 (0x0E)
      15. 13.2.15 Register 15 (0x0F)
    3. 13.3 Registers - Page 253
      1. 13.3.1  Register 1 (0x01)
      2. 13.3.2  Register 2 (0x02)
      3. 13.3.3  Register 3 (0x03)
      4. 13.3.4  Register 4 (0x04)
      5. 13.3.5  Register 5 (0x05)
      6. 13.3.6  Register 6 (0x06)
      7. 13.3.7  Register 7 (0x07)
      8. 13.3.8  Register 8 (0x08)
      9. 13.3.9  Register 9 (0x09)
      10. 13.3.10 Register 10 (0x0A)
      11. 13.3.11 Register 11 (0x0B)
      12. 13.3.12 Register 12 (0x0C)
      13. 13.3.13 Register 13 (0x0D)
      14. 13.3.14 Register 14 (0x0E)
      15. 13.3.15 Register 15 (0x0F)
      16. 13.3.16 Register 16 (0x10)
      17. 13.3.17 Register 17 (0x11)
      18. 13.3.18 Register 18 (0x12)
      19. 13.3.19 Register 19 (0x13)
      20. 13.3.20 Register 20 (0x14)
      21. 13.3.21 Register 21 (0x15)
      22. 13.3.22 Register 2 (0x16)
      23. 13.3.23 Register 23 (0x17)
      24. 13.3.24 Register 24 (0x18)
      25. 13.3.25 Register 25 (0x19)
      26. 13.3.26 Register 26 (0x1A)
      27. 13.3.27 Register 27 (0x1B)
      28. 13.3.28 Register 28 (0x1C)
      29. 13.3.29 Register 29 (0x1D)
      30. 13.3.30 Register 30 (0x1E)
      31. 13.3.31 Register 31 (0x1F)
      32. 13.3.32 Register 32 (0x20)
      33. 13.3.33 Register 33 (0x21)
      34. 13.3.34 Register 34 (0x22)
      35. 13.3.35 Register 35 (0x23)
      36. 13.3.36 Register 36 (0x24)
      37. 13.3.37 Register 37 (0x25)
      38. 13.3.38 Register 38 (0x26)
      39. 13.3.39 Register 39 (0x27)
      40. 13.3.40 Register 40 (0x28)
      41. 13.3.41 Register 41 (0x29)
      42. 13.3.42 Register 42 (0x2A)
      43. 13.3.43 Register 43 (0x2B)
      44. 13.3.44 Register 44 (0x2C)
      45. 13.3.45 Register 63 (0x3F)
      46. 13.3.46 Register 64 (0x40)
      47. 13.3.47 Register 65 (0x41)
      48. 13.3.48 Register 70 (0x46)
      49. 13.3.49 Register 71 (0x47)
      50. 13.3.50 Register 72 (0x48)
      51. 13.3.51 Register 73 (0x49)
      52. 13.3.52 Register 74 (0x4A)
      53. 13.3.53 Register 75 (0x4B)
      54. 13.3.54 Register 76 (0x4C)
      55. 13.3.55 Register 77 (0x4D)
      56. 13.3.56 Register 78 (0x4E)
      57. 13.3.57 Register 79 (0x4F)
      58. 13.3.58 Register 80 (0x50)
      59. 13.3.59 Register 81 (0x51)
      60. 13.3.60 Register 82 (0x52)
      61. 13.3.61 Register 83 (0x53)
      62. 13.3.62 Register 84 (0x54)
      63. 13.3.63 Register 85 (0x55)
      64. 13.3.64 Register 86 (0x56)
      65. 13.3.65 Register 87 (0x57)
      66. 13.3.66 Register 88 (0x58)
      67. 13.3.67 Register 89 (0x59)
      68. 13.3.68 Register 90 (0x5A)
      69. 13.3.69 Register 91 (0x5B)
      70. 13.3.70 Register 92 (0x5C)
      71. 13.3.71 Register 93 (0x5D)
    4. 13.4 DSP Memory Map
  14. 14器件和文档支持
    1. 14.1 器件支持
      1. 14.1.1 器件命名规则
      2. 14.1.2 开发支持
    2. 14.2 接收文档更新通知
    3. 14.3 社区资源
    4. 14.4 商标
    5. 14.5 静电放电警告
    6. 14.6 Glossary
  15. 15机械、封装和可订购信息

封装选项

机械数据 (封装 | 引脚)
散热焊盘机械数据 (封装 | 引脚)
订购信息

7 Specifications

7.1 Absolute Maximum Ratings

Free-air room temperature 25°C (unless otherwise noted)(1)
MIN MAX UNIT
DVDD, AVDD, CPVDD Low-voltage digital, analog, charge pump supply –0.3 3.9 V
PVDD PVDD supply –0.3 30 V
VI(AmpCtrl) Input voltage for SPK_GAIN/FREQ and SPK_FAULT pins –0.3 VGVDD + 0.3 V
VI(DigIn) DVDD referenced digital inputs(2) –0.5 VDVDD + 0.5 V
VI(SPK_INxx) Analog input into speaker amplifier –0.3 6.3 V
VI(SPK_OUTxx) Voltage at speaker output pins –0.3 32 V
Ambient operating temperature, TA –25 85 °C
TJ Operating junction temperature, digital die –40 125 °C
Operating junction temperature, power die –40 165 °C
Tstg Storage temperature –40 125 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) DVDD referenced digital pins include: ADR0, ADR1, GPIO0, GPIO2, LRCK/FS, MCLK, RESET, SCL, SCLK, SDA, SDIN, and SPK_MUTE.

7.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500
(1) JEDEC document JEP155 states that 2000-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 500-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

Free-air room temperature 25°C (unless otherwise noted)
MIN NOM MAX UNIT
V(POWER) Power supply inputs DVDD, AVDD, CPVDD 2.9 3.63 V
PVDD 4.5 26.4
RSPK Minimum speaker load BTL Mode 3 Ω
PBTL Mode 2 Ω
VIH(DigIn) Input logic high for DVDD referenced digital inputs(2)(1) 0.9 × VDVDD VDVDD V
VIL(DigIn) Input logic low for DVDD referenced digital inputs(2)(2) VDVDD 0 0.1 × VDVDD V
LOUT Minimum inductor value in LC filter under short-circuit condition 1 4.7 µH
(1) The best practice for driving the input pins of the TAS5780M device is to power the drive circuit or pullup resistor from the same supply which provides the DVDD power supply.
(2) The best practice for driving the input pins of the TAS5780M device low is to pull them down, either actively or through pulldown resistors to the system ground.

7.4 Thermal Information

THERMAL METRIC(1) TAS5780M
DCA (TSSOP)
48 PINS 		UNIT
JEDEC
STANDARD
2-LAYER PCB		 JEDEC
STANDARD
4-LAYER PCB		 TAS5780MEVM
4-LAYER PCB
RθJA Junction-to-ambient thermal resistance 41.8 27.6 19.4 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 14.4 14.4 14.4 °C/W
RθJB Junction-to-board thermal resistance 9.4 9.4 9.4 °C/W
ψJT Junction-to-top characterization parameter 0.6 0.6 2 °C/W
ψJB Junction-to-board characterization parameter 8.1 9.3 4.8 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A N/A N/A °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

7.5 Electrical Characteristics

Free-air room temperature 25°C (unless otherwise noted) Measurements were made using TAS5780MEVM board and Audio Precision System 2722 with Analog Analyzer filter set to 40 kHz brickwall filter. The device output PWM frequency was set to 768 kHz unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
DIGITAL I/O
|IIH|1 Input logic high current level for DVDD referenced digital input pins(2) VIN(DigIn) = VDVDD 10 µA
|IIL|1 Input logic low current level for DVDD referenced digital input pins(2) VIN(DigIn) = 0 V –10 µA
VIH1 Input logic high threshold for DVDD referenced digital inputs(2) 70% VDVDD
VIL1 Input logic low threshold for DVDD referenced digital inputs(2) 30% VDVDD
VOH(DigOut) Output logic high voltage level(2) IOH = 4 mA 80% VDVDD
VOL(DigOut) Output logic low voltage level(2) IOH = –4 mA 22% VDVDD
VOL(SPK_FAULT) Output logic low voltage level for SPK_FAULT With 100-kΩ pullup resistor 0.8 V
GVDD_REG GVDD regulator voltage 7 V
I2C CONTROL PORT
CL(I2C) Allowable load capacitance for each I2C Line 400 pF
fSCL(fast) Support SCL frequency No wait states, fast mode 400 kHz
fSCL(slow) Support SCL frequency No wait states, slow mode 100 kHz
VNH Noise margin at High level for each connected device (including hysteresis) 0.2 × VDD V
MCLK AND PLL SPECIFICATIONS
DMCLK Allowable MCLK duty cycle 40% 60%
fMCLK Supported MCLK frequencies Up to 50 MHz 128 512 fS(1)
fPLL PLL input frequency Clock divider uses fractional divide
D > 0, P = 1		 6.7 20 MHz
Clock divider uses integer divide
D = 0, P = 1		 1 20
SERIAL AUDIO PORT
tDLY Required LRCK/FS to SCLK rising edge delay 5 ns
DSCLK Allowable SCLK duty cycle 40% 60%
fS Supported input sample rates 8 96 kHz
fSCLK Supported SCLK frequencies 32 64 fS(1)
fSCLK SCLK frequency Either master mode or slave mode 24.576 MHz
SPEAKER AMPLIFIER (ALL OUTPUT CONFIGURATIONS)
AV(SPK_AMP) Speaker amplifier gain SPK_GAIN/FREQ voltage < 3 V,
see Adjustable Amplifier Gain and Switching Frequency Selection		 20 dBV
SPK_GAIN/FREQ voltage > 3.3 V,
see Adjustable Amplifier Gain and Switching Frequency Selection		 26
ΔAV(SPK_AMP) Typical variation of speaker amplifier gain ±1 dBV
fSPK_AMP Switching frequency of the speaker amplifier Switching frequency depends on voltage presented at SPK_GAIN/FREQ pin and the clocking arrangement, including the incoming sample rate, see Adjustable Amplifier Gain and Switching Frequency Selection 176.4 768 kHz
KSVR Power supply rejection ratio Injected Noise = 50 Hz to 60 Hz, 200 mVP-P, Gain = 26 dB, input audio signal = digital zero 60 dB
rDS(on) Drain-to-source on resistance of the individual output MOSFETs VPVDD = 24 V, I(SPK_OUT) = 500 mA, TJ = 25°C, includes PVDD/PGND pins, leadframe, bondwires and metallization layers. 120 mΩ
VPVDD = 24 V, I(SPK_OUT) = 500 mA, TJ = 25°C 90
OCETHRES SPK_OUTxx overcurrent error threshold 7.5 A
OTETHRES Overtemperature error threshold 165 °C
OCECLRTIME Time required to clear overcurrent error after error condition is removed. 1.3 s
OTECLRTIME Time required to clear overtemperature error after error condition is removed. 1.3 s
OVETHRES(PVDD) PVDD overvoltage error threshold 27 V
UVETHRES(PVDD) PVDD undervoltage error threshold 4.3 V
SPEAKER AMPLIFIER (STEREO BTL)
|VOS| Amplifier offset voltage Measured differentially with zero input data, SPK_GAIN/FREQ pin configured for 20 dB gain, VPVDD = 12 V 2 mV
Measured differentially with zero input data, SPK_GAIN/FREQ pin configured for 26 dB gain, VPVDD = 24 V 5 15

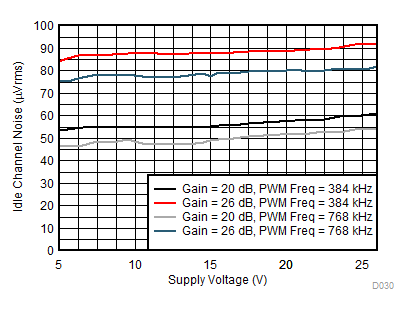

ICN(SPK) Idle channel noise VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 8 Ω, A-Weighted 49 µVRMS
VPVDD = 15 V, SPK_GAIN = 20 dB, RSPK = 8 Ω, A-Weighted 59
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, A-Weighted 81
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, A-Weighted 82
PO(SPK) Output Power (Per Channel) VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 4 Ω, THD+N = 0.1% 14 W
VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 8 Ω, THD+N = 0.1% 8
VPVDD = 15 V, SPK_GAIN = 26 dB, RSPK = 4 Ω, THD+N = 0.1% 23
VPVDD = 15 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, THD+N = 0.1% 13
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 4 Ω, THD+N = 0.1% 34
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, THD+N = 0.1% 20
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 4 Ω, THD+N = 0.1% 40
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, THD+N = 0.1% 33
SNR Signal-to-noise ratio (referenced to 0 dBFS input signal) VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 8 Ω, A-Weighted, –120 dBFS Input 103 dB
VPVDD = 15 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, A-Weighted, –120 dBFS Input 102
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, A-Weighted, –120 dBFS Input 103
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, A-Weighted, –120 dBFS Input 105

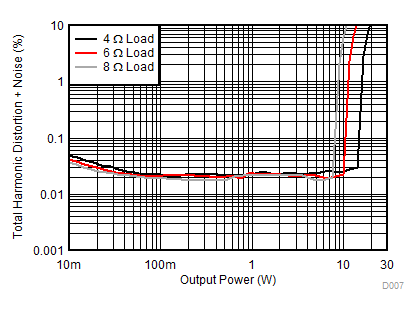

THD+NSPK Total harmonic distortion and noise VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 4 Ω, PO = 1 W, f = 1kHz 0.021%
VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 8 Ω, PO = 1 W, f = 1kHz 0.022%
VPVDD = 15 V, SPK_GAIN = 26 dB, RSPK = 4 Ω, PO = 1 W, f = 1kHz 0.02%
VPVDD = 15 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, PO = 1 W, f = 1kHz 0.037%
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 4 Ω, PO = 1 W, f = 1kHz 0021%
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, PO = 1 W, f = 1kHz 0.028%
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 4 Ω, PO = 1 W, f = 1kHz 0.027%
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, PO = 1 W, f = 1kHz 0.038%

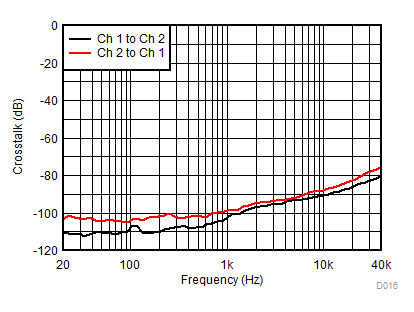

X-talkSPK Cross-talk (worst case between left-to-right and right-to-left coupling) VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 8 Ω, Input Signal 250 mVrms,
1-kHz Sine, across f(S)		 –90 dB
VPVDD = 15 V, SPK_GAIN = 26 dBV, RSPK = 8 Ω, Input Signal 250 mVrms,
1-kHz Sine, across f(S)		 –102
VPVDD = 19 V, SPK_GAIN = 26 dBV, RSPK = 8 Ω, Input Signal 250 mVrms,
1-kHz Sine, across f(S)		 –93
VPVDD = 24 V, SPK_GAIN = 26 dBV, RSPK = 8 Ω, Input Signal 250 mVrms,
1-kHz Sine, across f(S)		 –93
SPEAKER AMPLIFIER (MONO PBTL)
|VOS| Amplifier offset voltage Measured differentially with zero input data, SPK_GAIN/FREQ pin configured for 20 dB gain, VPVDD = 12 V 0.7 mV
Measured differentially with zero input data, SPK_GAIN/FREQ pin configured for 26 dB gain, VPVDD = 24 V 4

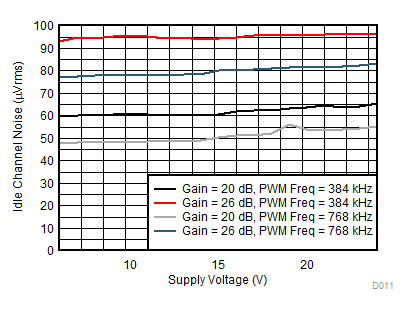

ICN Idle channel noise VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 8 Ω, A-Weighted 48 µVRMS
VPVDD = 15 V, SPK_GAIN = 20 dB, RSPK = 8 Ω, A-Weighted 49
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, A-Weighted 83
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, A-Weighted 82

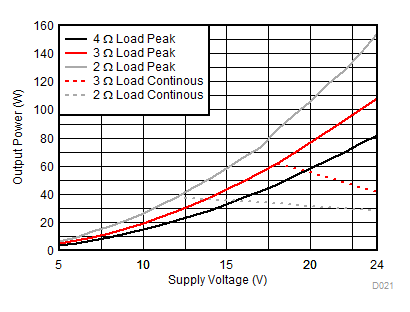

PO Output power (per channel) VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 2 Ω, THD+N = 0.1%, Unless otherwise noted 30 W
VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 4 Ω, THD+N = 0.1%, Unless otherwise noted 16
VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 8 Ω, THD+N = 0.1% 9
VPVDD = 15 V, SPK_GAIN = 26 dB, RSPK = 2 Ω, THD+N = 0.1%, Unless otherwise noted 44
VPVDD = 15 V, SPK_GAIN = 26 dB, RSPK = 4 Ω, THD+N = 0.1%, Unless otherwise noted 22
VPVDD = 15 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, THD+N = 0.1% 13
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 2 Ω, THD+N = 0.1%, Unless otherwise noted 50
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 4 Ω, THD+N = 0.1%, Unless otherwise noted 36
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, THD+N = 0.1% 20
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 2 Ω, THD+N = 0.1%, Unless otherwise noted 40
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 4 Ω, THD+N = 0.1%, Unless otherwise noted 61
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, THD+N = 0.1% 34
SNR Signal-to-noise ratio
(referenced to 0 dBFS input signal)		 VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 8 Ω, A-Weighted, –120 dBFS Input 105 dB
VPVDD = 15 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, A-Weighted, –120 dBFS Input 104
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, A-Weighted, –120 dBFS Input 105
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, A-Weighted, –120 dBFS Input 107
THD+N Total harmonic distortion and noise VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 2 Ω, PO = 1 W, f = 1kHz 0.014%
VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 4 Ω, PO = 1 W, f = 1kHz 0.011%
VPVDD = 12 V, SPK_GAIN = 20 dB, RSPK = 8 Ω, PO = 1 W, f = 1kHz 0.014%
VPVDD = 15 V, SPK_GAIN = 26 dB, RSPK = 2 Ω, PO = 1 W, f = 1kHz 0.015%
VPVDD = 15 V, SPK_GAIN = 26 dB, RSPK = 4 Ω, PO = 1 W, f = 1kHz 0.013%
VPVDD = 15 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, PO = 1 W, f = 1kHz 0.015%
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 2 Ω, PO = 1 W, f = 1kHz 0.018%
V, RSPK = 4 Ω, PO = 1 W, f = 1kHz 0.012%
VPVDD = 19 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, PO = 1 W, f = 1kHz 0.020%
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 2 Ω, PO = 1 W, f = 1kHz 0.028%
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 4 Ω, PO = 1 W, f = 1kHz 0.02%
VPVDD = 24 V, SPK_GAIN = 26 dB, RSPK = 8 Ω, PO = 1 W, f = 1kHz 0.027%
(1) A unit of fS indicates that the specification is the value listed in the table multiplied by the sample rate of the audio used in the TAS5780M device.
(2) DVDD referenced digital pins include: ADR0, ADR1, GPIO0, GPIO2, LRCK/FS, MCLK,RESET, SCL, SCLK, SDA, SDIN, and SPK_MUTE.

7.6 Power Dissipation Characteristics

Free-air room temperature 25°C (unless otherwise noted)
VPVDD
(V)		 SPK_GAIN(1)(2)(3)
(dBV) 		fSPK_AMP
(kHz)		 STATE OF
OPERATION 		RSPK
(Ω)		 IPVDD(4)
(mA)
IDVDD(5)
(mA)
PDISS
(W)
7.4 20 384 Idle 4 21.30 59.70 0.355
6 21.33 59.68 0.355
8 21.30 59.70 0.355
Mute 4 21.33 58.82 0.352
6 21.34 58.81 0.352
8 21.36 58.81 0.352
Standby 4 2.08 12.41 0.056
6 2.11 12.41 0.057
8 2.17 12.41 0.057
Powerdown 4 2.03 0.730 0.017
6 2.04 0.740 0.018
8 2.06 0.740 0.018
768 Idle 4 27.48 59.7 0.400
6 27.49 59.73 0.401
8 24.46 59.72 0.378
Mute 4 27.50 58.8 0.398
6 27.51 58.8 0.398
8 27.52 58.81 0.398
Standby 4 2.04 12.41 0.056
6 2.08 12.41 0.056
8 2.11 12.41 0.057
Powerdown 4 2.06 0.73 0.018
6 2.07 0.74 0.018
8 2.08 0.74 0.018
11.1 20 384 Idle 4 24.33 59.74 0.467
6 24.32 59.74 0.467
8 24.36 59.70 0.467
Mute 4 24.36 58.81 0.464
6 24.32 58.82 0.464
8 24.37 58.84 0.465
Standby 4 3.58 12.40 0.081
6 3.57 12.41 0.081
8 3.58 12.42 0.081
Powerdown 4 3.52 0.74 0.042
6 3.52 0.74 0.042
8 3.54 0.74 0.042
768 Idle 4 30.70 59.70 0.538
6 30.65 59.72 0.537
8 30.67 59.71 0.537
Mute 4 3.072 58.80 0.528
6 30.69 58.81 0.535
8 30.69 58.81 0.535
Standby 4 3.54 12.40 0.080
6 3.54 12.41 0.080
8 3.58 12.42 0.081
Powerdown 4 3.53 0.74 0.042
6 3.53 0.74 0.042
8 3.55 0.74 0.042
12 20 384 Idle 4 25.07 59.72 0.498
6 25.08 59.73 0.498
8 25.10 59.71 0.498
Mute 4 25.12 58.84 0.496
6 25.08 58.82 0.495
8 25.11 58.82 0.495
Standby 4 3.92 12.40 0.088
6 3.93 12.41 0.088
8 3.94 12.41 0.088
Powerdown 4 3.87 0.75 0.049
6 3.85 0.74 0.049
8 3.87 0.75 0.049
768 Idle 4 31.31 59.72 0.573
6 31.29 59.71 0.573
8 31.31 59.74 0.573
Mute 4 31.31 58.80 0.570
6 31.33 58.81 0.570
8 31.32 58.81 0.570
Standby 4 3.88 12.40 0.087
6 3.90 12.41 0.088
8 3.91 12.41 0.088
Powerdown 4 3.89 0.75 0.049
6 3.91 0.74 0.049
8 3.88 0.75 0.049
15 26 384 Idle 4 27.94 59.73 0.616
6 27.91 59.75 0.616
8 27.75 59.69 0.613
Mute 4 27.98 58.84 0.614
6 27.94 58.87 0.613
8 27.88 58.85 0.612
Standby 4 5.09 12.41 0.117
6 5.12 12.41 0.118
8 5.19 12.41 0.119
Powerdown 4 5.02 0.74 0.078
6 5.06 0.74 0.078
8 5.14 0.74 0.080
768 Idle 4 33.05 59.7 0.693
6 33.03 59.72 0.693
8 33.08 59.68 0.693
Mute 4 33.03 58.81 0.690
6 33.04 58.81 0.690
8 33.05 58.80 0.690
Standby 4 5.07 12.41 0.117
6 5.09 12.41 0.117
8 5.14 12.41 0.118
Powerdown 4 5.02 0.74 0.078
6 5.04 0.74 0.078
8 5.09 0.74 0.079
19.6 26 384 Idle 4 32.27 59.77 0.830
6 32.19 59.76 0.828
8 32.08 59.75 0.826
Mute 4 32.27 58.85 0.827
6 32.24 58.87 0.826
8 32.22 58.86 0.826
Standby 4 6.95 12.40 0.177
6 6.93 12.42 0.177
8 7.00 12.41 0.178
Powerdown 4 6.89 0.74 0.137
6 6.90 0.74 0.138
8 6.96 0.73 0.139
768 Idle 4 34.99 59.74 0.883
6 34.95 59.74 0.882
8 34.97 59.71 0.882
Mute 4 34.96 58.85 0.879
6 34.98 58.83 0.880
8 34.96 58.81 0.879
Standby 4 6.93 12.40 0.177
6 6.93 12.42 0.177
8 6.98 12.41 0.178
Powerdown 4 6.84 0.74 0.137
6 6.89 0.74 0.137
8 6.90 0.73 0.138
24 26 384 Idle 4 36.93 59.80 1.084
6 36.87 59.81 1.082
8 36.77 59.76 1.080
Mute 4 36.94 58.91 1.081
6 36.89 58.89 1.080
8 36.85 58.90 1.079
Standby 4 8.73 12.40 0.250
6 8.72 12.40 0.250
8 8.71 12.40 0.250
Powerdown 4 8.64 0.74 0.210
6 8.66 0.74 0.210
8 8.69 0.73 0.211
768 Idle 4 36.84 59.73 1.081
6 36.86 59.76 1.082
8 36.83 59.78 1.081
Mute 4 36.85 58.85 1.079
6 36.84 58.84 1.078
8 36.82 58.83 1.078
Standby 4 8.66 12.40 0.249
6 8.68 12.40 0.249
8 8.71 12.40 0.250
Powerdown 4 8.63 0.74 0.210
6 8.64 0.74 0.210
8 8.65 0.73 0.210
(1) Mute: B0-P0-R3-D0,D4 = 1
(2) Standby: B0-P0-R2-D4 = 1
(3) Power down: B0-P0-R2-D0 = 1
(4) IPVDD refers to all current that flows through the PVDD supply for the DUT. Any other current sinks not directly related to the DUT current draw were removed.
(5) IDVDD refers to all current that flows through the DVDD (3.3-V) supply for the DUT. Any other current sinks not directly related to the DUT current draw were removed.

7.7 MCLK Timing

See Figure 18.
MIN NOM MAX UNIT
tMCLK MCLK period 20 1000 ns
tMCLKH MCLK pulse width, high 9 ns
tMCLKL MCLK pulse width, low 9 ns

7.8 Serial Audio Port Timing – Slave Mode

See Figure 19.
MIN NOM MAX UNIT
fSCLK SCLK frequency 1.024 MHz
tSCLK SCLK period 40 ns
tSCLKL SCLK pulse width, low 16 ns
tSCLKH SCLK pulse width, high 16 ns
tSL SCLK rising to LRCK/FS edge 8 ns
tLS LRCK/FS Edge to SCLK rising edge 8 ns
tSU Data setup time, before SCLK rising edge 8 ns
tDH Data hold time, after SCLK rising edge 8 ns
tDFS Data delay time from SCLK falling edge 15 ns

7.9 Serial Audio Port Timing – Master Mode

See Figure 20.
MIN NOM MAX UNIT
tSCLK SCLK period 40 ns
tSCLKL SCLK pulse width, low 16 ns
tSCLKH SCLK pulse width, high 16 ns
tLRD LRCK/FS delay time from to SCLK falling edge –10 20 ns
tSU Data setup time, before SCLK rising edge 8 ns
tDH Data hold time, after SCLK rising edge 8 ns
tDFS Data delay time from SCLK falling edge 15 ns

7.10 I2C Bus Timing – Standard

MIN MAX UNIT
fSCL SCL clock frequency 100 kHz
tBUF Bus free time between a STOP and START condition 4.7 µs
tLOW Low period of the SCL clock 4.7 µs
tHI High period of the SCL clock 4 µs
tRS-SU Setup time for (repeated) START condition 4.7 µs
tS-HD Hold time for (repeated) START condition 4 µs
tD-SU Data setup time 250 ns
tD-HD Data hold time 0 900 ns
tSCL-R Rise time of SCL signal 20 + 0.1CB 1000 ns
tSCL-R1 Rise time of SCL signal after a repeated START condition and after an acknowledge bit 20 + 0.1CB 1000 ns
tSCL-F Fall time of SCL signal 20 + 0.1CB 1000 ns
tSDA-R Rise time of SDA signal 20 + 0.1CB 1000 ns
tSDA-F Fall time of SDA signal 20 + 0.1CB 1000 ns
tP-SU Setup time for STOP condition 4 µs

7.11 I2C Bus Timing – Fast

See Figure 21.
MIN MAX UNIT
fSCL SCL clock frequency 400 kHz
tBUF Bus free time between a STOP and START condition 1.3 µs
tLOW Low period of the SCL clock 1.3 µs
tHI High period of the SCL clock 600 ns
tRS-SU Setup time for (repeated)START condition 600 ns
tRS-HD Hold time for (repeated)START condition 600 ns
tD-SU Data setup time 100 ns
tD-HD Data hold time 0 900 ns
tSCL-R Rise time of SCL signal 20 + 0.1CB 300 ns
tSCL-R1 Rise time of SCL signal after a repeated START condition and after an acknowledge bit 20 + 0.1CB 300 ns
tSCL-F Fall time of SCL signal 20 + 0.1CB 300 ns
tSDA-R Rise time of SDA signal 20 + 0.1CB 300 ns
tSDA-F Fall time of SDA signal 20 + 0.1CB 300 ns
tP-SU Setup time for STOP condition 600 ns
tSP Pulse width of spike suppressed 50 ns

7.12 SPK_MUTE Timing

See Figure 22.
MIN MAX UNIT
tr Rise time 20 ns
tf Fall time 20 ns
TAS5780M mlck_timing_diagram_slas988.gif Figure 18. Timing Requirements for MCLK Input
TAS5780M td_pcm_aud_slv_slas988.gif Figure 19. MCLK Timing Diagram in Slave Mode
TAS5780M td_pcm_aud_mstr_slas988.gif Figure 20. MCLK Timing Diagram in Master Mode
TAS5780M td_reg_rd_slas988.gif Figure 21. I2C Communication Port Timing Diagram
TAS5780M td_xsmt_soft_mute_slas988.gif Figure 22. SPK_MUTE Timing Diagram for Soft Mute Operation via Hardware Pin

7.13 Typical Characteristics

All performance plots were taken using the TAS5780MEVM Board at room temperature, unless otherwise noted. The term "traditional LC filter" refers to the output filter that is present by default on the TAS5780MEVM Board.

Table 1. Quick Reference Table

OUTPUT
CONFIGURATIONS		 PLOT TITLE FIGURE NUMBER
Bridge Tied Load (BTL) Configuration Curves Frequency Response Figure 34
Output Power vs PVDD Figure 23
THD+N vs Frequency, VPVDD = 12 V Figure 24
THD+N vs Frequency, VPVDD = 15 V Figure 25
THD+N vs Frequency, VPVDD = 18 V Figure 26
THD+N vs Frequency, VPVDD = 24 V Figure 27
THD+N vs Power, VPVDD = 12 V Figure 28
THD+N vs Power, VPVDD = 15 V Figure 29
THD+N vs Power, VPVDD = 18 V Figure 30
THD+N vs Power, VPVDD = 24 V Figure 31
Idle Channel Noise vs PVDD Figure 32
Efficiency vs Output Power Figure 33
Efficiency vs Output Power Figure 34
Efficiency vs Output Power Figure 35
Idle Current Draw (Filterless) vs PVDD Figure 36
Crosstalk vs. Frequency Figure 37
PVDD PSRR vs Frequency Figure 38
DVDD PSRR vs Frequency Figure 39
AVDD PSRR vs Frequency Figure 40
CPVDD PSRR vs Frequency Figure 41
Parallel Bridge Tied Load (PBTL) Configuration Output Power vs PVDD Figure 43
THD+N vs Frequency, VPVDD = 12 V Figure 44
THD+N vs Frequency, VPVDD = 15 V Figure 45
THD+N vs Frequency, VPVDD = 18 V Figure 46
THD+N vs Frequency, VPVDD = 24 V Figure 47
THD+N vs Power, VPVDD = 12 V Figure 48
THD+N vs Power, VPVDD = 15 V Figure 49
THD+N vs Power, VPVDD = 18 V Figure 50
THD+N vs Power, VPVDD = 24 V Figure 51
Idle Channel Noise vs PVDD Figure 52
Efficiency vs Output Power Figure 53

7.13.1 Bridge Tied Load (BTL) Configuration Curves

Free-air room temperature 25°C (unless otherwise noted) Measurements were made using TAS5780MEVM board and Audio Precision System 2722 with Analog Analyzer filter set to 40-kHz brickwall filter. All measurements taken with audio frequency set to 1 kHz and device PWM frequency set to 768 kHz, unless otherwise noted. For both the BTL plots and the PBTL plots, the LC filter used was 4.7 µH / 0.68 µF. Return to Quick Reference Table.

TAS5780M D002_SLASED7.gif
AV(SPK_AMP) = 26 dBV
Figure 23. Output Power vs PVDD – BTL
TAS5780M D004_SLASED7.gif
AV(SPK_AMP) = 20 dBV PO = 1 W VPVDD = 15 V
Figure 25. THD+N vs Frequency – BTL

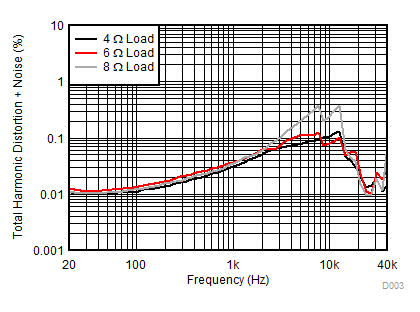

TAS5780M D003_SLASED7.gif
AV(SPK_AMP) = 20 dBV PO = 1 W VPVDD = 12 V
Figure 24. THD+N vs Frequency – BTL

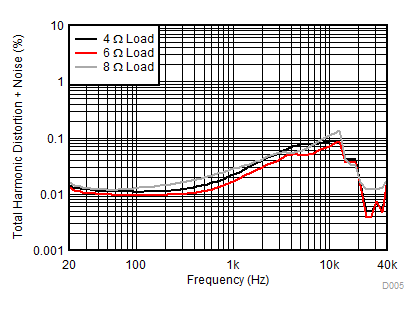

TAS5780M D005_SLASED7.gif
AV(SPK_AMP) = 26 dBV PO = 1 W VPVDD = 18 V
Figure 26. THD+N vs Frequency – BTL
TAS5780M D006_SLASED7.gif
AV(SPK_AMP) = 26 dBV PO = 1 W VPVDD = 24 V
Figure 27. THD+N vs Frequency – BTL

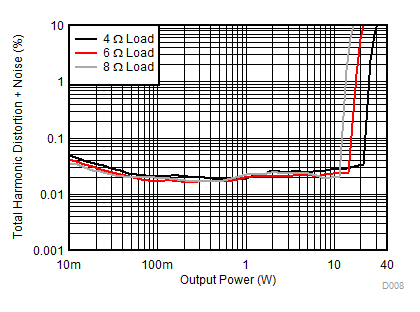

TAS5780M D008_SLASED7.gif
AV(SPK_AMP) = 20 dBV VPVDD = 15 V
Figure 29. THD+N vs Power – BTL

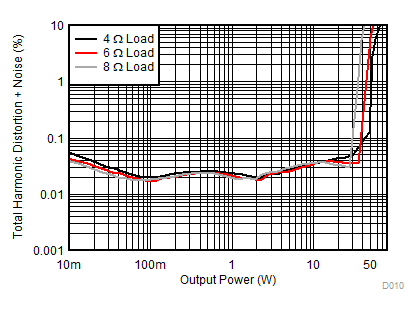

TAS5780M D010_SLASED7.gif
AV(SPK_AMP) = 26 dBV VPVDD = 24 V
Figure 31. THD+N vs Power – BTL

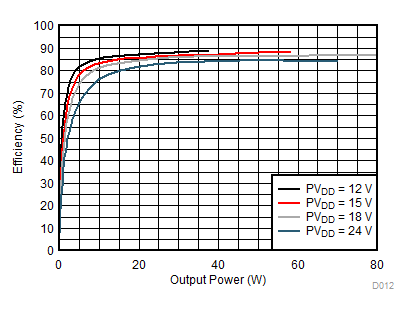

TAS5780M D012_SLASED7.gif
RSPK = 4 Ω
Figure 33. Efficiency vs Output Power – BTL

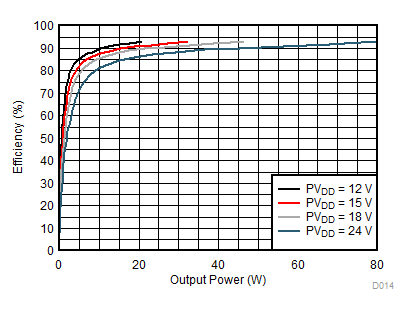

TAS5780M D014_SLASED7.gif
RSPK = 8 Ω
Figure 35. Efficiency vs Output Power – BTL
TAS5780M D016_SLASED7.gif
AV(SPK_AMP) = 26 dBV VPVDD = 24 V
Figure 37. Crosstalk vs Frequency – BTL
TAS5780M D018_SLASED7.gif
AV(SPK_AMP) = 26 dBV VPVDD = 24 V
VDVDD = 3.3 V + 250 mVac
Figure 39. DVDD PSRR vs Frequency – BTL
TAS5780M D020_SLASED7.gif
AV(SPK_AMP) = 26 dBV VPVDD = 24 V
VCPVDD = 3.3 V + 250 mVac
Figure 41. CPVDD PSRR vs Frequency – BTL
TAS5780M D007_SLASED7.gif
AV(SPK_AMP) = 20 dBV VPVDD = 12 V
Figure 28. THD+N vs Power – BTL

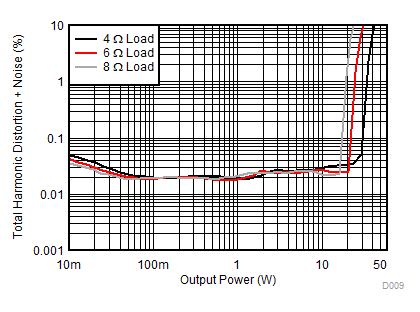

TAS5780M D009_SLASED7.gif
AV(SPK_AMP) = 26 dBV VPVDD = 18 V
Figure 30. THD+N vs Power – BTL
TAS5780M D011_SLASED7.gif
RSPK = 4 Ω
Figure 32. Idle Channel Noise vs PVDD – BTL
TAS5780M D013_SLASED7.gif
RSPK = 6 Ω
Figure 34. Efficiency vs Output Power – BTL

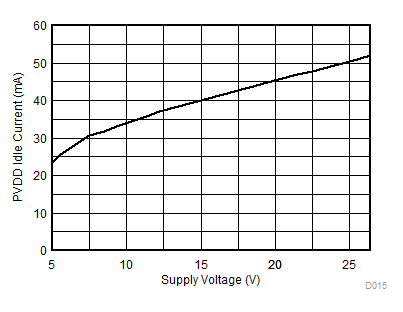

TAS5780M D015_SLASED7.gif
fSPK_AMP = 768 kHz RSPK = 8 Ω
Figure 36. Idle Current Draw (Filterless) vs VPVDD – BTL

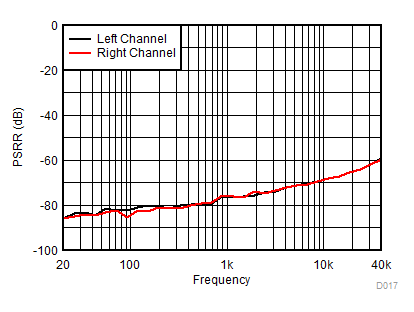

TAS5780M D017_SLASED7.gif
AV(SPK_AMP) = 26 dBV VPVDD = 24 V + 250 mVac
Figure 38. PVDD PSRR vs Frequency – BTL

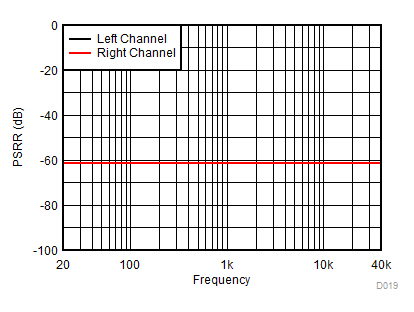

TAS5780M D019_SLASED7.gif
AV(SPK_AMP) = 26 dBV VPVDD = 24 V
VAVDD = 3.3 V + 250 mVac
Figure 40. AVDD PSRR vs Frequency – BTL
TAS5780M D001_SLASED7.gif
AV(SPK_AMP) = 20 dB PVDD = 12 V
Figure 42. Frequency Response

7.13.2 Parallel Bridge Tied Load (PBTL) Configuration

Return to Quick Reference Table.

TAS5780M D021_SLASED7.gif
AV(SPK_AMP) = 26 dBV
Figure 43. Output Power vs PVDD – PBTL
TAS5780M D023_SLASED7.gif
AV(SPK_AMP) = 20 dBV PO = 1 W VPVDD = 15 V
Figure 45. THD+N vs Frequency – PBTL

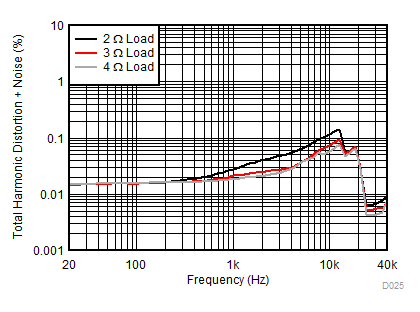

TAS5780M D025_SLASED7.gif
AV(SPK_AMP) = 26 dBV PO = 1 W VPVDD = 24 V
Figure 47. THD+N vs Frequency – PBTL
TAS5780M D027_SLASED7.gif
AV(SPK_AMP) = 20 dBV
VPVDD = 15 V
Figure 49. THD+N vs Power – PBTL
TAS5780M D029_SLASED7.gif
AV(SPK_AMP) = 20 dBV
VPVDD = 24 V
Figure 51. THD+N vs Power – PBTL

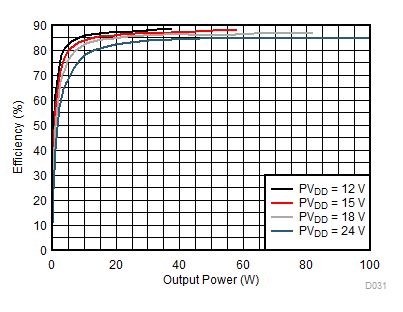

TAS5780M D031_SLASED7.gif
AV(SPK_AMP) = 26 dBV RSPK = 2 Ω
Figure 53. Efficiency vs Output Power – PBTL

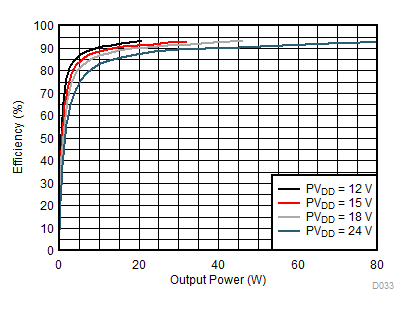

TAS5780M D033_SLASED7.gif
AV(SPK_AMP) = 20 dBV RSPK = 4 Ω
Figure 55. Efficiency vs Output Power

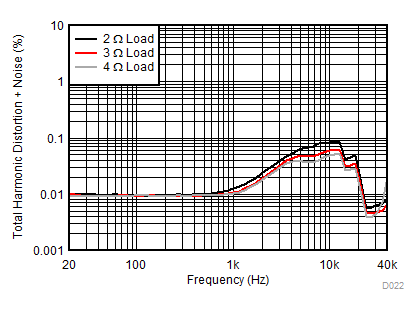

TAS5780M D022_SLASED7.gif
AV(SPK_AMP) = 20 dBV PO = 1 W VPVDD = 12 V
Figure 44. THD+N vs Frequency – PBTL

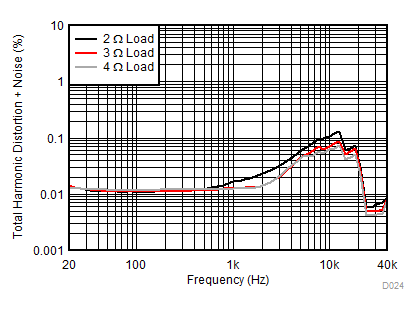

TAS5780M D024_SLASED7.gif
AV(SPK_AMP) = 26 dBV PO = 1 W VPVDD = 18 V
Figure 46. THD+N vs Frequency – PBTL
TAS5780M D026_SLASED7.gif
AV(SPK_AMP) = 20 dBV VPVDD = 12 V
Figure 48. THD+N vs Power – PBTL

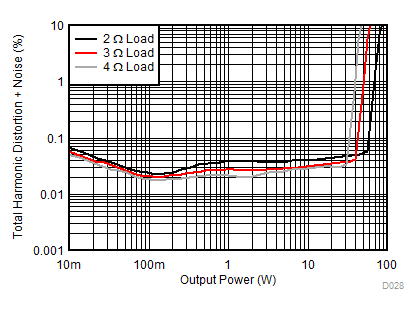

TAS5780M D028_SLASED7.gif
AV(SPK_AMP) = 26 dBV
VPVDD = 18 V
Figure 50. THD+N vs Power – PBTL
TAS5780M D030_SLASED7.gif
RSPK = 4 Ω
Figure 52. Idle Channel Noise vs PVDD – PBTL

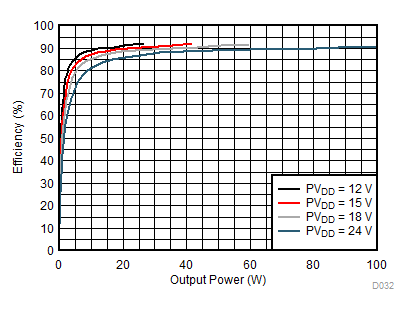

TAS5780M D032_SLASED7.gif
AV(SPK_AMP) = 20 dBV RSPK = 3 Ω
Figure 54. Efficiency vs Output Power
