6.8 Typical Characteristics (PVIN = 3.3 V, VIN = 5 V)

The electrical characteristic data has been developed from actual products tested at 25°C. This data is considered typical for the converter. Applies to Figure 12, Figure 13, and Figure 14. The temperature derating curves represent the conditions at which internal components are at or below the manufacturer's maximum operating temperatures. Derating limits apply to devices soldered directly to a 100-mm × 100-mm double-sided PCB with 2 oz. copper. Applies to Figure 16.

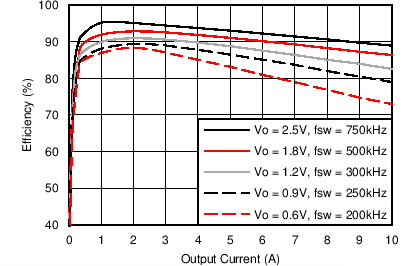

LMZ31710 3V3Eff_SLVSBC6.pngFigure 12. Efficiency versus Output Current
LMZ31710 3_3VPdis_SLVSBC6.pngFigure 14. Power Dissipation versus Output Current
LMZ31710 33Vin_0LFM_SOA.pngFigure 16. Safe Operating Area

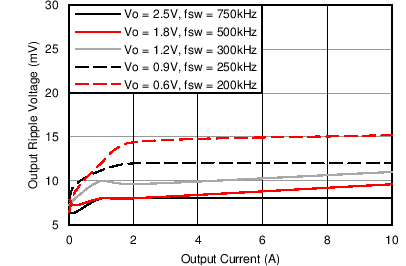

LMZ31710 3_3VRppl_SLVSBC6.pngFigure 13. Voltage Ripple versus Output Current

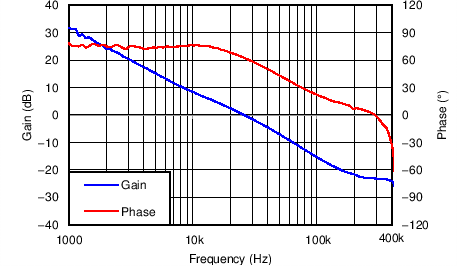

LMZ31710 3_3Vin_Bode.pngFigure 15. VOUT= 1.8 V, IOUT= 10 A, COUT1= 200 Μf Ceramic, FSW= 500 Khz
