6.6 Typical Characteristics (PVIN = VIN = 12 V)

The electrical characteristic data has been developed from actual products tested at 25°C. This data is considered typical for the converter. Applies to Figure 1, Figure 2, and Figure 3. The temperature derating curves represent the conditions at which internal components are at or below the manufacturer's maximum operating temperatures. Derating limits apply to devices soldered directly to a 100 mm × 100 mm double-sided PCB with 2 oz. copper. Applies to Figure 5 and Figure 6.
LMZ31710 12VEff_SLVSBC6.pngFigure 1. Efficiency versus Output Current
LMZ31710 12VPdis_SLVSBC6.pngFigure 3. Power Dissipation versus Output Current

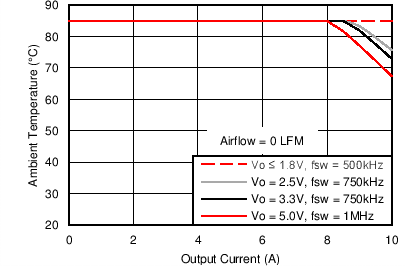

LMZ31710 12Vin_0LFM_SOA.pngFigure 5. Safe Operating Area
LMZ31710 12VRppl_SLVSBC6.pngFigure 2. Voltage Ripple versus Output Current

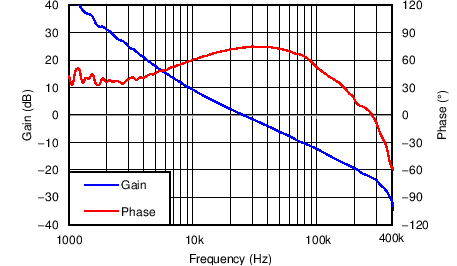

LMZ31710 12Vin_Bode.pngFigure 4. VOUT= 1.8 V, IOUT= 10 A, COUT1= 200 Μf Ceramic, FSW= 500 Khz
LMZ31710 12Vin_200LFM_SOA.pngFigure 6. Safe Operating Area
