5 Pin Configuration and Functions

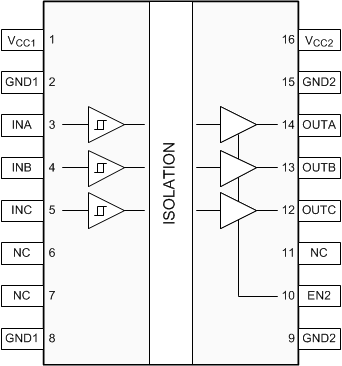

GUID-8287E821-F75A-4C8C-A681-58CA8F1DA7B3-low.gifFigure 5-1 ISO7730 DW and DBQ Packages16-Pin SOIC-WB and QSOP Top View

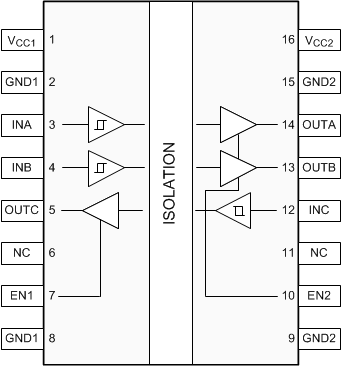

GUID-22BC455F-E319-4E88-A372-C52DE2BDA4FE-low.gifFigure 5-2 ISO7731 DW and DBQ Packages16-Pin SOIC-WB and QSOPTop View
Table 5-1 Pin Functions
PIN I/O DESCRIPTION
NAME NO.
ISO7730 ISO7731
EN1 — 7 I Output enable 1. Output pins on side 1 are enabled when EN1 is high or open and in high-impedance state when EN1 is low.
EN2 10 10 I Output enable 2. Output pins on side 2 are enabled when EN2 is high or open and in high-impedance state when EN2 is low.
GND1 2, 8 2, 8 — Ground connection for VCC1
GND2 9, 15 9, 15 — Ground connection for VCC2
INA 3 3 I Input, channel A
INB 4 4 I Input, channel B
INC 5 12 I Input, channel C
NC 6, 7, 11 6, 11 — Not connected
OUTA 14 14 O Output, channel A
OUTB 13 13 O Output, channel B
OUTC 12 5 O Output, channel C
VCC1 1 1 — Power supply, VCC1
VCC2 16 16 — Power supply, VCC2
