7.3.6 Pin Diagrams

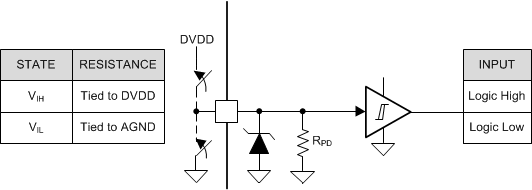

Figure 22 shows the input structure for the logic-level pins, PWM, DIR and nBRAKE. The input can be driven with a voltage or external resistor.

DRV8306 drv8306-logic-level-input-pin-structure-pwm-dir-nbrake.gifFigure 22. Logic-Level Input Pin Structure (PWM, DIR, and nBRAKE)

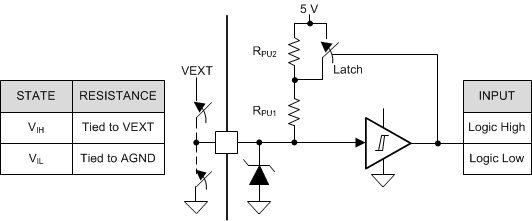

Figure 23 shows the input structure for the logic-level pin, ENABLE pin. The input can be driven with a voltage or external resistor. The VEXT represents the external voltage.

DRV8306 drv8306-logic-level-input-pin-structure.gifFigure 23. Logic-Level Input Pin Structure (ENABLE)

Figure 24 shows the structure of the open-drain output pin, nFAULT. The open-drain output requires an external pullup resistor to function properly.

DRV8306 drv8306_open_drain.gifFigure 24. Open-Drain Output Pin Structure

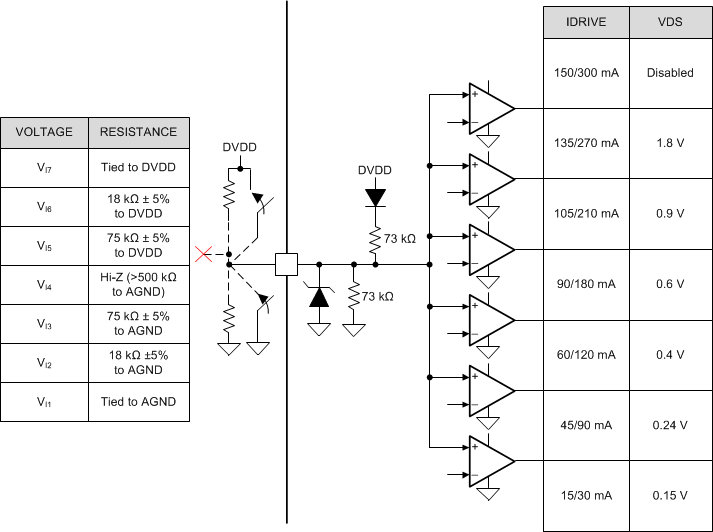

Figure 25 shows the structure of the seven level input pins, IDRIVE and VDS. The input can be set with an external resistor.

DRV8306 drv8306-seven-level-input-pin-structure.gifFigure 25. Seven Level Input Pin Structure
