Typical Characteristics

DRV8306 D001_SLVSE38.gif
Figure 1. Supply Current Over Supply Voltage
DRV8306 D003_SLVSE38.gif

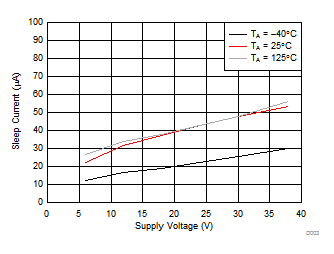

Figure 3. Sleep Current Over Supply Voltage
DRV8306 D005_SLVSE38.gif
IDVDD = 0 mA

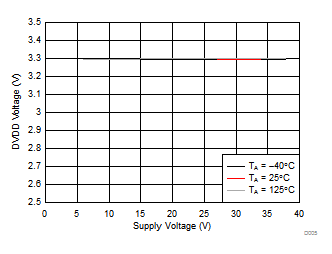

Figure 5. DVDD Voltage Over Supply Voltage
DRV8306 D007_SLVSE38.gif

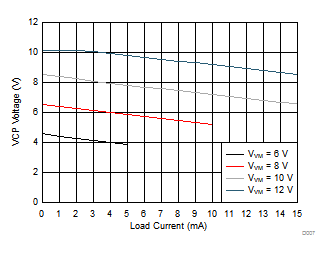

Figure 7. VCP Voltage Over Load
DRV8306 D002_SLVSE38.gif

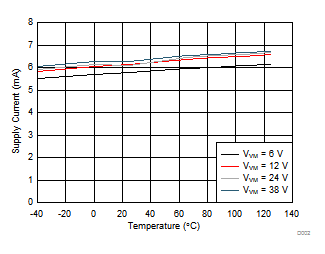

Figure 2. Supply Current Over Temperature
DRV8306 D004_SLVSE38.gif
Figure 4. Sleep Current Over Temperature
DRV8306 D006_SLVSE38.gif
IDVDD = 30 mA
Figure 6. DVDD Voltage Over Supply Voltage
DRV8306 D008_SLVSE38.gif
Figure 8. VCP Voltage Over Temperature
