ZHCSGI4B August   2017  – February 2022 CSD22205L

PRODUCTION DATA

  1. 1特性
  2. 2应用
  3. 3说明
  4. 4Revision History
  5. 5Specifications
    1. 5.1 Electrical Characteristics
    2. 5.2 Thermal Information
    3. 5.3 Typical MOSFET Characteristics
  6. 6Device and Documentation Support
    1. 6.1 Receiving Notification of Documentation Updates
    2. 6.2 Trademarks
  7. 7Mechanical, Packaging, and Orderable Information
    1. 7.1 CSD22205L Package Dimensions
    2. 7.2 Land Pattern Recommendation
    3. 7.3 Stencil Recommendation

封装选项

请参考 PDF 数据表获取器件具体的封装图。

机械数据 (封装 | 引脚)
  • YMG|4
散热焊盘机械数据 (封装 | 引脚)
订购信息

Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)

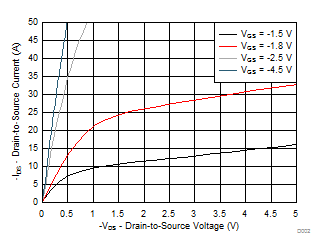

GUID-20220215-SS0I-GGNM-15Z3-SHMKGVVJ1CD8-low.gifFigure 5-1 Saturation Characteristics

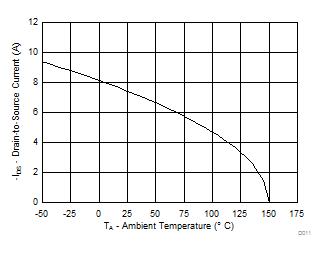

GUID-20220215-SS0I-B54B-2RJQ-CFRK7TBFJFKM-low.gifFigure 5-3 Maximum Drain Current vs Temperature
GUID-20220215-SS0I-807F-G2LV-MQLR8WW4SGNP-low.gifFigure 5-5 Capacitance

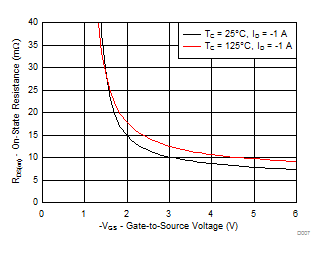

GUID-20220215-SS0I-J8SQ-MVVT-X3NNF9TZ4LQ1-low.gifFigure 5-7 On-State Resistance vs Gate-to-Source Voltage
GUID-20220215-SS0I-XBQZ-LFM5-P3S1QLS6X5GD-low.gifFigure 5-9 Typical Diode Forward Voltage
GUID-20220215-SS0I-SGVK-WNWG-XRXPTKDGBT9P-low.pngFigure 5-11 Transient Thermal Impedance
VDS = –5 V
Figure 5-2 Transfer Characteristics
ID = –1 A VDS = –4 V
Figure 5-4 Gate Charge
ID = –250 µA

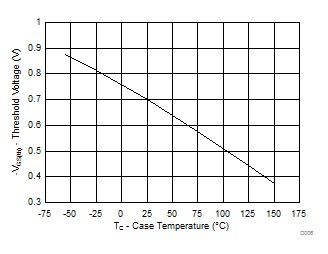

Figure 5-6 Threshold Voltage vs Temperature
ID = –1 A

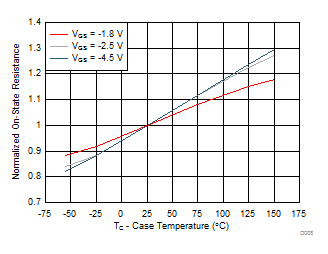

Figure 5-8 Normalized On-State Resistance vs Temperature
Single pulse, typical RθJA = 225°C/W

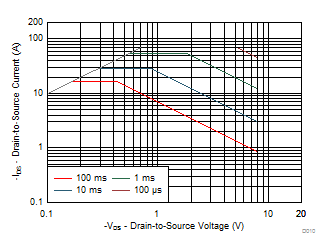

Figure 5-10 Maximum Safe Operating Area
