9.3.3 DisplayPort Only

The TUSB1064 operates in 4 Lanes of DisplayPort only mode when the CTL1 pin is high and CTL0 pin is low.

TUSB1064 TUSB1064_DCI_Four_Lane_DP_NoFlip.gifFigure 35. Four Lane DP – No Flip (CTL1 = H, CTL0 = L, FLIP = L)

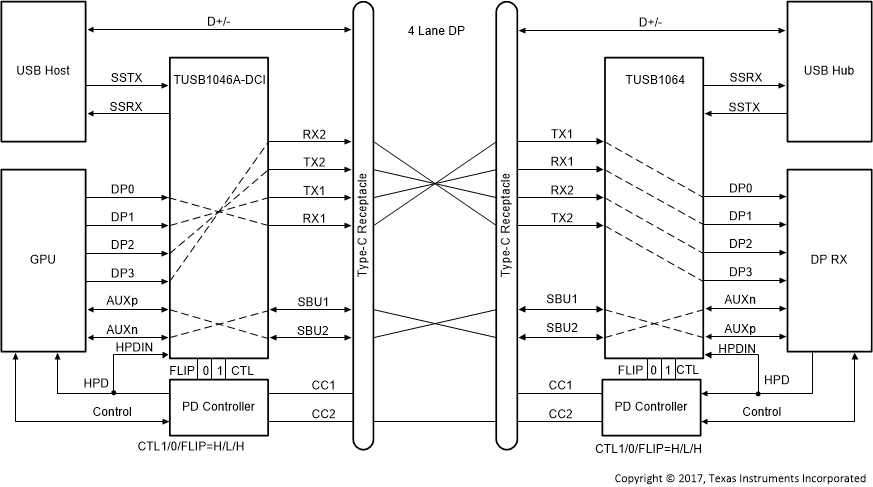

TUSB1064 TUSB1064_DCI_Four_Lane_DP_Flip.gifFigure 36. Four Lane DP – With Flip (CTL1 = H, CTL0 = L, FLIP = H)
