9.3.1 USB 3.1 Only

The TUSB1064 is in USB3.1 only when the CTL1 pin is low and CTL0 pin is high.

TUSB1064 TUSB1064_DCI_USB31_Only_NoFlip.gifFigure 31. USB3.1 Only – No Flip (CTL1 = L, CTL0 = H, FLIP = L)

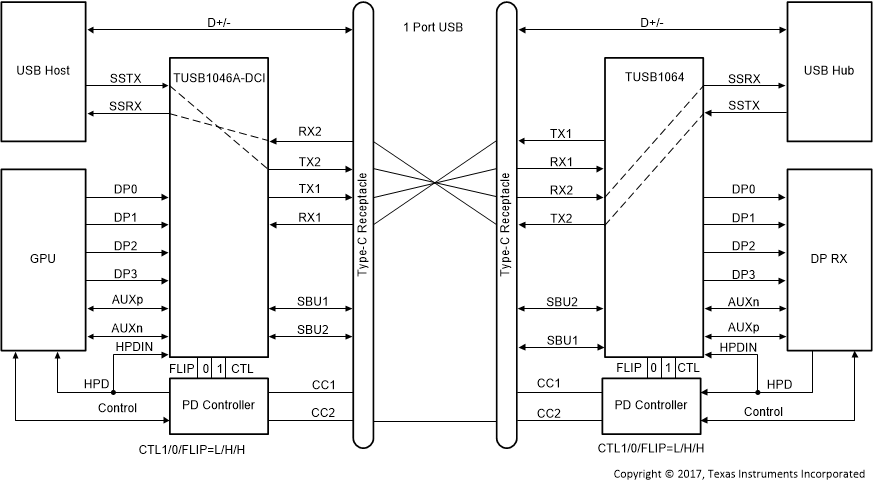

TUSB1064 TUSB1064_DCI_USB31_Only_Flip.gifFigure 32. USB3.1 Only – With Flip (CTL1 = L, CTL0 = H, FLIP = H)
