5.7 Typical Characteristics

at operating temperature range TJ = 25°C, VIN = VOUT(NOM) + 0.5 V or 1.5 V (whichever is greater), IOUT = 1 mA, VEN = VIN, and CIN = COUT = 1 μF (unless otherwise noted)

TPS746-Q1 3.3-V Line Regulation vs VIN
VOUT = 3.3 V, IOUT = 1 mA
Figure 5-1 3.3-V Line Regulation vs VIN
TPS746-Q1 5.5-V Line Regulation vs VIN
VOUT = 5.5 V, IOUT = 1 mA
Figure 5-3 5.5-V Line Regulation vs VIN
TPS746-Q1 0.55-V Dropout Voltage vs IOUT

Figure 5-5 0.55-V Dropout Voltage vs IOUT
TPS746-Q1 VDO vs VOUT
IOUT = 1 A
Figure 5-7 VDO vs VOUT
TPS746-Q1 ISHDN vs VIN
VEN = 0 V
Figure 5-9 ISHDN vs VIN
TPS746-Q1 3.3-V Load Regulation vs IOUT
VIN = 3.8 V, VOUT = 3.3 V
Figure 5-11 3.3-V Load Regulation vs IOUT
TPS746-Q1 5-V Load Regulation vs IOUT
VIN = 6 V, VOUT = 5 V
Figure 5-13 5-V Load Regulation vs IOUT
TPS746-Q1 PGLTH and PGHTH vs Temperature

Figure 5-15 PGLTH and PGHTH vs Temperature
TPS746-Q1 VOL(PG) vs PG Pin Sink Current
VIN = 3.8 V, VOUT = 3.3 V
Figure 5-17 VOL(PG) vs PG Pin Sink Current
TPS746-Q1 tPGDH vs Temperature (For TPS746B Only)

Figure 5-19 tPGDH vs Temperature (For TPS746B Only)
TPS746-Q1 VEN(HI) and VEN(LO) vs Temperature

Figure 5-21 VEN(HI) and VEN(LO) vs Temperature
TPS746-Q1 3.3-V Foldback Current Limit vs IOUT

Figure 5-23 3.3-V Foldback Current Limit vs IOUT
TPS746-Q1 3.3-V Line Transient
VOUT = 3.3 V, IOUT = 1 mA, VIN slew rate = 1 V/µs
Figure 5-25 3.3-V Line Transient
TPS746-Q1 1-mA to 1-A Load Transient (5 V)
VOUT = 5 V, VIN = 5.5 V, IOUT slew rate = 1 A/µs
Figure 5-27 1-mA to 1-A Load Transient (5 V)
TPS746-Q1 VIN Power-Up
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 1 mA
Figure 5-29 VIN Power-Up

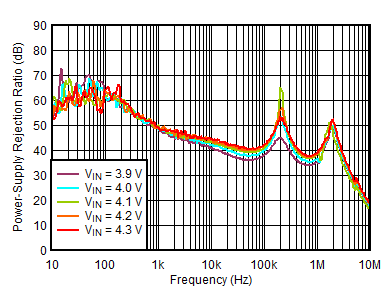

TPS746-Q1 PSRR vs Frequency and VIN
VOUT = 3.3 V, IOUT = 500 mA, COUT = 2.2 µF
Figure 5-31 PSRR vs Frequency and VIN
TPS746-Q1 PSRR vs Frequency and VIN
VOUT = 3.3 V, IOUT = 250 mA, COUT = 2.2 µF
Figure 5-33 PSRR vs Frequency and VIN
TPS746-Q1 PSRR vs Frequency
IOUT = 500 mA, COUT = 2.2 µF
Figure 5-35 PSRR vs Frequency

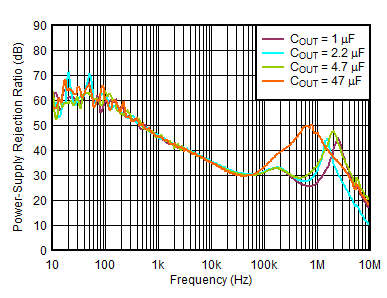

TPS746-Q1 PSRR vs Frequency and COUT
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 500 mA
Figure 5-37 PSRR vs Frequency and COUT
TPS746-Q1 PSRR vs Frequency and ILOAD
VIN = 3.8 V, VOUT = 3.3 V, COUT = 2.2 µF

Figure 5-39 PSRR vs Frequency and ILOAD
TPS746-Q1 Output Spectral Noise Density vs Frequency and IOUT
VIN = 3.8 V, VOUT = 3.3 V, COUT = 2.2 µF, VRMS BW = 10 Hz to 100 kHz
Figure 5-41 Output Spectral Noise Density vs Frequency and IOUT
TPS746-Q1 Output Spectral Noise Density vs Frequency and COUT
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 100 mA, CFF = 0 µF, VRMS BW = 10 Hz to 100 kHz
Figure 5-43 Output Spectral Noise Density vs Frequency and COUT
TPS746-Q1 0.55-V Line Regulation vs VIN
VOUT = 0.55 V, IOUT = 1 mA
Figure 5-2 0.55-V Line Regulation vs VIN
TPS746-Q1 3.3-V Dropout Voltage vs IOUT

Figure 5-4 3.3-V Dropout Voltage vs IOUT
TPS746-Q1 5.5-V Dropout Voltage vs IOUT

Figure 5-6 5.5-V Dropout Voltage vs IOUT
TPS746-Q1 IGND vs IOUT

Figure 5-8 IGND vs IOUT
TPS746-Q1 IGND vs VIN
VOUT = 3.3 V, IOUT = 0 mA
Figure 5-10 IGND vs VIN
TPS746-Q1 0.55-V Load Regulation vs IOUT
VIN = 2 V, VOUT = 0.55 V
Figure 5-12 0.55-V Load Regulation vs IOUT
TPS746-Q1 VOUT vs IOUT Pulldown Resistor

Figure 5-14 VOUT vs IOUT Pulldown Resistor
TPS746-Q1 IIkg(PG) vs Temperature and PG Pin Voltage

Figure 5-16 IIkg(PG) vs Temperature and PG Pin Voltage
TPS746-Q1 tPGDH vs Temperature

Figure 5-18 tPGDH vs Temperature
TPS746-Q1 tPGDL vs Temperature

Figure 5-20 tPGDL vs Temperature
TPS746-Q1 IEN vs VIN
VEN = 5.5 V
Figure 5-22 IEN vs VIN
TPS746-Q1 0.55-V Line Transient
VOUT = 0.55 V, IOUT = 1 mA, VIN slew rate = 1 V/µs

Figure 5-24 0.55-V Line Transient
TPS746-Q1 1-mA to 1-A Load Transient (0.55 V)
VOUT = 0.55 V, VIN = 2 V, IOUT slew rate = 1 A/µs
Figure 5-26 1-mA to 1-A Load Transient (0.55 V)
TPS746-Q1 1-mA to 1-A Load Transient (3.3 V)
VOUT = 3.3 V, VIN = 3.8 V, IOUT slew rate = 1 A/µs
Figure 5-28 1-mA to 1-A Load Transient (3.3 V)
TPS746-Q1 Startup With EN
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 1 mA
Figure 5-30 Startup With EN
TPS746-Q1 PSRR vs Frequency and VIN
VOUT = 3.3 V, IOUT = 500 mA, COUT = 2.2 µF
Figure 5-32 PSRR vs Frequency and VIN
TPS746-Q1 PSRR vs Frequency and VIN
VOUT = 3.3 V, IOUT = 250 mA, COUT = 2.2 µF
Figure 5-34 PSRR vs Frequency and VIN
TPS746-Q1 PSRR vs Frequency
IOUT = 1 A, COUT = 2.2 µF
Figure 5-36 PSRR vs Frequency
TPS746-Q1 PSRR vs Frequency and CFF
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 500 mA
Figure 5-38 PSRR vs Frequency and CFF
TPS746-Q1 Output Spectral Noise Density vs Frequency and IOUT
VIN = 3.8 V, VOUT = 3.3 V, COUT = 4.7 µF, VRMS BW = 10 Hz to 100 kHz
Figure 5-40 Output Spectral Noise Density vs Frequency and IOUT
TPS746-Q1 Output Spectral Noise Density vs Frequency and CFF
VIN = 3.8 V, VOUT = 3.3 V, IOUT = 500 mA, COUT = 2.2 µF, VRMS BW = 10 Hz to 100 kHz
Figure 5-42 Output Spectral Noise Density vs Frequency and CFF
TPS746-Q1 Output Spectral Noise Density vs Frequency
IOUT = 500 mA, COUT = 2.2 µF, VRMS BW = 10 Hz to 100 kHz

Figure 5-44 Output Spectral Noise Density vs Frequency
