PCB Layout

Figure 8 through Figure 13 shows the LAUNCHXL-F28377S PCB layout.

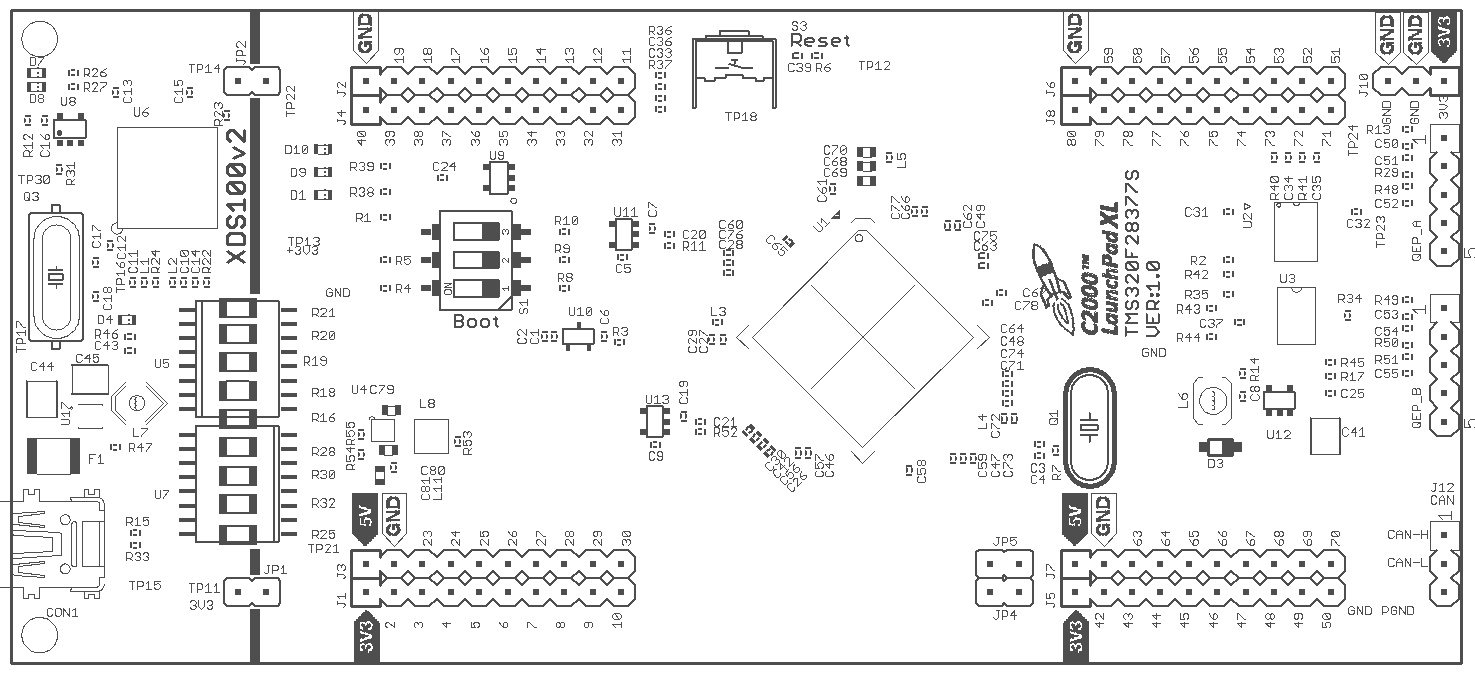

front_silkscreen.pngFigure 8. Top Silk
inner_copper_1.pngFigure 10. Inner Copper 1

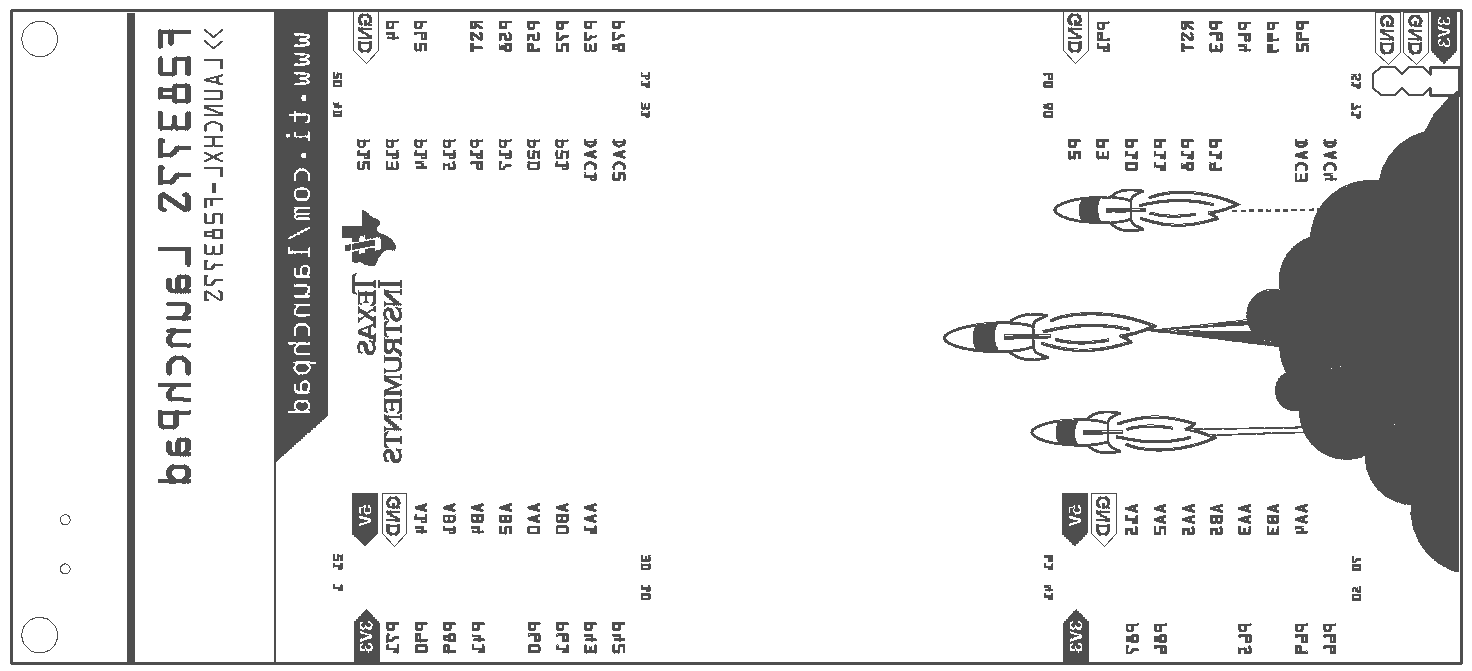

back_silkscreen.pngFigure 12. Bottom Silk

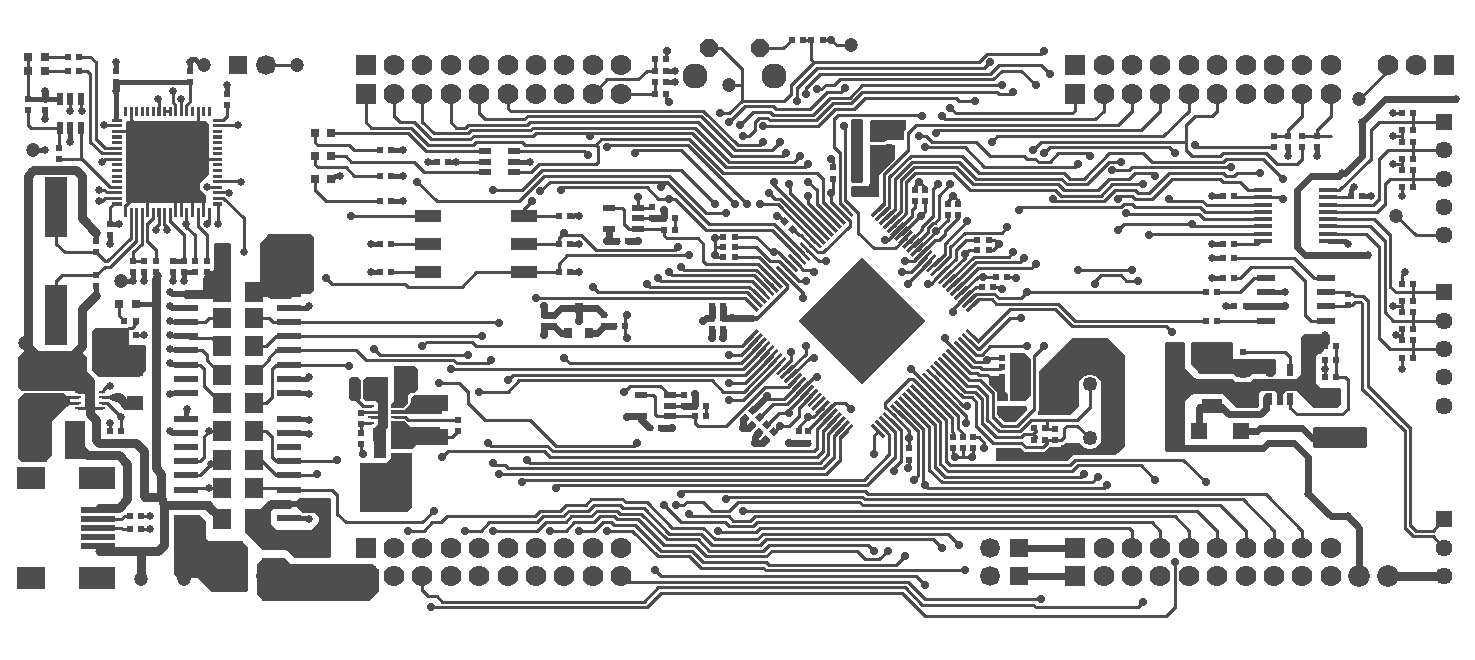

top_copper.pngFigure 9. Top Copper
inner_copper_2.pngFigure 11. Inner Copper 2

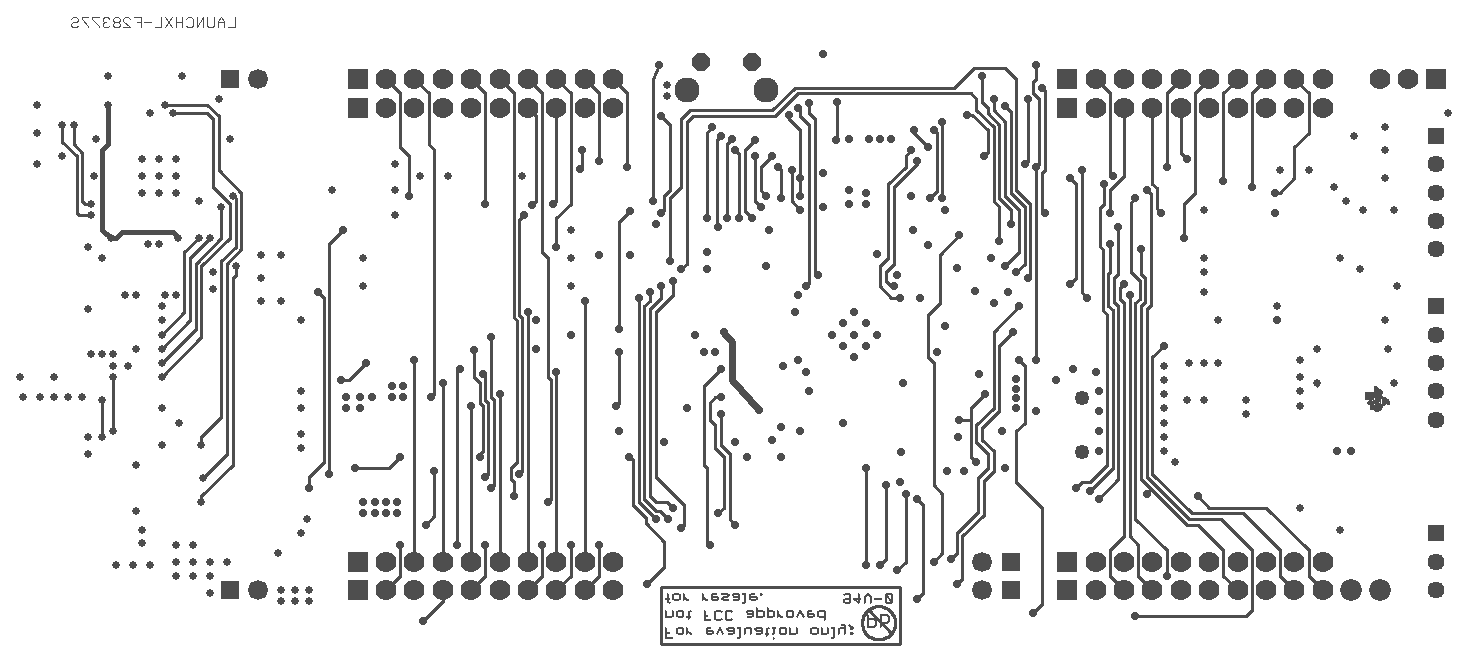

bottom_copper.pngFigure 13. Bottom Copper
