5.3 EVM Settings Tab

The EVM Settings tab allows for setup of features for the USB to I2C bridge and EVM GUI.

  • I2C Frequency: Change the communication frequency between the control board and HDC3020EVM.

  • I2C Address: Selects the address option of the HDC3020.

  • CRC Generator: Retrieves the 8-bit CRC byte from the HDC3020. The message bytes must be a hex value and must be separated by a single space.

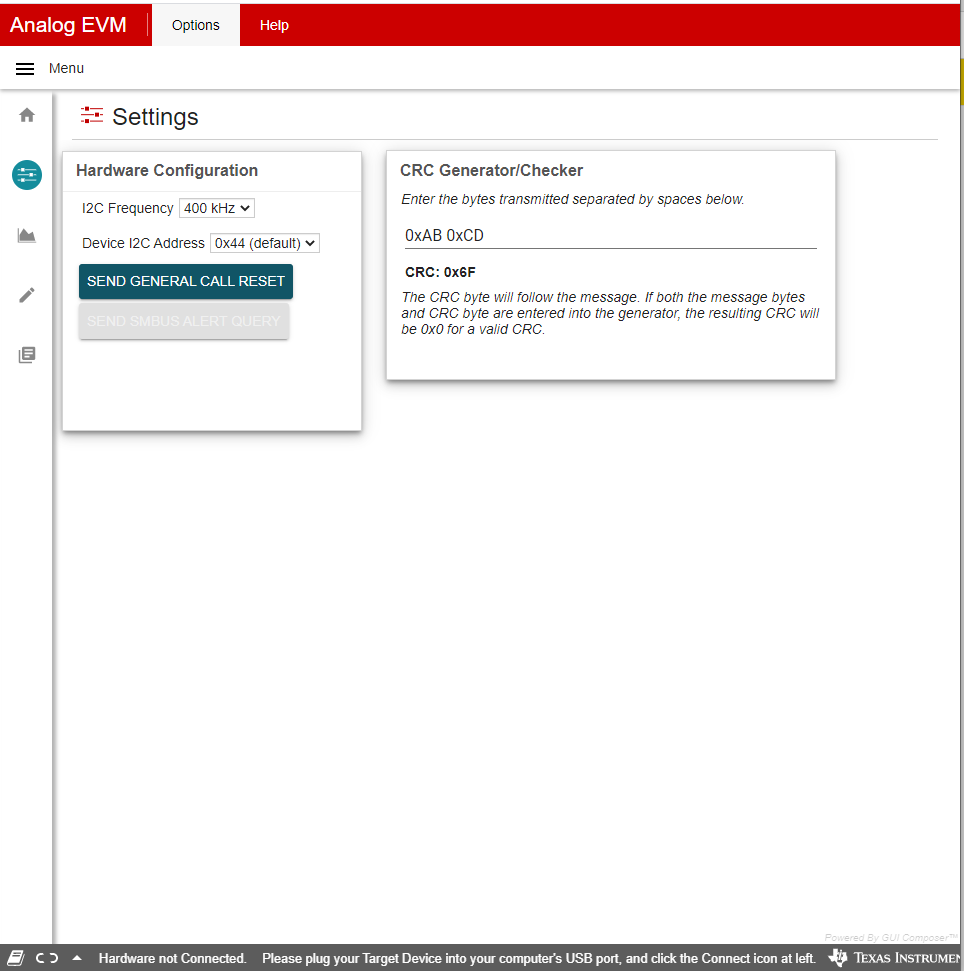

GUID-20210610-CA0I-9JM5-FBD5-0RHBNFXMNCKJ-low.pngFigure 5-5 HDC3020EVM GUI Settings Tab.
