8 Quick Start Guide

The NFCLink standalone getting started guide provides complete details of how to get started with the provided example firmware and the MSP-EXP430F5529LP and DLP-7970ABP.

This guide describes how to load the example firmware to TI evaluation boards and explains the features of the TI NFC Tool GUI (see Figure 16), which is installed with the firmware package.

The TI NFC Tool allows for quick configuration of the different NFC modes and provides an interface to send and receive data with NFC-enabled devices.

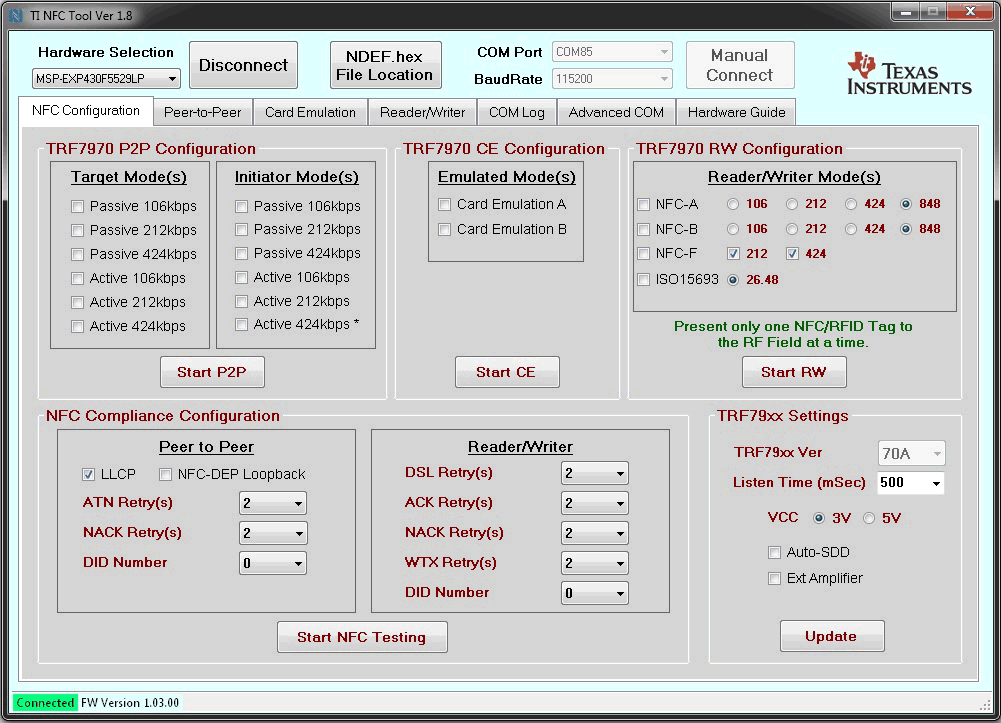

TI_NFC_Tool_GUI_v1p8.pngFigure 16. TI NFC Tool GUI
