Open the ADC12DJ5200RFEVM GUI and Program the ADC and Clocks

The Device Configuration GUI is installed separately from the HSDC Pro installation and is a stand-alone GUI.

Note: The maximum clock rate supported by ADC12DJ4000RF is 4000 MHz and only 8-bit mode are suppored by ADC08DJ5200RF. All the 12-bit and 15-bit modes are disabled on ADC08DJ5200RF.

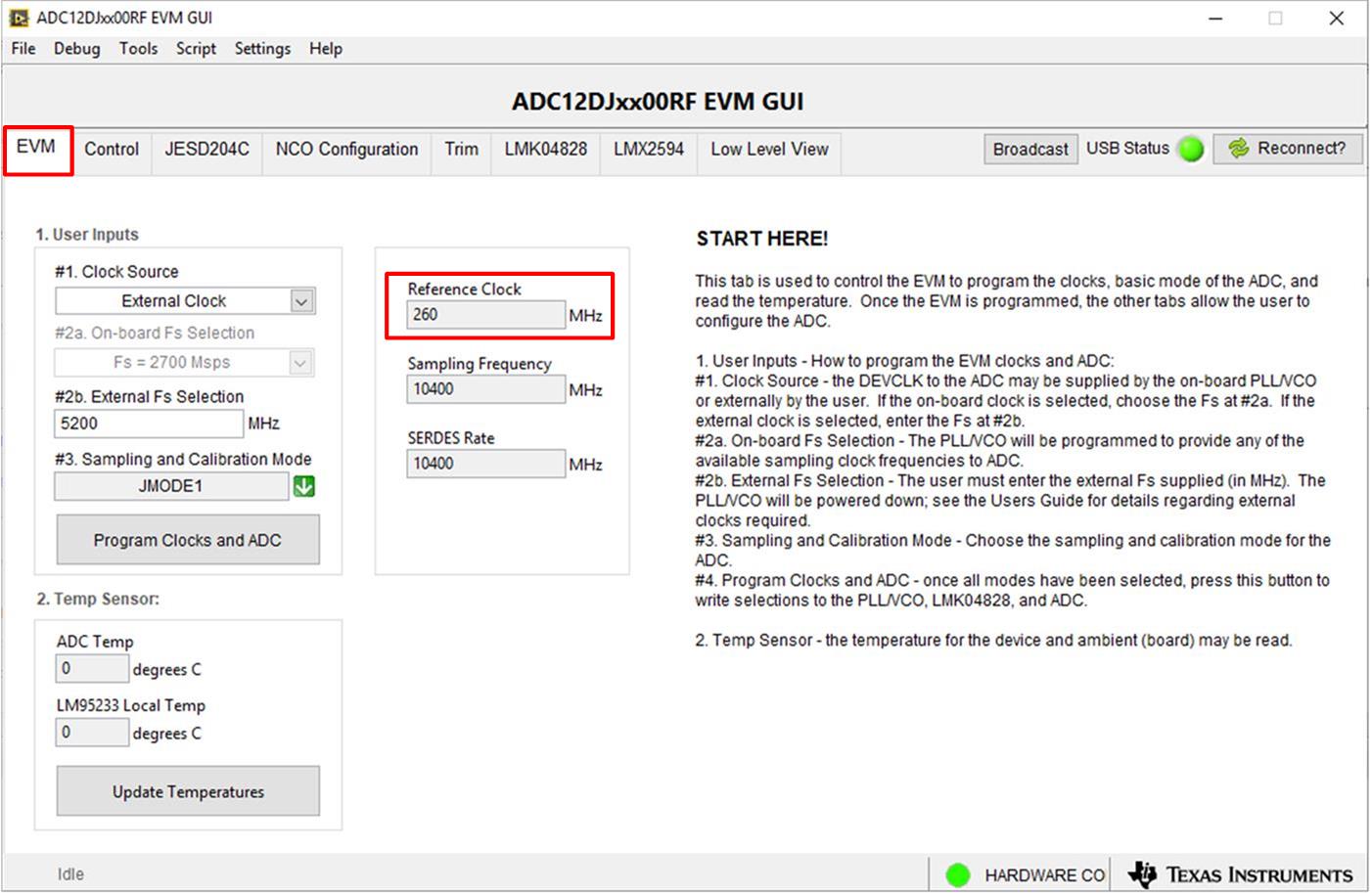

GUID-C4627FF0-4C51-4BA4-8C42-9DD99350F56C-low.jpgFigure 3-2 Configuration GUI EVM Tab

Figure 3-2 and Figure 3-3 show the GUI open to the EVM tab and Control tab respectively. Tabs at the top of the panel organize the configuration into device and EVM features with user-friendly controls and a low-level tab for directly configuring the registers. The EVM has three configurable devices, namely the ADC12DJ5200RF, LMK04828, LMK61E2, and LMX2594. The register map for each device is provided in the device data sheet (ADC12DJ5200RF 10.4-GSPS Single Channel or 5.2-GSPS Dual Channel, 12-bit, RF, LMK0482xB Ultra Low-Noise JESD204B Cmplnt Clck Jitter Cleaner w/ Dual Loop PLLs, and LMX2594 15-GHz Wideband PLLatinum™ RF Synthesizer, respectively).

  1. Open the ADC12DJ5200RFEVM GUI.
  2. Select the external clock as the clock source.
  3. Enter Fs = 5200 MHz MSPS as the external Fs selection.
  4. Select JMODE1 for the sampling and Calibration mode.
  5. Click Program Clocks and ADC (Note: This action will overwrite any previous device register settings.)
  6. The Reference frequency required by the EVM is shown under indicator reference clock.
