2.2.1 MSP430FR2311 MCU

The MSP430FR2311 MCU is the next device in TI's new ultra-low-power FRAM technology platform. FRAM is a cutting edge memory technology, combining the best features of flash and RAM into one nonvolatile memory.

Device features include:

  • 1.8-V to 3.6-V operation
  • 16-bit RISC architecture with up to 16-MHz system clock and 8-MHz FRAM access
  • Up to 3.75KB of nonvolatile FRAM
  • 126-µA/MHz active mode and 1-µA standby with RTC
  • 8-channel 10-bit ADC
  • Operational amplifier that supports multiple modes
  • Enhanced comparator with integrated 6-bit DAC as reference voltage
  • Transimpedance amplifier
  • Three timers
  • Direct memory access
  • 16 GPIOs

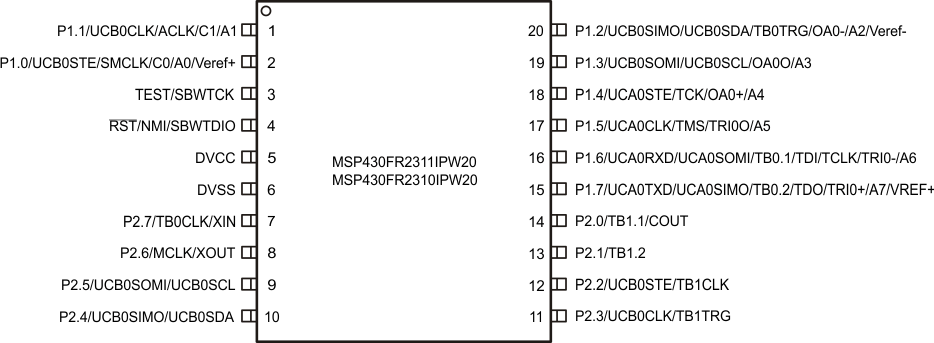

SLASE58__PINOUT_TSSOP20.gifFigure 4. MSP430FR2311 MCU PW20 Pinout
