6 System Testing

To demonstrate the complete response of the limiter and BOP when in use together the following setup was used.

  • VBAT = 5 V - 3.5 V
  • Vth MAX = 8 V
  • Vth MIN = 4 V
  • Inflection point = 4.8 V
  • Slope = 4 V/V
  • Max Attenuation = -16.5 dB
  • BOP threshold = 3.6 V

The supply voltage was ramped up and down repeatedly to produce the following output response.

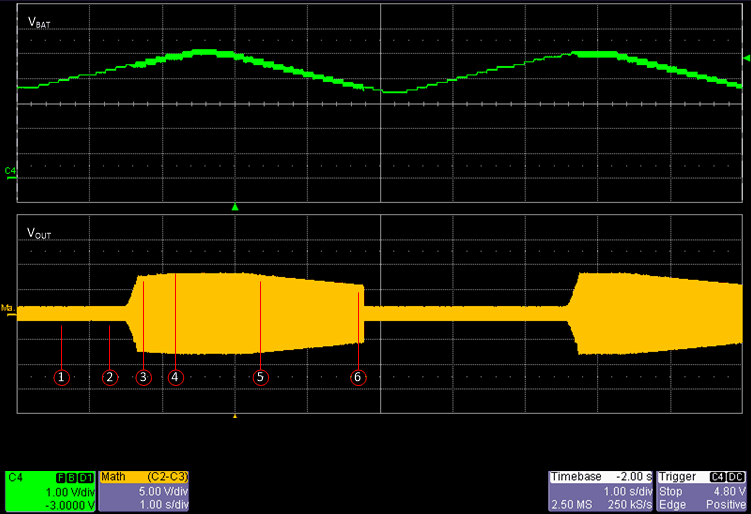

Supply-Ramp.gifFigure 10. Supply Ramp Test

Various operation stages can be observed
