7.7 Switching Characteristics: Serial Interface

over operating ambient temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
tCSDOD Propagation delay time,
CS falling edge to DOUT driven		 DOUT load = 20 pF || 100 kΩ to GND 100 ns
tDOPD Propagation delay time,
SCLK rising edge to valid new DOUT		 DOUT load = 20 pF || 100 kΩ to GND 0 50 ns
tCSDOZ Propagation delay time,
CS rising edge to DOUT high impedance		 DOUT load = 20 pF || 100 kΩ to GND 100 ns

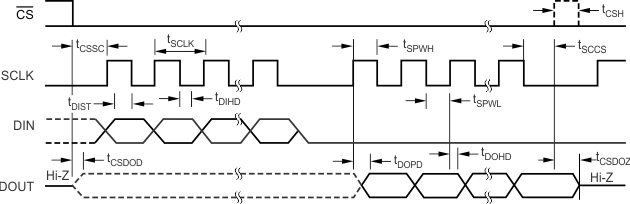

ADS1018-Q1 tim_serial_bas740.gifFigure 1. Serial Interface Timing
