7.3.4 Active Pulldown

UCC21759-Q1 implements an active pulldown feature to ensure the OUTH/OUTL pin clamping to VEE when the VDD is open. The OUTH/OUTL pin is in high-impedance status when VDD is open, the active pulldown feature can prevent the output be false turned on before the device is back to control.

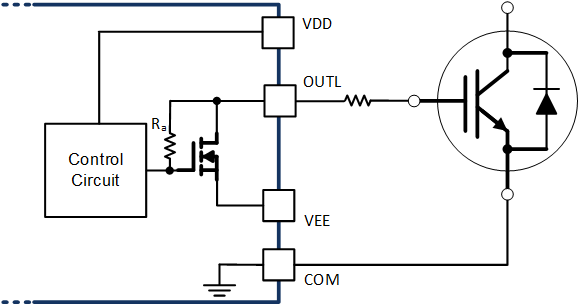

GUID-26418A9D-85E5-4146-ADA6-BC8CCA23B4D6-low.gifFigure 7-2 Active Pulldown
