7.3.5 Oscillator

GUID-24360D9E-F0BD-4649-A5E6-4D8C3B357B63-low.gifFigure 7-4 Oscillator Frequency vs Timing Resistance
GUID-70AF8685-C063-475D-9A1A-99D7DC861191-low.gifFigure 7-5 Maximum Duty Cycle vs Timing Resistance

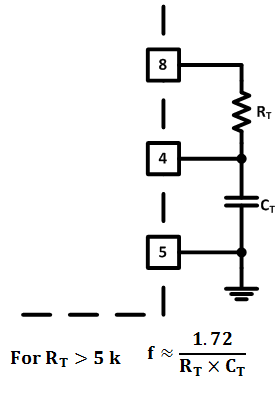

GUID-FB69F797-B4DB-4514-A5A2-9A3DA3E77754-low.gifFigure 7-6 Oscillator Section
GUID-6E8B536D-DDFC-42A2-9CA3-6E30ADBF91D9-low.gifFigure 7-7 Slope Compensation

Precision operation at high frequencies with an accurate maximum duty cycle, see Figure 7-5, can now be obtained with the UC2843A-Q1 device due to its trimmed oscillator discharge current. This nullifies the effects of production variations in the initial discharge current or dead time.

A fraction of the oscillator ramp can be resistively summed with the current sense signal, to provide slope compensation for converters requiring duty cycles over 50%. Capacitor C forms a filter with R2 to suppress the leading-edge switch spikes.
