6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted) (1)
MIN MAX UNIT
V+ Supply voltage(2) –0.5 6.5 V
VNO, VNC, VCOM Analog voltage(2)(3)(4) –0.5 V+ + 0.5 V
II/OK Analog port diode current VNO, VNC, VCOM < 0 or VNO, VNC, VCOM > V+ ±50 mA
INO, INC, ICOM ON−state switch current VNO, VNC, VCOM = 0 to V+ ±200 mA
ON−state peak switch current(5) ±400 mA
VIN Digital input voltage range(2)(3) –0.5 6.5 V
IIK Digital input clamp current VIN < 0 −50 mA
Continuous current through V+ or GND ±100 mA
TJ Junction temperature 150 °C
Tstg Storage temperature –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltages are with respect to ground, unless otherwise specified.
(3) The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
(4) This value is limited to 5.5 V maximum.
(5) Pulse at 1 ms duration < 10% duty cycle.

6.2 ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human body model (HBM), per AEC Q100-002(1) ±2000 V
Charged device model (CDM), per AEC Q100-011 Corner pins (NO, NC, IN, and COM) ±750
Other pins ±500
(1) AEC Q100-002 indicates HBM stressing is done in accordance with the ANSI/ESDA/JEDEC JS-001 specification.

6.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
V+ 1.65 5.5 V
IN 0 5.5 V
NO, NC, COM 0 V+ V

6.4 Thermal Information

THERMAL METRIC(1) TS5A3159-Q1 UNIT
DBV (SOT-23)
6 PINS
RθJA Junction-to-ambient thermal resistance 192.9 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 133.3 °C/W
RθJB Junction-to-board thermal resistance 37.6 °C/W
ψJT Junction-to-top characterization parameter 38.9 °C/W
ψJB Junction-to-board characterization parameter 37.1 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

6.5 Electrical Characteristics for 5-V Supply

V+ = 4.5 V to 5.5 V and TA = −40°C to +125°C (unless otherwise noted)
PARAMETER TEST CONDITIONS TA V+ MIN TYP(1) MAX UNIT
ANALOG SWITCH
VCOM, VNO,VNC Analog signal range 0 V+ V
rpeak Peak ON resistance 0 ≤ VNO or VNC ≤ V+,
ICOM = –30 mA		 Switch ON,
See Figure 11		 25°C 4.5 V 1 1.5 Ω
Full 1.5
ron ON-state resistance VNO or VNC = 2.5 V,
ICOM = –30 mA		 Switch ON,
See Figure 10		 25°C 4.5 V 0.75 1.3 Ω
Full 1.3
∆ron ON-state resistance match between channels VNO or VNC = 2.5 V,
ICOM = –30 mA		 Switch ON,
See Figure 10		 25°C 4.5 V 0.1 Ω
ron(flat) ON-state resistance flatness 0 ≤ VNO or VNC ≤ V+,
ICOM = –30 mA		 Switch ON,
See Figure 10		 25°C 4.5 V 0.233 Ω
VNO or VNC = 1 V, 1.5 V, 2.5 V,
ICOM = –30 mA		 25°C 0.15
INC(OFF), INO(OFF) NC, NO
OFF leakage current		 VNC or VNO = 4.5 V,
VCOM = 0		 Switch OFF,
See Figure 12		 25°C 5.5 V −6 0.2 6 nA
Full −150 150
INC(ON), INO(ON) NC, NO
ON leakage current		 VNC or VNO = 4.5 V,
VCOM = Open		 Switch ON,
See Figure 13		 25°C 5.5 V −6 2.8 6 nA
Full −150 150
ICOM(ON) COM
ON leakage current		 VNC or VNO = 4.5 V or Open,
VCOM = 4.5 V		 Switch ON,
See Figure 13		 25°C 5.5 V –8 0.47 8 nA
Full −150 150
DIGITAL INPUTS (IN)
VIH Input logic high Full 2.4 5.5 V
VIL Input logic low Full 0 0.8 V
IIH, IIL Input leakage current VIN = 5.5 V or 0 Full 5.5 V −1 1 µA
DYNAMIC
tON Turn-on time VCOM = V+,
RL = 50 Ω,		 CL = 35 pF,
See Figure 15		 25°C 4.5 V to 5.5 V 20 35 ns
Full 40
tOFF Turn-off time VCOM = V+,
RL = 50 Ω,		 CL = 35 pF,
See Figure 15		 25°C 4.5 V to 5.5 V 15 20 ns
Full 35
tBBM Break-before-make time VNC = VNO = V+ / 2,
RL = 50 Ω,		 CL = 35 pF,
See Figure 16		 25°C 4.5 V to 5.5 V 1 12 14.5 ns
Full 1
QC Charge injection CL = 1 nF, VGEN = 0 V, See Figure 19 25°C 5 V 36 pC
CNC(OFF), CNO(OFF) NC, NO
OFF capacitance		 VNC or VNO = V+ or GND,
Switch OFF,		 See Figure 13 25°C 5 V 23 pF
CNC(ON), CNO(ON) NC, NO
ON capacitance		 VNC or VNO = V+ or GND,
Switch ON,		 See Figure 13 25°C 5 V 84 pF
CCOM(ON) COM
ON capacitance		 VCOM = V+ or GND,
Switch ON,		 See Figure 13 25°C 5 V 84 pF
CIN Digital input capacitance VIN = V+ or GND, See Figure 13 25°C 5 V 2.1 pF
BW Bandwidth RL = 50 Ω,
Switch ON,		 See Figure 16 25°C 5 V 100 MHz
OISO OFF isolation RL = 50 Ω,
f = 1 MHz,		 Switch OFF,
See Figure 17		 25°C 5 V –65 dB
XTALK Crosstalk RL = 50 Ω,
f = 1 MHz,		 Switch ON,
See Figure 18		 25°C 5 V –65 dB
THD Total harmonic distortion RL = 600 Ω,
CL = 50 pF,		 f = 600 Hz to 20 kHz,
See Figure 19		 25°C 5 V 0.01%
SUPPLY
I+ Positive supply current VIN = V+ or GND, Switch ON or OFF 25°C 5.5 V 0.1 µA
Full 0.5
(1) TA = 25°C

6.6 Electrical Characteristics for 3.3-V Supply

V+ = 3 V to 3.6 V and TA = −40°C to +125°C (unless otherwise noted)
PARAMETER TEST CONDITIONS TA V+ MIN TYP(1) MAX UNIT
ANALOG SWITCH
VCOM, VNO,VNC Analog signal range 0 V+ V
rpeak Peak ON-state resistance 0 ≤ VNO or VNC ≤ V+,
ICOM = –24 mA,		 Switch ON,
See Figure 10		 25°C 3 V 1.35 2.2 Ω
Full 2.2
ron ON-state resistance VNO or VNC = 2 V,
ICOM = –24 mA,		 Switch ON,
See Figure 10		 25°C 3 V 1.15 1.8 Ω
Full 1.8
∆ron ON-state resistance match between channels VNO or VNC = 2 V, 0.8 V,
ICOM = –24 mA,		 Switch ON,
See Figure 10		 25°C 3 V 0.11 Ω
ron(flat) ON-state resistance flatness 0 ≤ VNO or VNC ≤ V+,
ICOM = –24 mA,		 Switch ON,
See Figure 10		 25°C 3 V 0.225 Ω
VNO or VNC = 2 V, 0.8 V,
ICOM = –24 mA,		 25°C 0.25
INC(OFF),
INO(OFF)		 NC, NO
OFF leakage current		 VNC or VNO = 3 V,
VCOM = 0,		 Switch OFF,
See Figure 11		 25°C 3.6 V 0.2 nA
INC(ON),
INO(ON)		 NC, NO
ON leakage current		 VNC or VNO = 3 V,
VCOM = Open,		 Switch ON,
See Figure 12		 25°C 3.6 V 2.8 nA
ICOM(ON) COM
ON leakage current		 VNC or VNO = 3 V or Open,
VCOM = 3 V,		 Switch ON,
See Figure 12		 25°C 3.6 V 0.47 nA
DIGITAL INPUTS (IN)
VIH Input logic high Full 2 5.5 V
VIL Input logic low Full 0 0.6 V
IIH, IIL Input leakage current VIN = 5.5 V or 0 Full 3.6 V –1 1 µA
DYNAMIC
tON Turn-on time VCOM = V+,
RL = 50 Ω		 CL = 35 pF,
See Figure 15		 25°C 3 V to 3.6 V 30 40 ns
Full 55
tOFF Turn-off time VCOM = V+,
RL = 50 Ω		 CL = 35 pF,
See Figure 15		 25°C 3 V to 3.6 V 20 25 ns
Full 40
tBBM Break-before-make time VNC = VNO = V+ / 2,
RL = 50 Ω		 CL = 35 pF,
See Figure 16		 25°C 3 V to 3.6 V 1 21 29 ns
Full 1
QC Charge injection CL = 1 nF, VGEN = 0 V See Figure 19 25°C 3.3 V 20 pC
CNC(OFF), CNO(OFF) NC, NO OFF capacitance VNC or VNO = V+ or GND,
Switch OFF		 See Figure 13 25°C 3.3 V 23 pF
CNC(ON), CNO(ON) NC, NO ON capacitance VNC or VNO = V+ or GND,
Switch ON		 See Figure 13 25°C 3.3 V 84 pF
CCOM(ON) COM ON capacitance VCOM = V+ or GND,
Switch ON		 See Figure 13 25°C 3.3 V 84 pF
CIN Digital input capacitance VIN = V+ or GND See Figure 13 25°C 3.3 V 2.1 pF
BW Bandwidth RL = 50 Ω,
Switch ON		 See Figure 16 25°C 3.3 V 100 MHz
OISO OFF isolation RL = 50 Ω,
f = 1 MHz		 Switch OFF,
See Figure 17		 25°C 3.3 V –65 dB
XTALK Crosstalk RL = 50 Ω,
f = 1 MHz		 Switch ON,
See Figure 18		 25°C 3.3 V –65 dB
THD Total harmonic distortion RL = 600 Ω,
CL = 50 pF		 f = 600 Hz to 20 kHz,
See Figure 19		 25°C 3.3 V 0.015%
SUPPLY
I+ Positive supply current VIN = V+ or GND Switch ON or OFF 25°C 3.6 V 0.1 μA
Full 0.5
(1) TA = 25°C

6.7 Electrical Characteristics For 2.5-V Supply

V+ = 2.3 V to 2.7 V and TA = −40°C to +125°C (unless otherwise noted)
PARAMETER TEST CONDITIONS TA V+ MIN TYP(1) MAX UNIT
ANALOG SWITCH
VCOM, VNO,VNC Analog signal range 0 V+ V
rpeak Peak ON-state resistance 0 ≤ VNO or VNC ≤ V+,
ICOM = –8 mA		 Switch ON,
See Figure 10		 25°C 2.5 V 1.7 2.9 Ω
Full 2.9
ron ON-state resistance VNO or VNC = 1.8 V,
ICOM = –8 mA		 Switch ON,
See Figure 10		 25°C 2.5 V 1.45 2.3 Ω
Full 2.3
∆ron ON-state resistance match between channels VNO or VNC = 0.8 V, 1.8 V,
ICOM = –8 mA		 Switch ON,
See Figure 10		 25°C 2.5 V 0.7 Ω
ron(flat) ON-state resistance flatness 0 ≤ VNO or VNC ≤ V+,
ICOM = –8 mA		 Switch ON,
See Figure 10		 25°C 2.5 V 0.5 Ω
VNO or VNC = 0.8 V, 1.8 V,
ICOM = –8 mA		 25°C 0.45
INC(OFF), INO(OFF) NC, NO
Off leakage current		 VNC or VNO = 2.3 V,
VCOM = 0		 Switch OFF,
See Figure 11		 25°C 2.7 V 0.2 nA
INC(ON), INO(ON) NC, NO
On leakage current		 VNC or VNO = 2.3 V,
VCOM = Open		 Switch ON,
See Figure 12		 25°C 2.7 V 2.8 nA
ICOM(ON) COM
On leakage current		 VNC or VNO = 2.3 V or Open,
VCOM = 2.3 V		 Switch ON,
See Figure 12		 25°C 2.7 V 0.47 nA
DIGITAL INPUTS (IN)
VIH Input logic high Full 1.8 5.5 V
VIL Input logic low Full 0 0.6 V
IIH, IIL Input leakage current VIN = 5.5 V or 0 Full 2.7 V −1 1 µA
DYNAMIC
tON Turn-on time VCOM = V+,
RL = 50 Ω,		 CL = 35 pF,
See Figure 15		 25°C 2.3 V to 2.7 V 40 55 ns
Full 70
tOFF Turn-off time VCOM = V+,
RL = 50 Ω,		 CL = 35 pF,
See Figure 15		 25°C 2.3 V to 2.7 V 30 40 ns
Full 55
tBBM Break-before-make time VNC = VNO = V+ / 2,
RL = 50 Ω,		 CL = 35 pF,
See Figure 16		 25°C 2.3 V to 2.7 V 1 33 39 ns
Full 1
QC Charge injection CL = 1 nF, VGEN = 0 V, See Figure 19 25°C 2.5 V 13 pC
CNC(OFF),
CNO(OFF)		 NC, NO
OFF capacitance		 VNC or VNO = V+ or GND,
Switch OFF,		 See Figure 14 25°C 2.5 V 23 pF
CNC(ON),
CNO(ON)		 NC, NO
ON capacitance		 VNC or VNO = V+ or GND,
Switch ON,		 See Figure 14 25°C 2.5 V 84 pF
CCOM(ON) COM
ON capacitance		 VCOM = V+ or GND,
Switch ON,		 See Figure 14 25°C 2.5 V 84 pF
CIN Digital input capacitance VIN = V+ or GND, See Figure 14 25°C 2.5 V 2.1 pF
BW Bandwidth RL = 50 Ω,
Switch ON,		 See Figure 16 25°C 2.5 V 100 MHz
OISO OFF isolation RL = 50 Ω,
f = 1 MHz,		 Switch OFF,
See Figure 17		 25°C 2.5 V –64 dB
XTALK Crosstalk RL = 50 Ω,
f = 1 MHz,		 Switch ON,
See Figure 18		 25°C 2.5 V –64 dB
THD Total harmonic distortion RL = 600 Ω,
CL = 50 pF,		 f = 600 Hz to 20 kHz,
See Figure 19		 25°C 2.5 V 0.025%
SUPPLY
I+ Positive supply current VIN = V+ or GND, Switch ON or OFF 25°C 2.7 V 0.1 μA
Full 0.5
(1) TA = 25°C

6.8 Electrical Characteristics For 1.8-V Supply

V+ = 1.65 V to 1.95 V and TA = −40°C to +125°C (unless otherwise noted
PARAMETER TEST CONDITIONS TA V+ MIN TYP(1) MAX UNIT
ANALOG SWITCH
VCOM, VNO,VNC Analog signal range 0 V+ V
rpeak Peak
ON-state resistance		 0 ≤ VNO or VNC ≤ V+,
ICOM = −2 mA		 Switch ON,
See Figure 10		 25°C 1.8 V 4 5.2 Ω
Full 5.2
ron ON-state resistance VNO or VNC = 1.5 V,
ICOM = −2 mA		 Switch ON,
See Figure 10		 25°C 1.8 V 1.7 3.5 Ω
Full 3.5
∆ron ON-state resistance match between channels VNO or VNC = 0.6 V, 1.5 V,
ICOM = −2 mA		 Switch ON,
See Figure 10		 25°C 1.8 V 0.7 Ω
Full 0.7
ron(flat) ON-state resistance flatness 0 ≤ VNO or VNC ≤ V+,
ICOM = −2 mA		 Switch ON,
See Figure 11		 25°C 1.8 V 1.85 Ω
Full 1.85
VNO or VNC = 0.6 V, 1.5 V,
ICOM = −2 mA		 25°C 0.9
Full 0.9
INC(OFF), INO(OFF) NC, NO
Off leakage current		 VNC or VNO = 1.65 V,
VCOM = 0		 Switch OFF,
See Figure 11		 25°C 1.95 V 0.2 nA
INC(ON), INO(ON) NC, NO
On leakage current		 VNC or VNO = 1.65 V,
VCOM = Open		 Switch ON,
See Figure 12		 25°C 1.95 V 2.8 nA
ICOM(ON) COM
On leakage current		 VNC or VNO = 1.65 V or Open,
VCOM = 1.65 V		 Switch ON,
See Figure 12		 25°C 1.95 V 0.47 nA
DIGITAL INPUTS (IN)
VIH Input logic high Full 1.5 5.5 V
VIL Input logic low Full 0 0.6 V
IIH, IIL Input leakage current VIN = 5.5 V or 0 Full 1.95 V −1 1 µA
DYNAMIC
tON Turn-on time VCOM = V+,
RL = 50 Ω,		 CL = 35 pF,
See Figure 15		 25°C 1.65 V to 1.95 V 65 70 ns
Full 95
tOFF Turn-off time VCOM = V+,
RL = 50 Ω,		 CL = 35 pF,
See Figure 15		 25°C 1.65 V to 1.95 V 40 55 ns
Full 70
tBBM Break-before-make time VNC = VNO = V+ / 2,
RL = 50 Ω,		 CL = 35 pF,
See Figure 15		 25°C 1.65 V to 1.95 V 1 60 72 ns
Full 0.5
QC Charge injection CL = 1 nF, VGEN = 0 V, See Figure 19 25°C 1.8 V 13 pC
CNC(OFF),
CNO(OFF)		 NC, NO
OFF capacitance		 VNC or VNO = V+ or GND,
Switch OFF,		 See Figure 14 25°C 1.8 V 23 pF
CNC(ON),
CNO(ON)		 NC, NO
ON capacitance		 VNC or VNO = V+ or GND,
Switch ON,		 See Figure 14 25°C 1.8 V 84 pF
CCOM(ON) COM
ON capacitance		 VCOM = V+ or GND,
Switch ON,		 See Figure 14 25°C 1.8 V 84 pF
CIN Digital input capacitance VIN = V+ or GND, See Figure 14 25°C 1.8 V 2.1 pF
BW Bandwidth RL = 50 Ω,
Switch ON,		 See Figure 16 25°C 1.8 V 100 MHz
OISO OFF isolation RL = 50 Ω,
f = 1 MHz,		 Switch OFF,
See Figure 17		 25°C 1.8 V –63 dB
XTALK Crosstalk RL = 50 Ω,
f = 1 MHz,		 Switch ON,
See Figure 18		 25°C 1.8 V –63 dB
SUPPLY
I+ Positive supply current VIN = V+ or GND, Switch ON or OFF 25°C 1.95 V 0.1 μA
Full 0.5
(1) TA = 25°C

6.9 Typical Characteristics

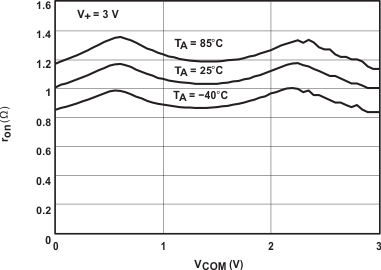

TS5A3159-Q1 Fig2_ron_vs_VCOM_SCDS336.gif
Figure 1. ron vs VCOM
TS5A3159-Q1 Fig5_tON_OFF_vs_Vplus_SCDS336.gif
Figure 3. tON/OFF vs V+
TS5A3159-Q1 Fig7_Logic_Threshold_vs_Power_Supply_SCDS336.gif
Figure 5. Logic Threshold vs Power Supply
TS5A3159-Q1 Fig9_Power_Supply_Current_vs_Temperature_SCDS336.gif
Figure 7. Power-Supply Current vs Temperature
TS5A3159-Q1 Fig4_Leakage_Current_vs_Temperature_SCDS336.gif
Figure 2. Leakage Current vs Temperature
TS5A3159-Q1 Fig6_tON_OFF_vs_Temperature_SCDS336.gif
Figure 4. tON/OFF vs Temperature
TS5A3159-Q1 Fig8_Frequency_Response_SCDS336.gif
Figure 6. Frequency Response
TS5A3159-Q1 Fig10_Total_Harmonic_Distortion_vs_Frequency_SCDS336.gif
Figure 8. Total Harmonic Distortion (THD) vs Frequency
