Electrical Characteristics for 3-V Supply

VCC = 2.7 V to 3.6 V, TA = –40°C to 85°C, VIH = 1.4 V, VIL = 0.5 V (unless otherwise noted).(2)(1)
PARAMETER TEST CONDITIONS TA MIN TYP(3) MAX UNIT
ANALOG SWITCH
VCOM, VNO Analog signal range 0 VCC V
Ron ON-state resistance VCC = 2.7 V, ICOM  = –100 mA,
VNO  = 1.5 V
25°C 0.7 0.9
Full 1.1
ΔRon ON-state resistance match between channels(4) VCC = 2.7 V, ICOM  = –100 mA,
VNO  = 1.5 V
25°C 0.03 0.05
Full 0.15
Ron(flat) ON-state resistance flatness(5) VCC = 2.7 V, ICOM  = –100 mA,
VNO  = 1 V, 1.5 V, 2 V
25°C 0.23 0.4
Full 0.5
INO(OFF) NO
OFF leakage current(6)
VCC = 3.6 V, VCOM  = 0.3 V, 3 V,
VNO  = 3 V, 0.3 V
25°C –2 1 2 nA
Full –18 18
ICOM(OFF) COM
OFF leakage current(6)
VCC = 3.6 V, VCOM  = 0.3 V, 3 V,
VNO  = 3 V, 0.3 V
25°C –2 1 2 nA
Full –18 18
ICOM(ON) COM
ON leakage current(6)
VCC = 3.6 V, VCOM  = 0.3 V, 3 V,
VNO = 0.3 V, 3 V, or floating
25°C –2.5 0.01 2.5 nA
Full –5 5
DYNAMIC
tON Turn-on time VNO  = 1.5 V, RL = 50 Ω,
CL = 35 pF, See Figure 1
25°C 5 14 ns
Full 15
tOFF Turn-off time VNO  = 1.5 V, RL = 50 Ω,
CL = 35 pF, See Figure 1
25°C 4 9 ns
Full 10
QC Charge injection VGEN = 0, RGEN = 0, CL = 1 nF,
See Figure 5
25°C 3 pC
CNO(OFF) NO OFF capacitance f = 1 MHz, See Figure 2 25°C 23 pF
CCOM(OFF) COM OFF capacitance f = 1 MHz, See Figure 2 25°C 20 pF
CCOM(ON) COM ON capacitance f = 1 MHz, See Figure 2 25°C 43 pF
BW Bandwidth RL = 50 Ω, Switch ON 25°C 125 MHz
OISO OFF isolation(7) RL = 50 Ω, CL = 5 pF,
See Figure 3
f = 10 MHz 25°C –40 dB
f = 1 MHz –62
XTALK Crosstalk RL = 50 Ω, CL = 5 pF,
See Figure 3
f = 10 MHz 25°C –73 dB
f = 1 MHz –95
THD Total harmonic distortion f = 20 Hz to 20 kHz, VCOM = 2 VP-P RL = 32 Ω 25°C 0.04%
RL = 600 Ω 0.003%
DIGITAL CONTROL INPUTS (IN1–IN4)
VIH Input logic high Full 1.4 V
VIL Input logic low Full 0.5 V
IIN Input leakage current VI = 0 or VCC 25°C 0.5 1 nA
Full –20 20
SUPPLY
VCC Power-supply range 1.6 3.6 V
ICC Positive-supply current VCC = 3.6 V, VIN = 0 or VCC 25°C 0.075 μA
Full 0.75
Parts are tested at 85°C and specified by design and correlation over the full temperature range.
The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum.
Typical values are at VCC = 3 V, TA = 25°C.
Δron = ron(max) – ron(min)
Flatness is defined as the difference between the maximum and minimum value of ron as measured over the specified analog signal ranges.
Leakage parameters are 100% tested at the maximum-rated hot operating temperature and specified by correlation at TA = 25°C.
OFF isolation = 20log10 (VCOM/VNO), VCOM = output, VNO = input to OFF switch
TS3A4751 swtimes.gifFigure 1. Switching Times
TS3A4751 nocap_cds227.gifFigure 2. NO and COM Capacitance

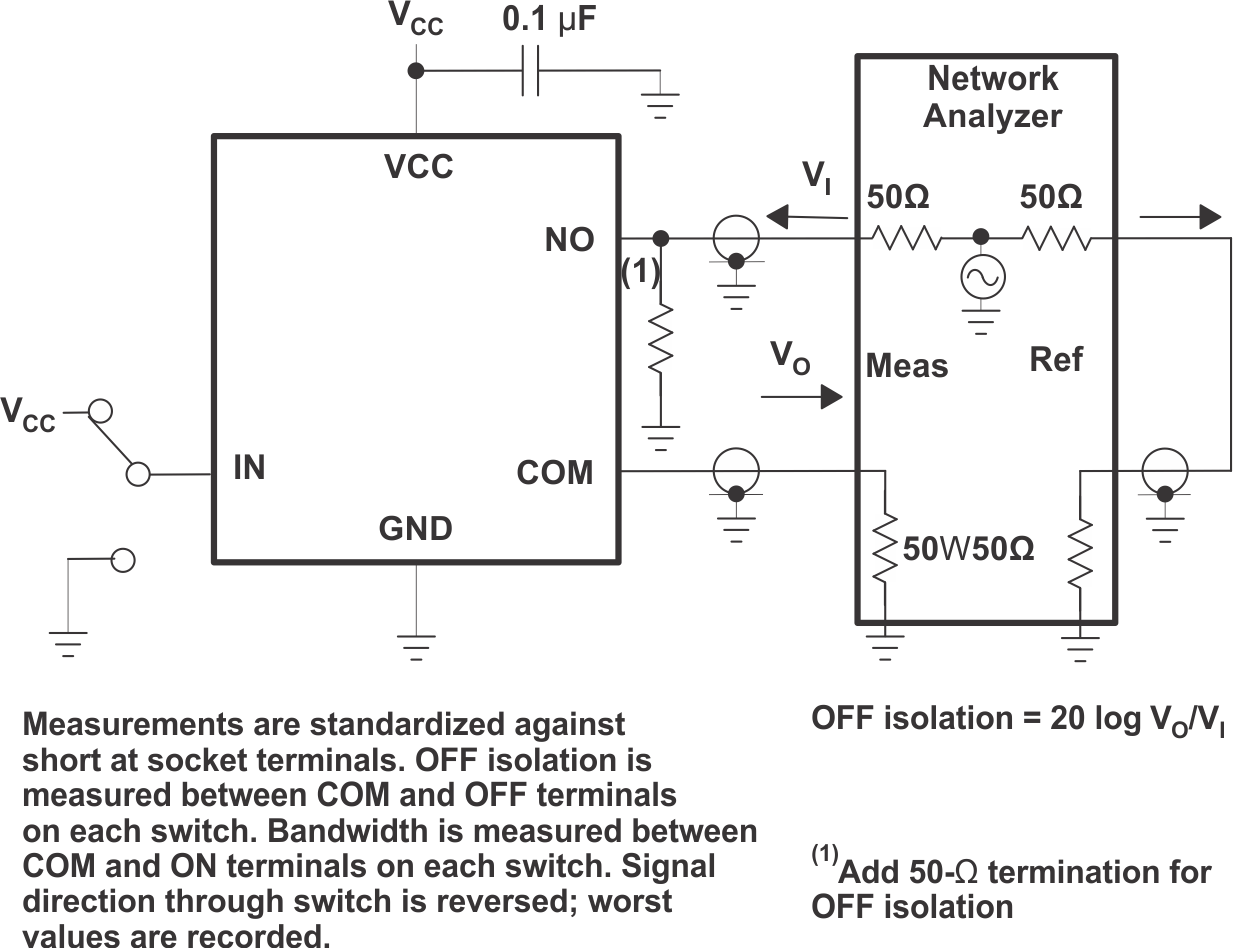

TS3A4751 offiso_cds227.gifFigure 3. OFF Isolation, Bandwidth, and Crosstalk
TS3A4751 pmi_cds227.gif
CL includes probe and jig capacitance.
Figure 4. Total Harmonic Distortion (THD)
TS3A4751 chinj_cds227.gifFigure 5. Charge Injection (QC)
