6.7 Typical Characteristics (PVIN = 5 V)

TA = 25°C, unless otherwise noted.

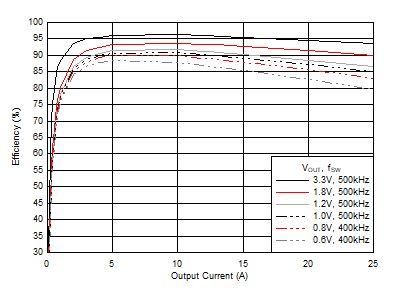

Figure 6-8 Efficiency vs Output Current
COUT = COUTmin
Figure 6-10 Output Voltage Ripple
VOUT = 1.8 V fSW = 500 kHz
Figure 6-12 Safe Operating Area

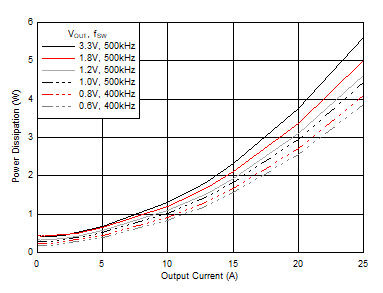

Figure 6-9 Power Dissipation vs Output Current
VOUT = 1 V fSW = 500 kHz
Figure 6-11 Safe Operating Area
VOUT = 2.5 V fSW = 500 kHz
Figure 6-13 Safe Operating Area
