Typical Characteristics

TPS92613-Q1 D001_SLVSEC4.gif

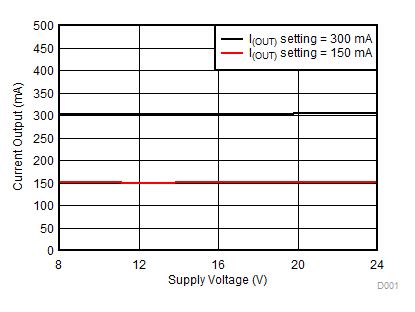

Figure 2. Output Current vs Supply Voltage
TPS92613-Q1 D003_SLVSEC4.gif

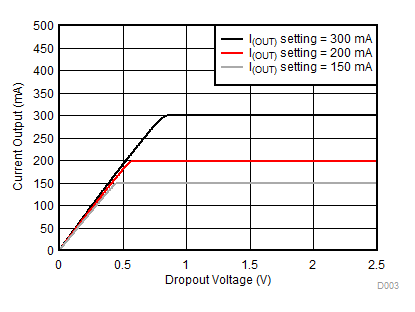

Figure 4. Output Current vs Dropout Voltage
TPS92613-Q1 D005_SLVSEC4.gif

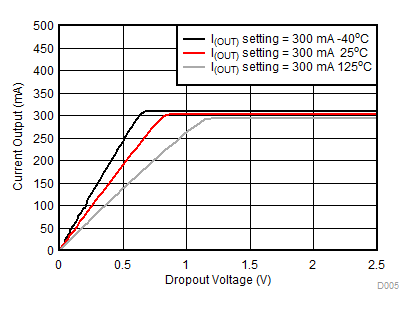

Figure 6. Output Current vs Dropout Voltage
TPS92613-Q1 Typ-wave-01-slvsec4.gif
Ch. 1 = V(SUPPLY) Ch. 3 = V(PWM) Ch. 4 = I(OUT)
ƒ(PWM) = 200 Hz Duty cycle = 50%
Figure 8. PWM Dimming at 200 Hz
TPS92613-Q1 Typ-wave-03-slvsec4.gif
Ch. 1 = V(SUPPLY) Ch. 2 = FAULT Ch. 3 = V(OUT)
Ch. 4 = I(OUT) f(PWM) = 1000 Hz Duty cycle = 30%
SUPPLY dimming between 2.5 V and 12 V FAULT floating
Figure 10. Supply Dimming at 1 kHz
TPS92613-Q1 Typ-wave-05-slvsec4.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 3 = FAULT
Ch. 4 = I(OUT)

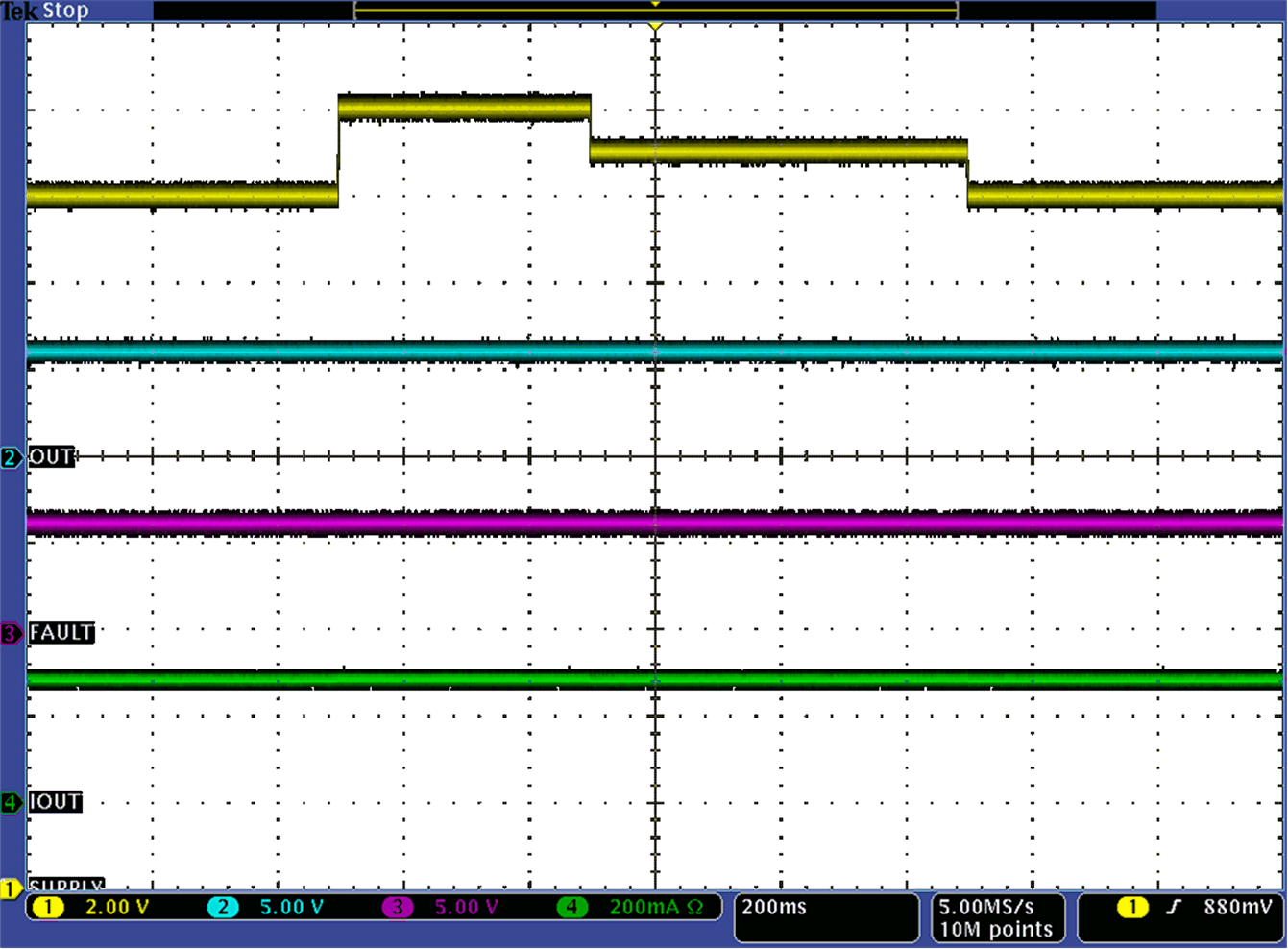

Figure 12. Transient Overvoltage

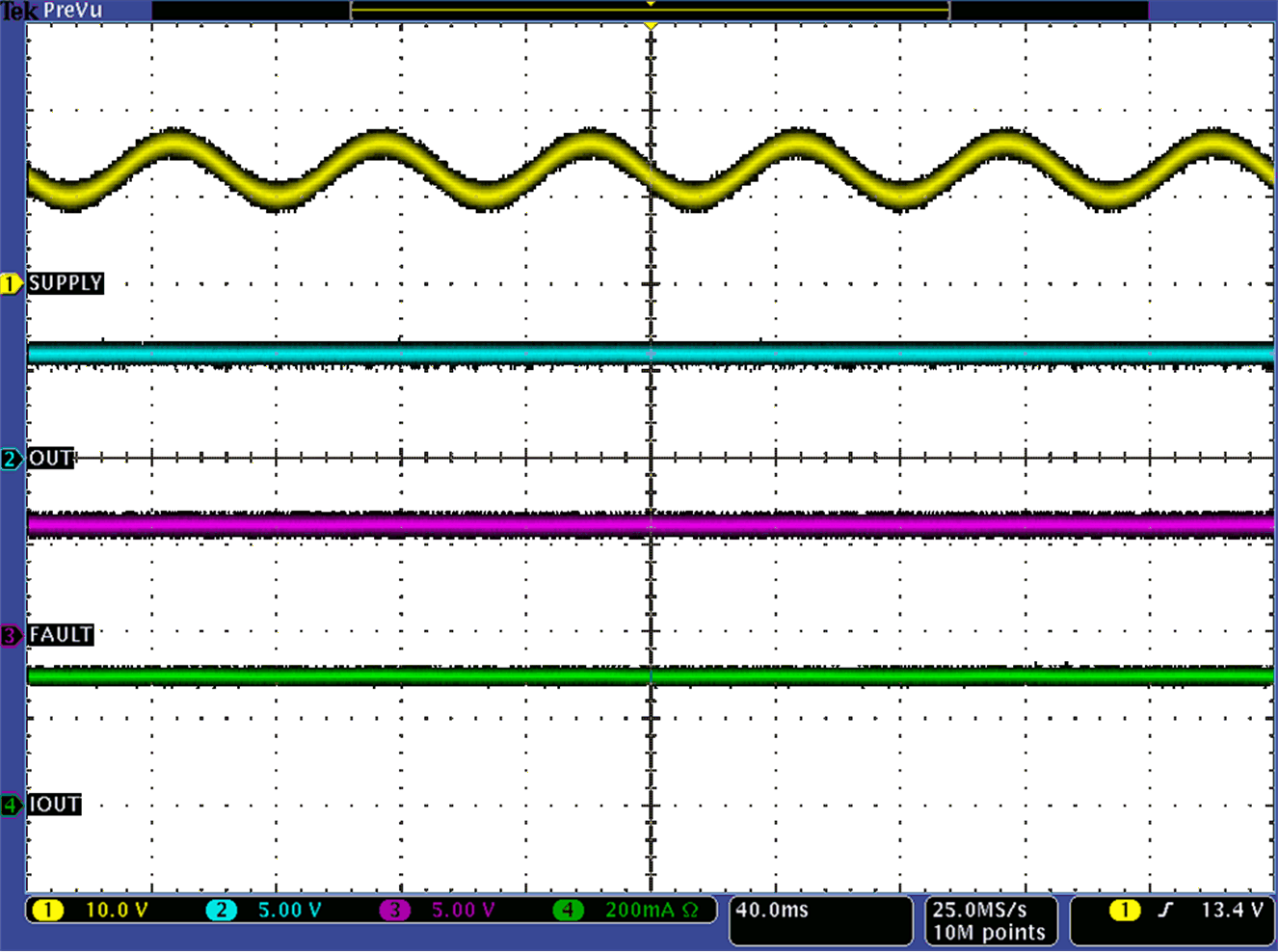

TPS92613-Q1 Typ-wave-07-slvsec4.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 3 = FAULT
Ch. 4 = I(OUT)
Figure 14. Superimposed Alternating Voltage, 15 Hz
TPS92613-Q1 Typ-wave-09-slvsec4.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 3 = FAULT
Ch. 4 = I(OUT)
Figure 16. Slow Decrease and Quick Increase of Supply Voltage
TPS92613-Q1 Typ-wave-11-slvsec4.gif
Ch. 1 = V(OUT) Ch. 2 = FAULT Ch. 4 = I(OUT)
Figure 18. LED Open-Circuit Protection and Recovery
TPS92613-Q1 D002_SLVSEC4.gif

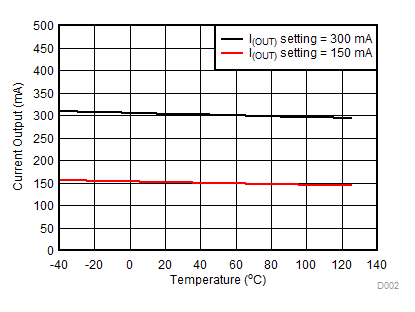

Figure 3. Output Current vs Temperature
TPS92613-Q1 D004_SLVSEC4.gif
Figure 5. Output Current vs Dropout Voltage
TPS92613-Q1 D006_SLVSEC4.gif

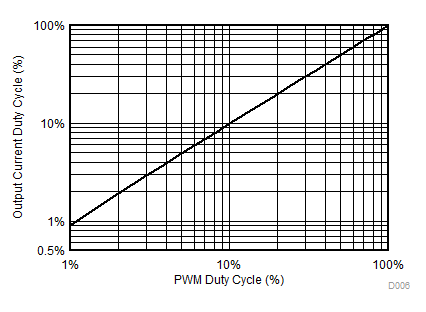

Figure 7. PWM Output Duty Cycle vs Input Duty Cycle
TPS92613-Q1 Typ-wave-02-slvsec4.gif
Ch. 1 = V(SUPPLY) Ch. 3 = V(PWM) Ch. 4 = I(OUT)
ƒ(PWM) = 2 kHz Duty cycle = 50%
Figure 9. PWM Dimming at 2 kHz
TPS92613-Q1 Typ-wave-04-slvsec4.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 3 = FAULT
Ch. 4 = I(OUT)

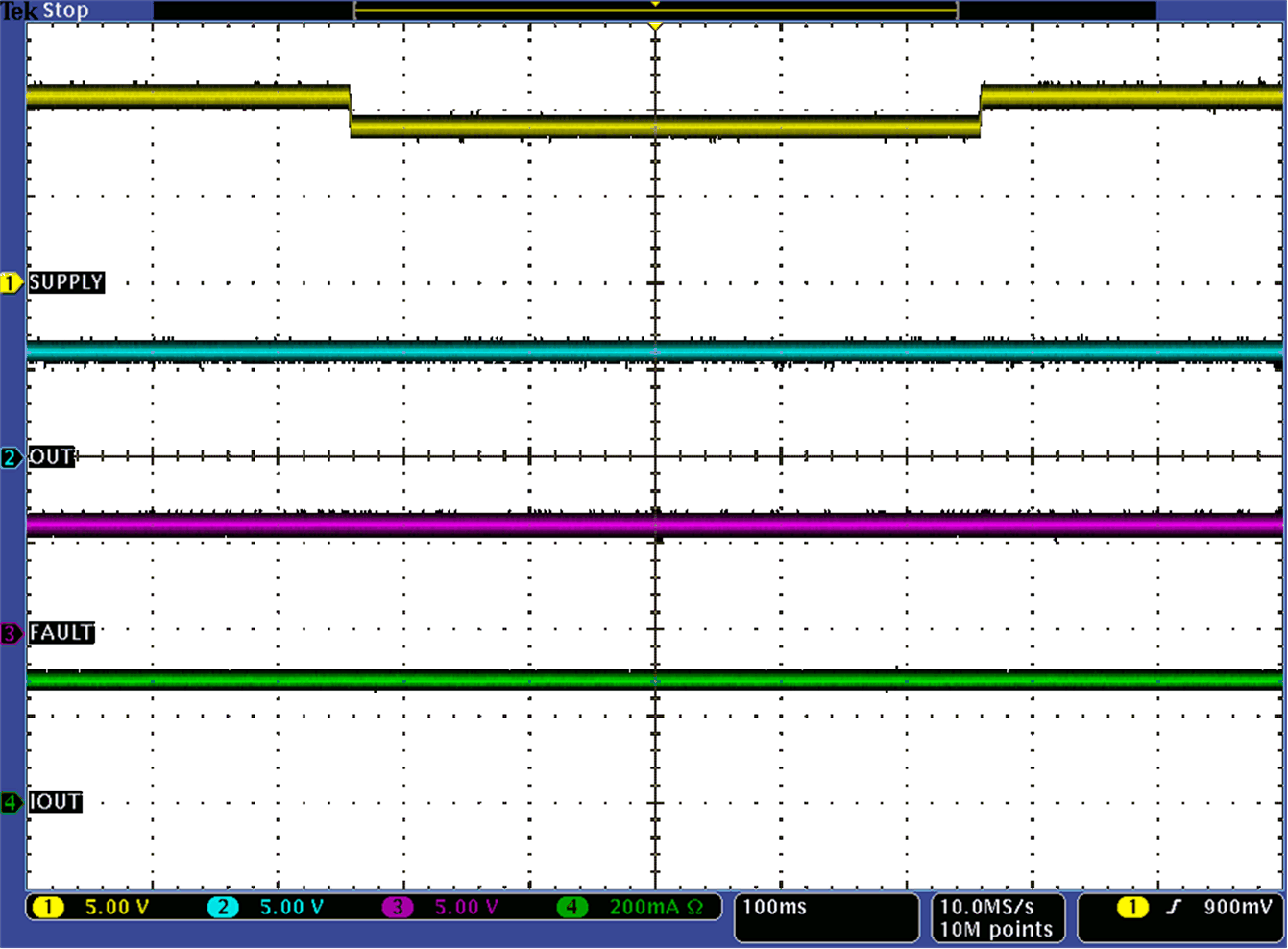

Figure 11. Transient Undervoltage
TPS92613-Q1 Typ-wave-06-slvsec4.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 3 = FAULT
Ch. 4 = I(OUT)
Figure 13. Jump Start
TPS92613-Q1 Typ-wave-08-slvsec4.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 3 = FAULT
Ch. 4 = I(OUT)
Figure 15. Superimposed Alternating Voltage, 1 kHz
TPS92613-Q1 Typ-wave-10-slvsec4.gif
Ch. 1 = SUPPLY Ch. 2 = V(OUT) Ch. 3 = FAULT
Ch. 4 = I(OUT)
Figure 17. Slow Decrease and Slow Increase of Supply Voltage
TPS92613-Q1 Typ-wave-12-slvsec4.gif
Ch. 1 = V(OUT) Ch. 2 = FAULT Ch. 4 = I(OUT)

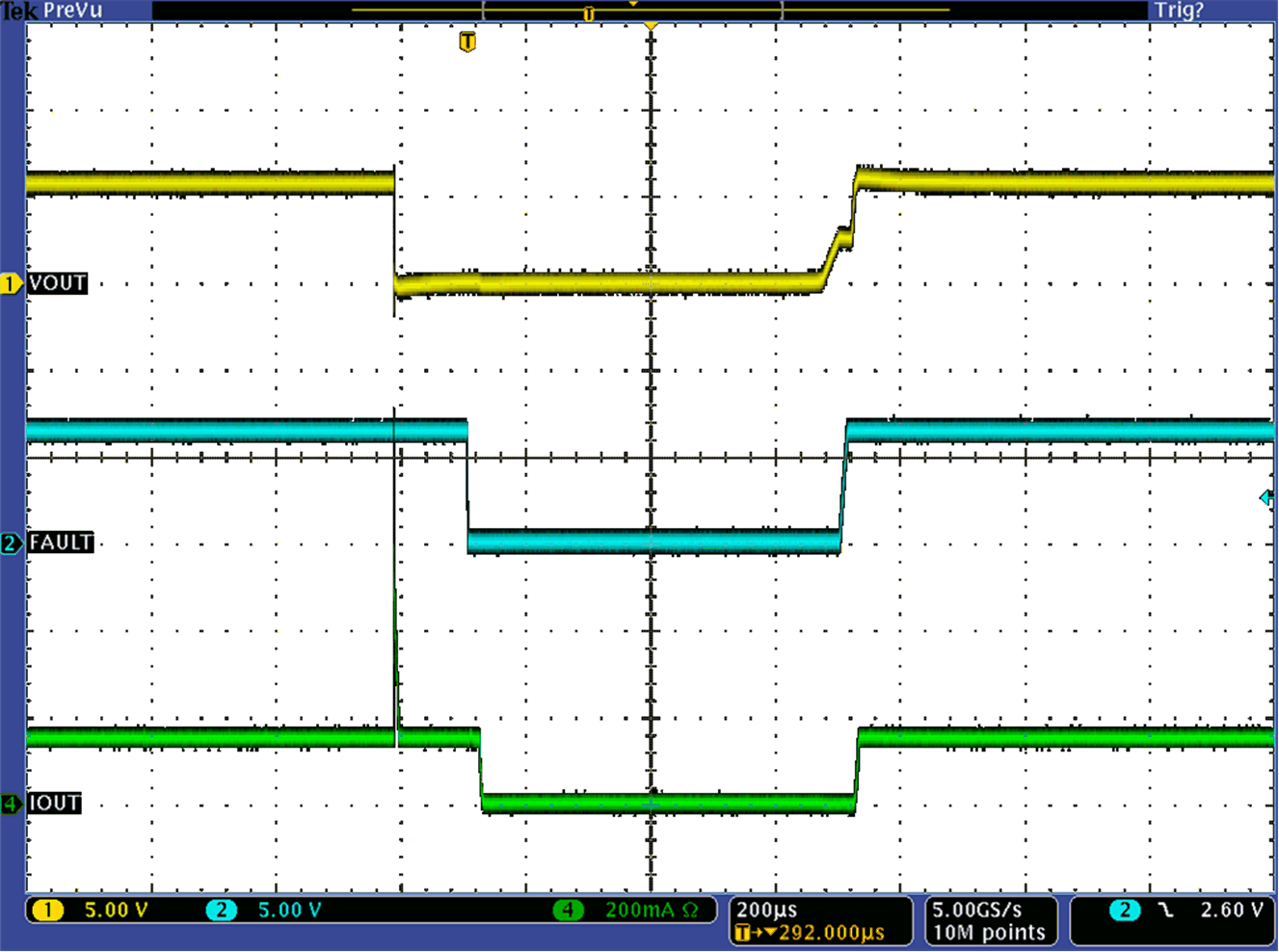

Figure 19. LED Short-Circuit Protection and Recovery
