9.1.1.1 Adjustable Operation

The TPS7A83A can be used either with the internal ANY-OUT network or by using external resistors. Using the ANY-OUT network allows the TPS7A83A to be programmed from 0.8 V to 3.95 V. For an output voltage range greater than 3.95 V and up to 5.2 V, external resistors must be used. This configuration is referred to as the adjustable configuration of the TPS7A83A throughout this document. Figure 9-1 shows that the output voltage is set by two resistors. 0.75% accuracy can be achieved with an external BIAS for VIN lower than 2.2 V.

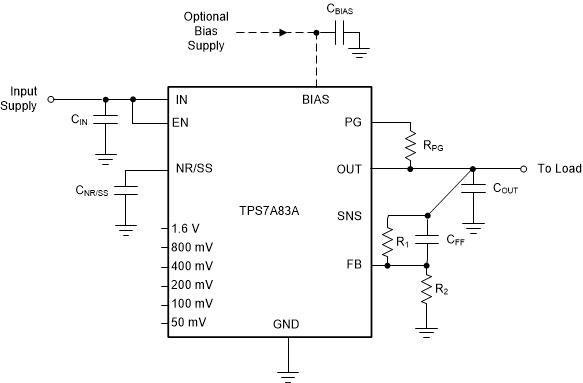

GUID-C8A36E74-0A86-47E3-88A3-D28897144FE1-low.gifFigure 9-1 Adjustable Operation

Use Equation 1 to calculate R1 and R2 for any output voltage range. This resistive network must provide a current equal to or greater than 5 μA for dc accuracy. Use an R1 of approximately 12 kΩ to optimize the noise and PSRR.

Equation 1. VOUT = VNR/SS × (1 + R1 / R2)

Table 9-1 shows the resistor combinations required to achieve several common rails using standard 1%-tolerance resistors.

Table 9-1 Recommended Feedback-Resistor Values(1)
NOMINAL OUTPUT VOLTAGE
(V)		 FEEDBACK RESISTOR VALUES CALCULATED OUTPUT VOLTAGE
(V)
R1 (kΩ) R2 (kΩ)
0.90 12.4 100 0.899
0.95 12.4 66.5 0.949
1.00 12.4 49.9 0.999
1.10 12.4 33.2 1.099
1.20 12.4 24.9 1.198
1.50 12.4 14.3 1.494
1.80 12.4 10 1.798
1.90 12.1 8.87 1.890
2.50 12.4 5.9 2.480
2.85 12.1 4.75 2.838
3.00 12.1 4.42 2.990
3.30 11.8 3.74 3.324
3.60 12.1 3.48 3.582
4.50 11.8 2.55 4.502
5.00 12.4 2.37 4.985
(1) R1 is connected from OUT to FB; R2 is connected from FB to GND.
