6.6 Typical Characteristics

at TA = 25°C, VIN = 1.4 V or VIN = VOUT(NOM) + 0.3 V (whichever is greater), VBIAS = open, VOUT(NOM) = 0.8 V, VEN = 1.1 V, COUT = 47 µF, CNR/SS = 0 nF, CFF = 0 nF, and PG pin pulled up to VIN with 100 kΩ (unless otherwise noted)

VIN = 1.3 V, VBIAS = 5 V, VOUT = 1.0 V, COUT = 10 µF,
CBIAS = 0.1 μF, CSS = 10 nF
Figure 6-1 PSRR vs Frequency and IOUT
IOUT = 2 A, VBIAS = 5 V, VOUT = 1.0 V, COUT = 10 µF,
CBIAS = 0.1 μF, CSS = 10 nF
Figure 6-3 PSRR vs Frequency and VIN for IOUT = 2 A
IOUT = 3 A, VBIAS = 5 V, VOUT = 1.0 V, CBIAS = 0.1 μF,
CSS = 10 nF
Figure 6-5 PSRR vs Frequency and COUT
VIN = VEN = 1.3 V, VBIAS = 5 V, VOUT = 1.0 V, CIN = 10 μF, COUT = 10 μF, CSS = 10 nF
Figure 6-7 BIAS PSRR vs Frequency and IOUT
VIN = 1.3 V, VOUT = 1.0 V, VBIAS = 5 V, COUT = 10 µF, CSS = 10 nF, CBIAS = 0.1 μF, RMS noise BW = 10 Hz to 100 kHz
Figure 6-9 Spectral Noise Density vs Frequency and IOUT
VIN = 1.3 V, VOUT = 1.0 V, VBIAS = 5 V, CSS = 10 nF,
CBIAS = 0.1 μF, RMS noise BW = 10 Hz to 100 kHz
Figure 6-11 Spectral Noise Density vs Frequency and COUT
VIN = 1.3 V, VOUT = 1.0 V, VBIAS = 5.0 V, IOUT = 3 A,
COUT = 10 µF, CSS = 1 nF
Figure 6-13 Start-Up Waveform for CSS = 1 nF
VIN = 1.3 V, VOUT = 1.0 V, VBIAS = 5.0 V, IOUT = 3 A,
COUT = 10 µF, CSS = 22 nF
Figure 6-15 Start-Up Waveform for CSS = 22 nF
IOUT, DC = 1.5 A, COUT = 10 µF,
CSS = CFF = 10 nF, slew rate = 1 A/µs

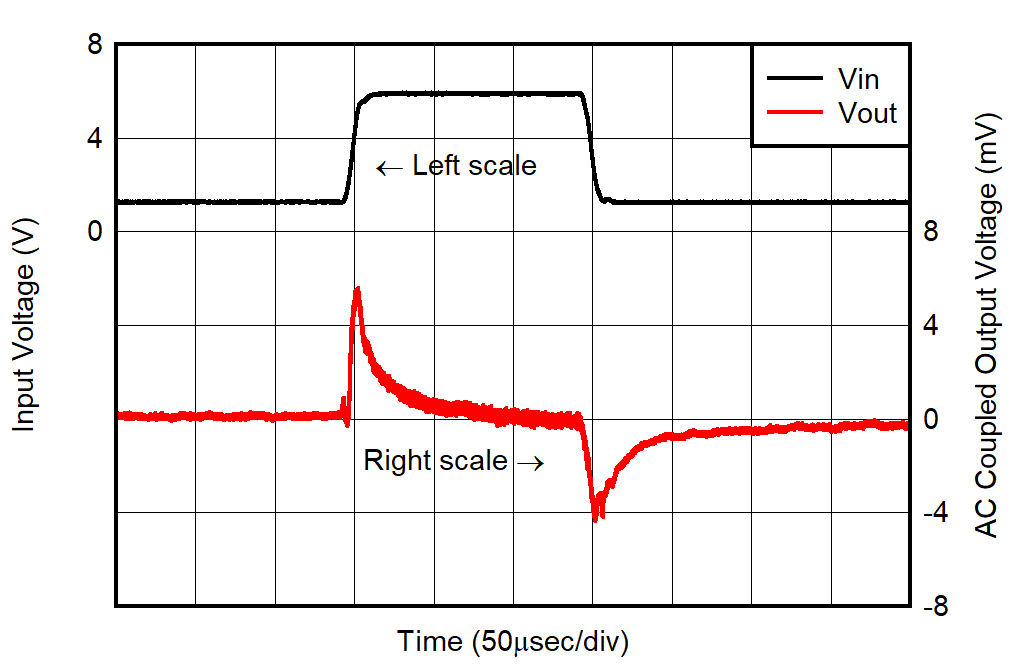

Figure 6-17 Line Transient for VOUT With Bias
VBIAS = 5 V, VOUT = 1.0 V
Figure 6-19 IN-to-OUT Dropout Voltage vs Output Current
VIN = 1.25 V, VBIAS = 5 V, VOUT = 1.0 V
Figure 6-21 Load Regulation vs 0-mA to 50-mA Output Current
VOUT = 1.0 V, VBIAS = 5 V, IOUT = 50 mA

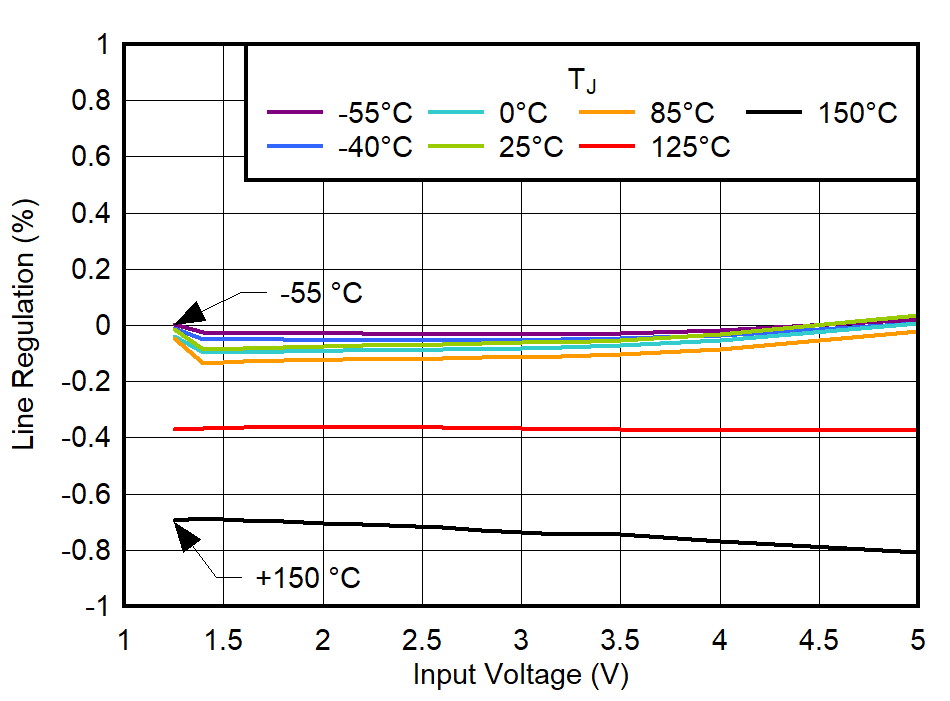

Figure 6-23 Line Regulation vs Input Voltage
VOUT = 1.0 V, VBIAS = 5.0 V, IOUT = 50 mA

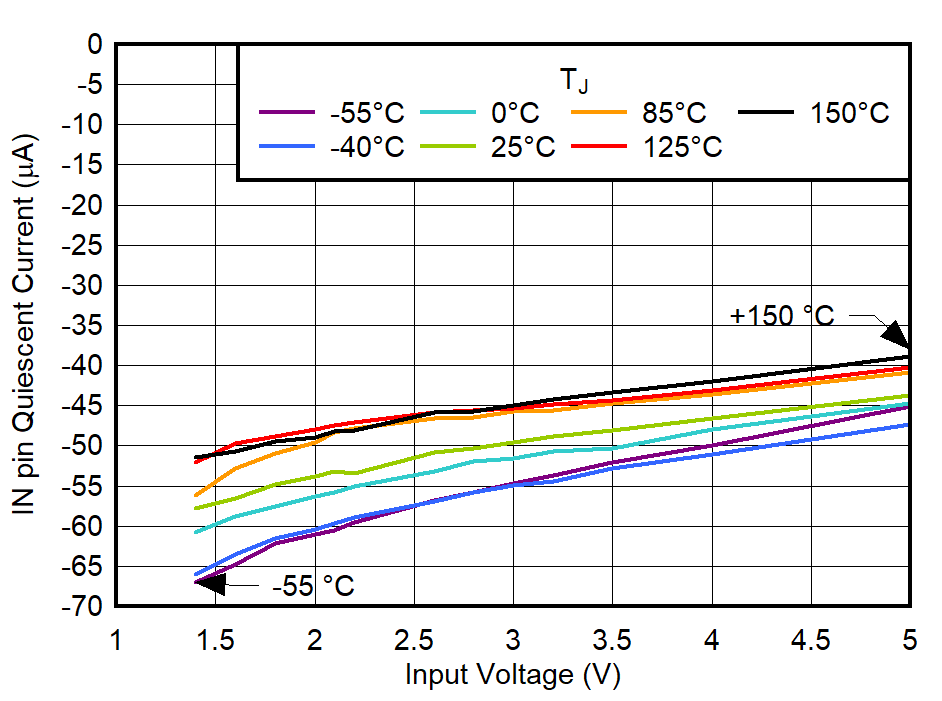

Figure 6-25 IN Pin Quiescent Current vs
Input Voltage
VOUT = 1.0 V, VBIAS = 5.0 V, IOUT = 3 A

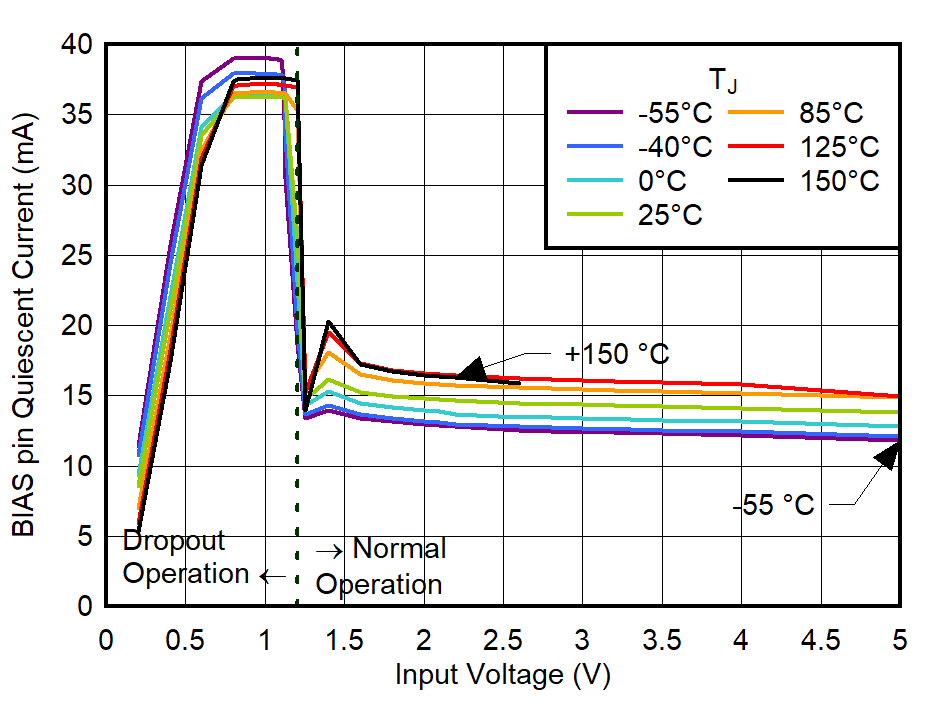

Figure 6-27 BIAS Pin Quiescent Current vs
Input Voltage
VBIAS = 5 V, VEN = 0 V

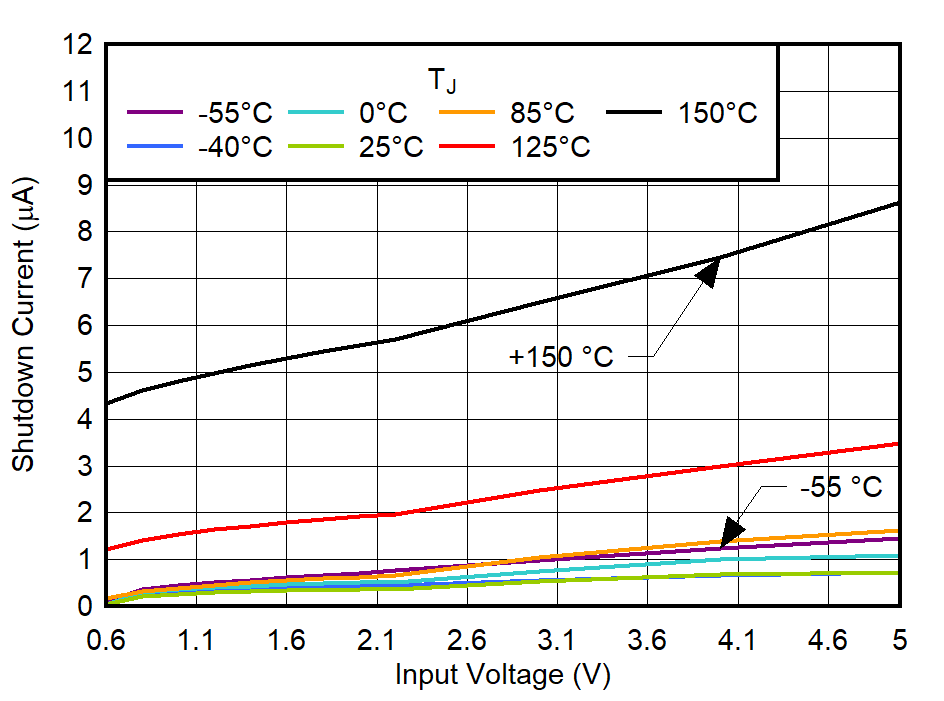

Figure 6-29 Shutdown Current (GND Pin) vs
Input Voltage
Temperature limited because of power dissipation
Figure 6-31 Current Limit vs Output Voltage
IOUT = 1 A, VBIAS = 5 V, VOUT = 1.0 V, COUT = 10 µF,
CBIAS = 0.1 μF, CSS = 10 nF
Figure 6-2 PSRR vs Frequency and VIN for IOUT = 1 A
IOUT = 3 A, VBIAS = 5 V, VOUT = 1.0 V, COUT = 10 µF,
CBIAS = 0.1 μF, CSS = 10 nF
Figure 6-4 PSRR vs Frequency and VIN for IOUT = 3 A
IOUT = 3 A, VBIAS = 5 V, VOUT = 1.0 V, CBIAS = 0.1 μF,
COUT = 10 μF
Figure 6-6 PSRR vs Frequency and CSS
VIN = VEN = 1.3 V, VOUT = 1.0 V, CIN = 10 μF, COUT = 10 μF, CSS = 10 nF
Figure 6-8 BIAS PSRR vs Frequency and VBIAS
VIN = 1.3 V, VOUT = 1.0 V, COUT = 10 µF, CSS = 10 nF,
CBIAS = 0.1 μF, RMS noise BW = 10 Hz to 100 kHz

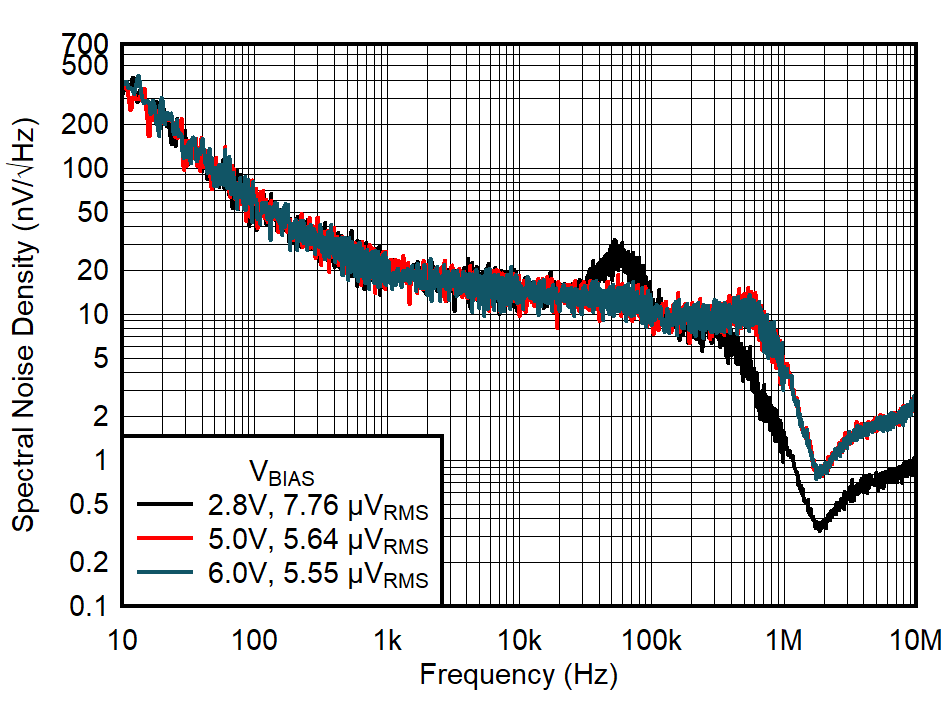

Figure 6-10 Spectral Noise Density vs Frequency and VBIAS
VIN = 1.3 V, VOUT = 1.0 V, VBIAS = 5 V, COUT = 10 μF,
CBIAS = 0.1 μF, RMS noise BW = 10 Hz to 100 kHz
Figure 6-12 Spectral Noise Density vs Frequency and CSS
VIN = 1.3 V, VOUT = 1.0 V, VBIAS = 5.0 V, IOUT = 3 A,
COUT = 10 µF, CSS = 10 nF
Figure 6-14 Start-Up Waveform vs Time for CSS = 10 nF
VIN = VOUT + 0.3 V, VBIAS = VEN = 5 V, IOUT, DC = 10 mA,
slew rate = 1 A/µs, CSS = 10 nF, COUT = 10 µF
Figure 6-16 Load Transient for VOUT With Bias
VBIAS = 5 V, IOUT = 3 A, COUT = 10 µF, CSS = 10 nF

Figure 6-18 Input Ramp Response
VIN = 1.25 V, VOUT = 1 V
Figure 6-20 BIAS-to-OUT Dropout Voltage vs Output Current
VIN = 1.25 V, VOUT = 1.0 V, VBIAS = 5 V
Figure 6-22 Load Regulation vs ≥50-mA Output Current
VIN = 5 V, VOUT = 1.0 V, IOUT = 50 mA
Figure 6-24 Output Voltage vs Bias Voltage
VOUT = 1.0 V, VBIAS = 5.0 V
Figure 6-26 IN Pin Quiescent Current vs
Output Current
VIN = 1.25 V, VBIAS = 5.0 V, VOUT = 1.0 V
Figure 6-28 BIAS Pin Quiescent Current vs
Output Current
VIN = 1.25 V, VEN = 0 V

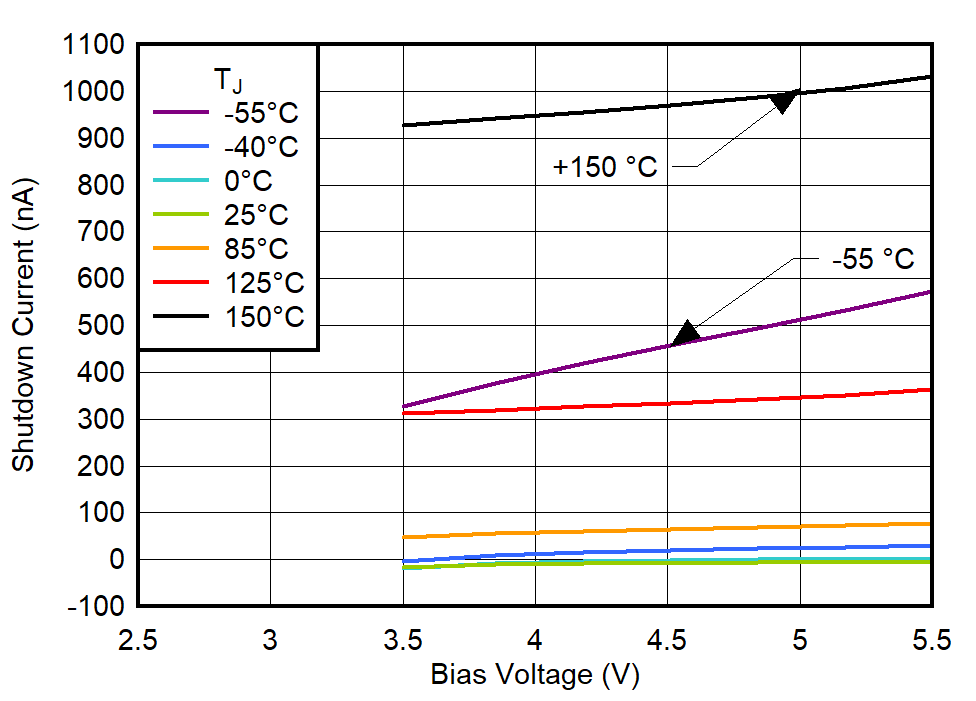

Figure 6-30 Shutdown Current (GND Pin) vs
Bias Voltage
