AC_DET Input (AC_DET)

The AC_DET pin is a CMOS-type input used in three different ways to control the power-up of the PMIC:

  • In a battery operated system, AC_DET is typically connected to an external battery charger with an open-drain power-good output pulled low when a valid charger supply is connected to the system. A falling edge on the AC_DET pin causes the PMIC to power up.
  • In a non-portable system, the AC_DET pin may be shorted to ground and the device powers up whenever system power is applied to the chip.
  • If none of the above behaviors are desired, AC_DET may be tied to system power (IN_BIAS). Power-up is then controlled through the push-button input or PWR_EN input.

Portable Systems
Non-portable Systems
Disabled
Figure 7-28 AC_DET Pin Configurations

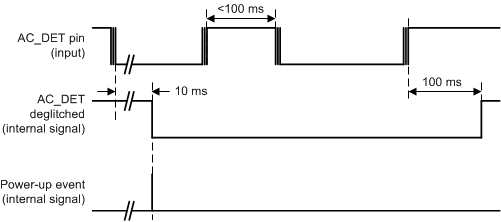

GUID-4AD361F1-98AA-4D1A-9B33-4997E879A7F6-low.gifFigure 7-29 AC_DET Input Deglitch and Power-Up Timing (Portable Systems)

In ACTIVE state, the TPS6521835 monitors the AC_DET input and issues an interrupt when the pin status changes, such as when it drops below or rises above the AC_DET input-low or input-high thresholds. The interrupt is masked by the ACM bit in the INT_MASK1 register.

GUID-9ABE2F54-2D67-4929-A08C-F72247DDEF88-low.gifFigure 7-30 AC_STATE Pin
Note:

Interrupts are issued whenever the AC_DET pin status changes. The AC_STATE bit reflects the current status of the AC_DET input.
