Supply Voltage Supervisor and Power-Good (PGOOD)

Power-good (PGOOD) is an open-drain output of the built-in voltage supervisor that monitors DCDC1, DCDC2, DCDC3, DCDC4, and LDO1. The output is Hi-Z when all enabled rails are in regulation and driven low when one or more rails encounter a fault which brings the output voltage outside the specified tolerance range. In a typical application PGOOD drives the reset signal of the SOC.

The supervisor monitors all enabled rails of the five regulators for undervoltage. The threshold and deglitch times for the supervisor are summarized in Table 7-1 summarizes these details.

Table 7-1 Supervisor Characteristics
PARAMETER (TYPICAL)
Undervoltage monitoring Threshold (output falling) 90%
Deglitch (output falling) 1 ms
Deglitch (output rising) 10 µs
Overvoltage monitoring Threshold (output falling) N/A
Deglitch (output falling) N/A
Deglitch (output rising) N/A
GUID-C66C7EF6-D8AC-4442-AAD1-881187758BA5-low.gif Figure 7-7 Definition of Undervoltage, Overvoltage Thresholds, Hysteresis, and Deglitch Times

The following rules apply to the PGOOD output:

  • The power-up default state for THE PGOOD is low. When all rails are disabled, the PGOOD output is driven low.
  • Only enabled rails are monitored. Disabled rails are ignored.
  • Power-good monitoring of a particular rail starts 5 ms after the rail is enabled and is continuously monitored thereafter. This allows the rail to power-up.
  • The PGOOD is delayed by PGDLY time after the sequencer is finished and the last rail is enabled.
  • If an enabled rail is continuously outside the monitoring threshold for longer than the deglitch time, then the PGOOD is pulled low, and all rails are shut-down following the power-down sequence. PGDLY does not apply.
  • Disabling a rail manually by resetting the DCx_EN or LDO1_EN bit has no effect on the PGOOD pin. If all rails are disabled, the PGOOD is driven low as the last rail is disabled.
  • If the power-down sequencer is triggered, PGOOD is driven low.
  • The PGOOD is driven low in the SUSPEND state, regardless of the number of rails that are enabled.

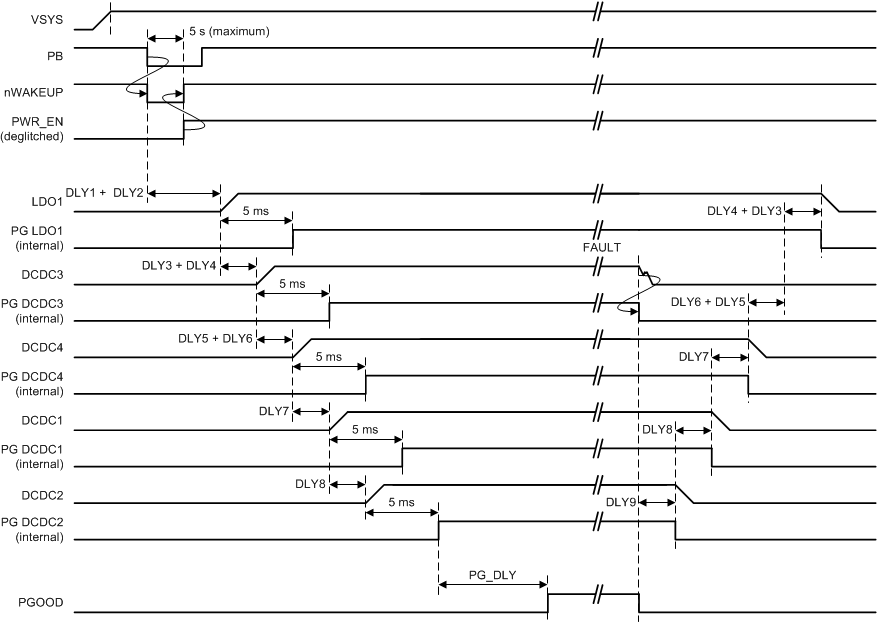

#SLDS2067476 shows a typical power-up sequence and PGOOD timing.

(1) Sequence shown for TPS65218D0 variant. For other TPS65218xx variants, refer to registers SEQ1-7 in Section 5.6.4 for factory programmed sequence order and timing.
Figure 7-8 Typical Power-Up Sequence of the Main Output Rails
