8.3.1 Detail Design Schematics

The Figure 8-21 shows the application circuit when the power supply of the micro controller unit (MCU) is not less than the battery voltage. The Figure 8-22 shows the application circuit when the power supply of the micro controller unit (MCU) is less than the battery voltage

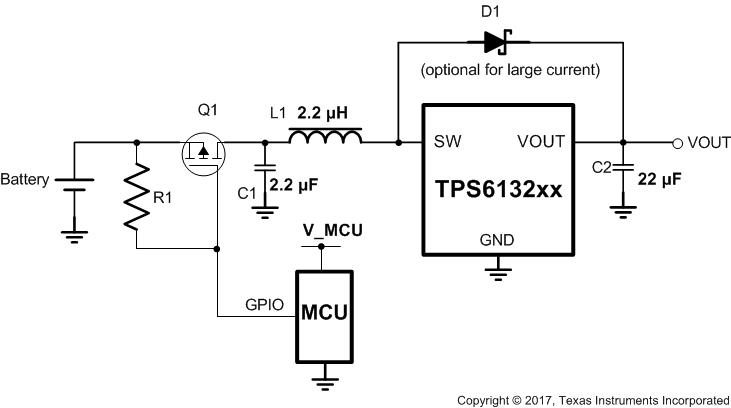

GUID-87E5A2B3-A618-4AB7-8A60-B51B036D8710-low.gifFigure 8-21 True Shutdown, V_MCU Voltage No Less than Battery Voltage

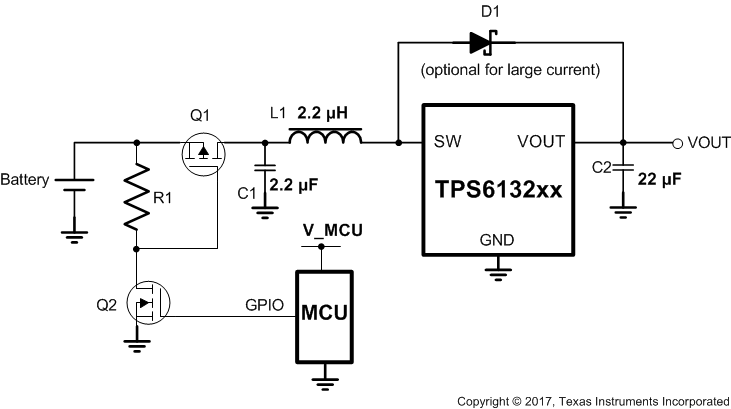

GUID-F1717320-35F1-436E-8BA3-F19084C85271-low.gifFigure 8-22 True Shutdown, V_MCU Voltage Less than Battery Voltage
