6.6 Typical Characteristics

TJ = 25°C unless otherwise noted.

TPS61322L = 4.7 µH

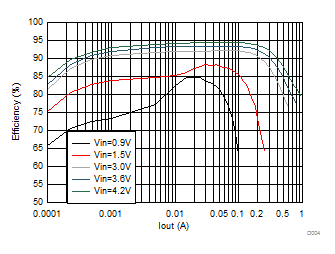

Figure 6-1 Load Efficiency with Different Inputs
TPS613221AL = 2.2 µH

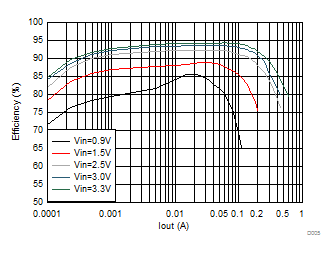

Figure 6-3 Load Efficiency with Different Inputs
TPS613222AL = 2.2 µH

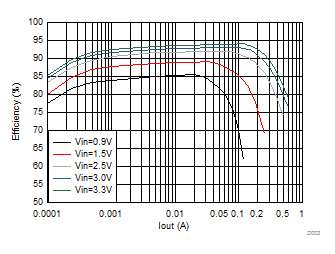

Figure 6-5 Load Efficiency with Different Inputs
TPS613226AL = 2.2 µH
Figure 6-7 Load Efficiency with Different Inputs
TPS613223AL = 4.7 µH
Figure 6-9 Load Efficiency with Different Inputs
TPS613221AL = 2.2 µH

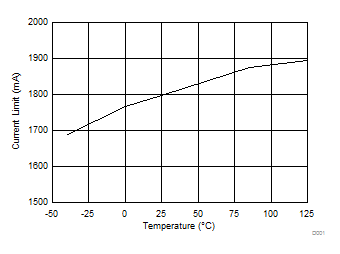

Figure 6-11 Current Limit with Different Temperature
TPS613226AL = 2.2 µH
Figure 6-13 Current Limit with Different Temperature
TPS61322L = 4.7 µH

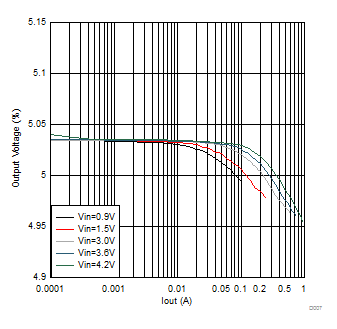

Figure 6-2 Load Regulation
TPS613221AL = 2.2 µH

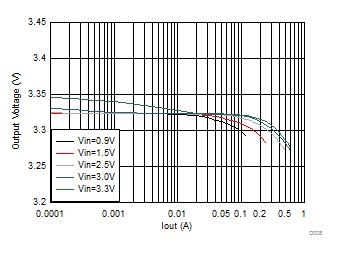

Figure 6-4 Load Regulation
TPS613222AL = 2.2 µH

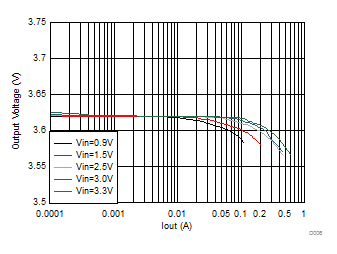

Figure 6-6 Load Regulation
TPS613226AL = 2.2 µH
Figure 6-8 Load Regulation
TPS613223AL = 4.7 µH
Figure 6-10 Load Regulation
TPS613222AL = 2.2 µH
Figure 6-12 Current Limit with Different Temperature
TPS613223AL = 4.7 µH
Figure 6-14 Current Limit with Different Temperature
