8.2.2.3 Application Curves

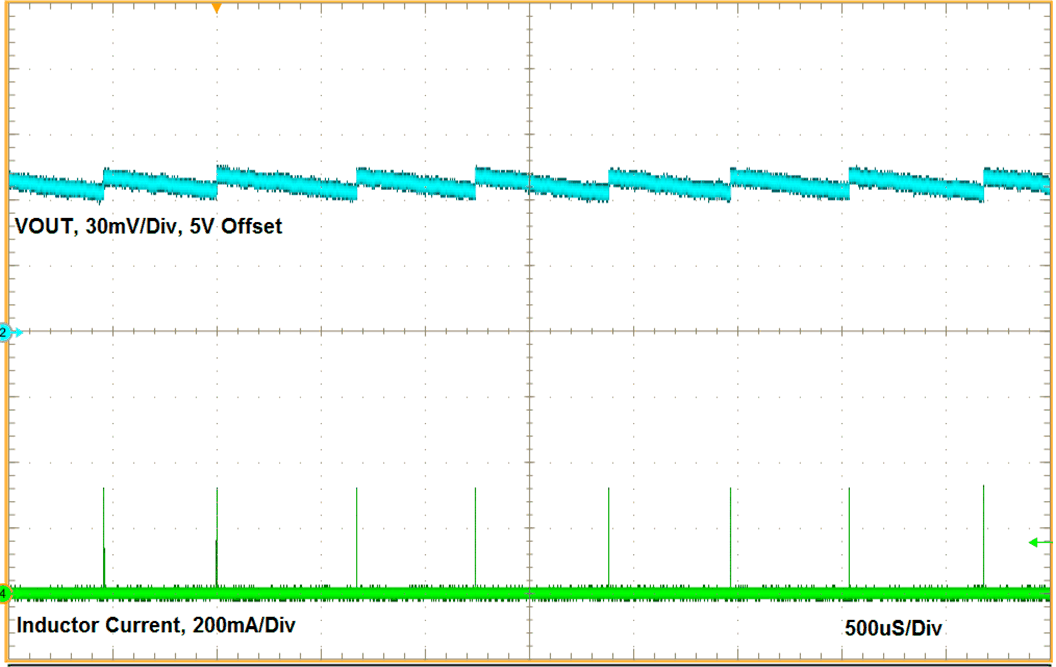

VIN = 3.6 VTPS613222AIOUT = 0.1 mA
Figure 8-10 Switching Waveform at Light Load

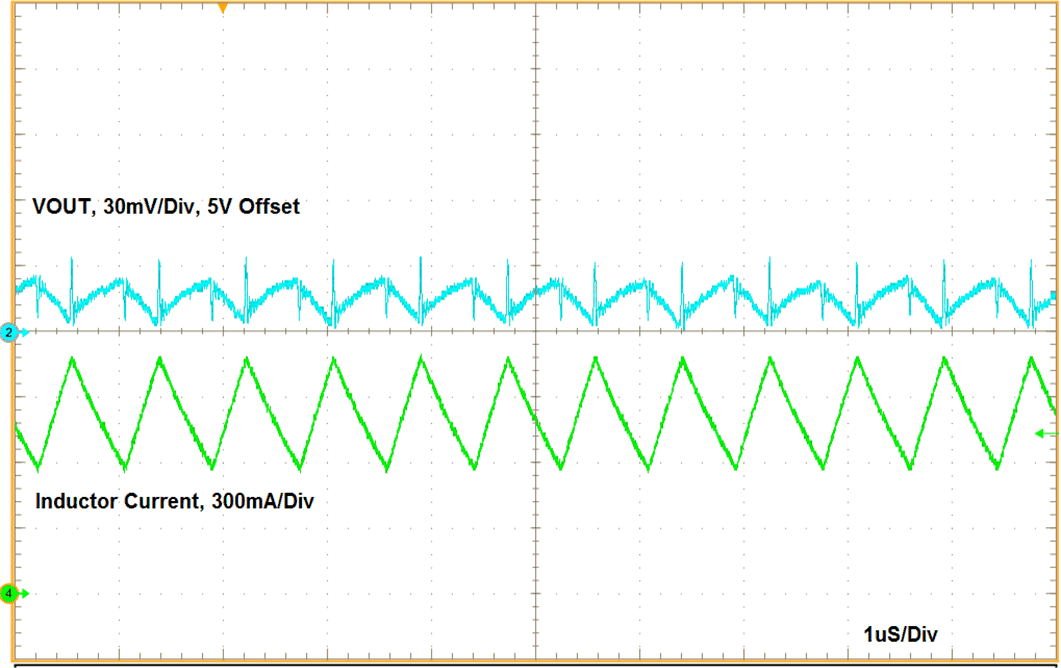

VIN = 3.6 VTPS613222AIOUT = 500 mA
Figure 8-12 Switching Waveform at Heavy Load
VIN = 3.6 VTPS613222AIOUT = 100 mA
Figure 8-11 Switching Waveform at Heavy Load
VIN = 3.6 VTPS613222ARload = 250 Ω
Figure 8-13 Start-up by VIN

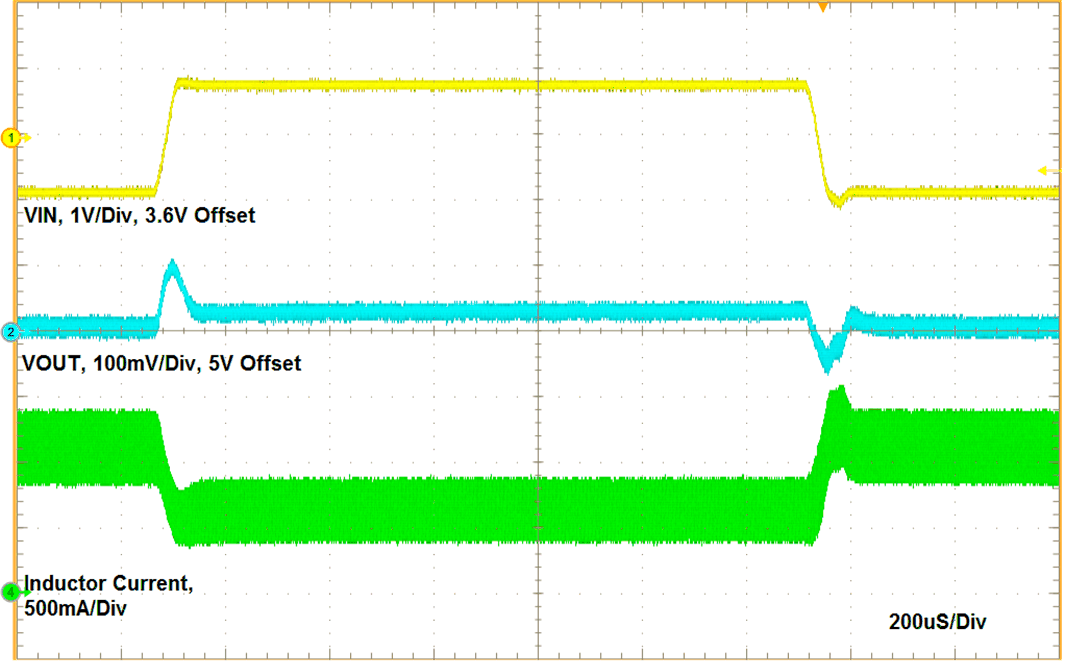

VIN = 2.7 V to 4.3 VTPS613222AIOUT = 500 mA
Figure 8-14 Line Transient

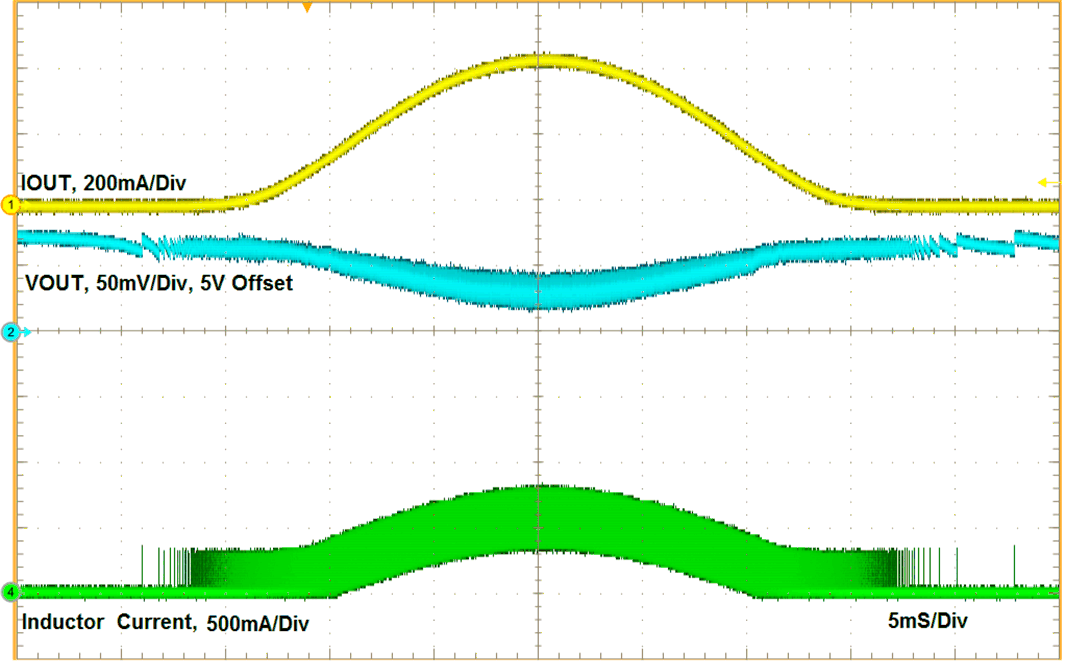

VIN = 3.6 VTPS613222AIOUT = 10 mA to 500 mA
Figure 8-16 Load Transient
TPS613222AL = 2.2 µHD1:ZLLS410TA

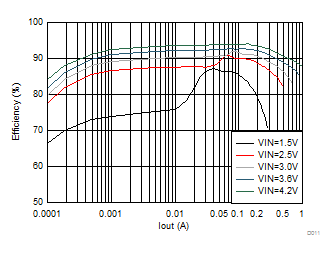

Figure 8-18 Efficiency with Different Input Voltage
VIN = 2.7 V to 4. VTPS613222AIOUT = 500 mA
Figure 8-15 Line Regulation
VIN = 3.6 VTPS613222AIOUT = 0 mA to 500 mA

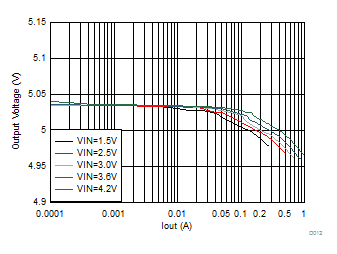

Figure 8-17 Load Regulation
TPS613222AL = 2.2 µHD1:ZLLS410TA
Figure 8-19 Load Regulation
