6.6 Typical Characteristics

TPS57140-EP D001_SLVSD01.gif
Figure 2. On Resistance vs Junction Temperature
TPS57140-EP D003_SLVSD01.gif
Figure 4. Switch Current Limit vs Junction Temperature
TPS57140-EP fs_rt_clk_lvs795.gif
Figure 6. Switching Frequency vs RT/CLK Resistance, High-Frequency Range
TPS57140-EP D005_SLVSD01.gif

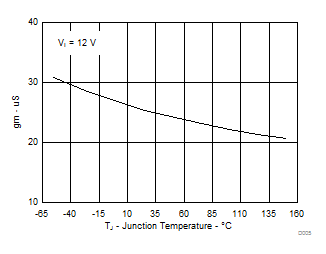

Figure 8. EA Transconductance During Slow Start vs Junction Temperature
TPS57140-EP D007_SLVSD01.gif
Figure 10. EN Pin Voltage vs Junction Temperature
TPS57140-EP D009_SLVSD01.gif
Figure 12. EN Pin Current vs Junction Temperature
TPS57140-EP D011_SLVSD01.gif
Figure 14. SS/TR Discharge Current vs Junction Temperature
TPS57140-EP D012_SLVSD01.gif
Figure 16. Shutdown Supply Current vs Junction Temperature
TPS57140-EP D013_SLVSD01.gif
Figure 18. VIN Supply Current vs Junction Temperature
TPS57140-EP D014_SLVSD01.gif
Figure 20. PWRGD On Resistance vs Junction Temperature
TPS57140-EP D016_SLVSD01.gif

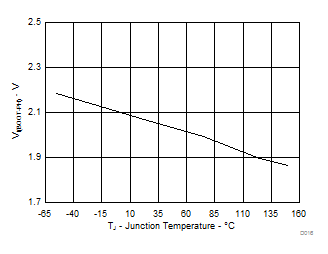

Figure 22. BOOT-PH UVLO vs Junction Temperature
TPS57140-EP offset_vs_lvs795.gif

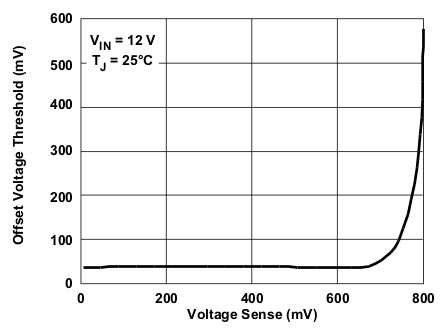

Figure 24. SS/TR to VSENSE Offset vs VSENSE
TPS57140-EP D002_SLVSD01.gif
Figure 3. Voltage Reference vs Junction Temperature
TPS57140-EP D004_SLVSD01.gif
Figure 5. Switching Frequency vs Junction Temperature
TPS57140-EP fs_rt_clk2_lvs795.gif
Figure 7. Switching Frequency vs RT/CLK Resistance, Low-Frequency Range
TPS57140-EP D006_SLVSD01.gif
Figure 9. EA Transconductance vs Junction Temperature
TPS57140-EP D008_SLVSD01.gif
Figure 11. EN Pin Current vs Junction Temperature
TPS57140-EP D010_SLVSD01.gif
Figure 13. SS/TR Charge Current vs Junction Temperature
TPS57140-EP fs_vsense_lvs795.gif
Figure 15. Switching Frequency vs VSENSE
TPS57140-EP icc_vi_lvs795.gif
Figure 17. Shutdown Supply Current vs Input Voltage (VIN)
TPS57140-EP icc_vi2_lvs795.gif
Figure 19. VIN Supply Current vs Input Voltage
TPS57140-EP D015_SLVSD01.gif
Figure 21. PWRGD Threshold vs Junction Temperature
TPS57140-EP D017_SLVSD01.gif
Figure 23. Input Voltage (UVLO) vs Junction Temperature
TPS57140-EP D018_SLVSD01.gif

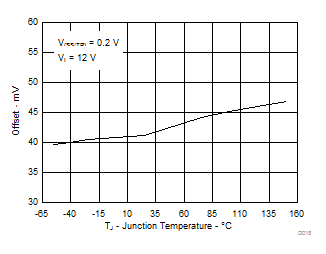

Figure 25. SS/TR to VSENSE Offset vs Temperature
