6.5 Typical Characteristics

VIN = 12 V, TA= 25°C (unless otherwise noted)

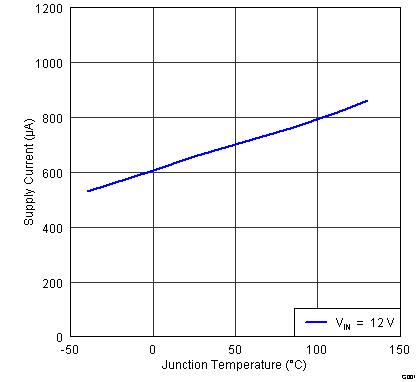

TPS53014 f1ICC_T_slvsbf1.png
Figure 1. VIN Supply Current vs Junction Temperature
TPS53014 f3_EN_Vin_slvsbf1.png
Figure 3. En Input Current Vs En Input Voltage
TPS53014 f5_fsw_vin_slvsbf1.png
Figure 5. Switching Frequency vs Input Voltage
TPS53014 f7_ffb_ta_slvsbf1.png
Figure 7. Vfb Voltage vs Ambient Temperature
TPS53014 f9_linereg_slvsbf1.png
Figure 9. Line Regulation
TPS53014 start_slvubf1.gif
Figure 11. Start Up Waveforms

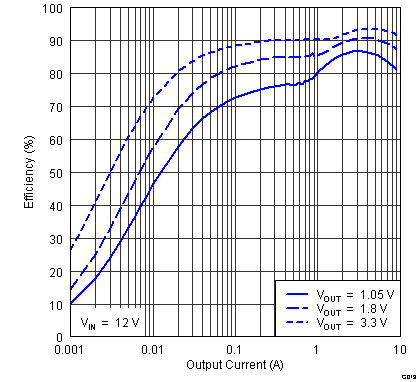

TPS53014 f13_eff2_slvsbf1.png
Figure 13. Light Load Efficiency
TPS53014 output_ripple_ecomode_slvubf1.gif
Figure 15. Output Voltage Ripple, IOUT = 50 mA

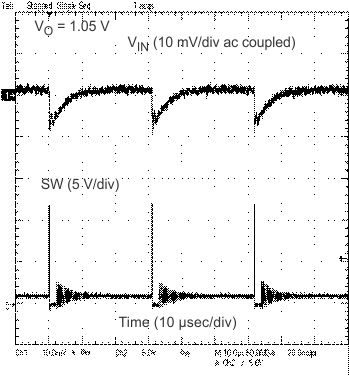

TPS53014 input_ripple_LL_slvubf1.gif
Figure 17. Input Voltage Ripple, IOUT = 50 mA
TPS53014 f2_ICC_SD_T_slvsbf1.png
Figure 2. VIN Shutdown Current vs Junction Temperature
TPS53014 f4_fsw_tj_slvsbf1.png
Figure 4. Switching Frequency vs Junction Temperature
TPS53014 f6_ffb_vin_slvsbf1.png
Figure 6. Vfb Voltage vs Input Voltage

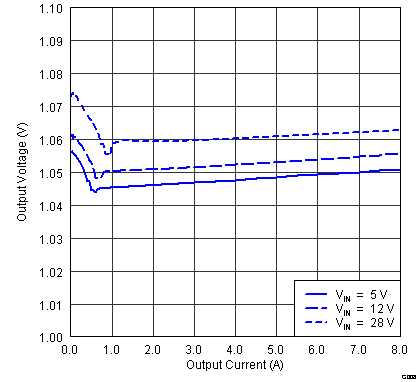

TPS53014 f8_loadreg_slvsbf1.png
Figure 8. Load Regulation
TPS53014 trans_slvubf1.gif
Figure 10. Transient Response
TPS53014 f12eff1_slvsbf1.png
Figure 12. Efficiency
TPS53014 output_ripple_slvubf1.gif
Figure 14. Output Voltage Ripple, IOUT = 8 A
TPS53014 input_ripple_slvubf1.gif
Figure 16. Input Voltage Ripple, IOUT = 8 A
