Typical Characteristics

at TJ = 25°C and VDD = 12 V (unless otherwise noted)

Figure 5-2 Supply Current vs Supply Voltage
Figure 5-4 SENSE Positive Input Threshold Voltage (VIT+) vs Temperature
VDD = 1.8 V
Figure 5-6 SENSE Positive Input Threshold Voltage (VIT+) Distribution
Input step ±200 mV

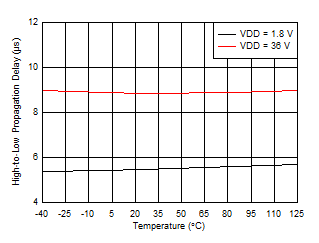

Figure 5-8 Propagation Delay vs Temperature (High-to-Low Transition at SENSE)
VDD = 1.8 V

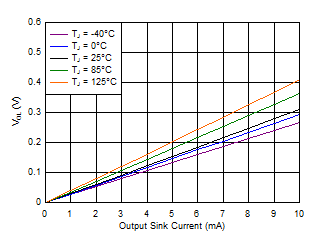

Figure 5-10 Output Voltage Low vs Output Sink Current
VDD = 5 V

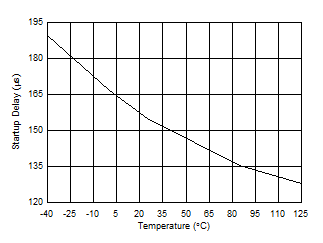

Figure 5-12 Startup Delay vs Temperature
VDD = 24 V, minimum pulse duration required to trigger output high-to-low transition, SENSE = negative spike below VIT–
Figure 5-3 Minimum Pulse Duration vs Threshold Overdrive Voltage
Figure 5-5 SENSE Negative Input Threshold Voltage (VIT–) vs Temperature
VDD = 1.8 V
Figure 5-7 SENSE Negative Input Threshold Voltage (VIT–) Distribution
Input step ±200 mV
Figure 5-9 Propagation Delay vs Temperature (Low-to-High Transition at SENSE)
VDD = 12 V

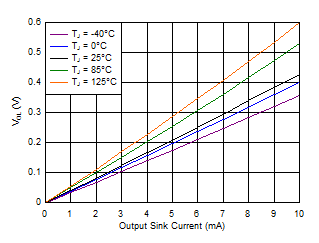

Figure 5-11 Output Voltage Low vs Output Sink Current
