Typical Characteristics

VBB = 13.5 V to 0 VROUT = 1 kΩVDIAG__EN = 0 V
VEN = 5 V
Figure 7-1 Falling Undervoltage Lockout (VUVLOF) vs Temperature
VOUT = 0 VVEN = 0 VVDIAG_EN = 0 V
Figure 7-3 Output Leakage Current (IOUT(standby)) vs Temperature
IOUT = 200 mAVEN = 5 VVDIAG_EN = 0 V
RSNS = 1 kΩ
Figure 7-5 On Resistance (RON) vs Temperature
ROUT = 2.6 ΩVEN = 0 V to 5 VVDIAG_EN = 0 V
RSNS = 1 kΩVBB = 13.5 V
Figure 7-7 Turn-on Delay Time (tDR) vs Temperature
ROUT = 2.6 ΩVEN = 0 V to 5 VVDIAG_EN = 0 V
RSNS = 1 kΩVBB = 13.5 V
Figure 7-9 VOUT Slew Rate Rising (SRR) vs Temperature
ROUT = 2.6 ΩVEN = 0 V to 5 VVDIAG_EN = 0 V
RSNS = 1 kΩVBB = 13.5 V
Figure 7-11 Turn-on Time (tON) vs Temperature
ROUT = 2.6 ΩVEN = 0 V to 5 V and 5 V to 0 VVDIAG_EN = 0 V
RSNS = 1 kΩVBB = 13.5 V
Figure 7-13 Turn-on and Turn-off Matching (tON - tOFF) vs Temperature
VSEL1 = VSEL2 = 0 VVEN = 5 VVDIAG_EN = 5 V
RSNS = 1 kΩTA = 25°C
Figure 7-15 Current Sense Output Current (ISNSI) vs Load Current (IOUT) across VBB
VSEL1 = VSEL2 = 5 VVEN = 0 VVDIAG_EN = 5 V
RSNS = 1 kΩIOUT = 0 A
Figure 7-17 Voltage Sense Output Current (ISNSV) vs VBB
VSEL1 = VSEL2 = 0 VVEN = 5 VVDIAG_EN = 5 V
RSNS = 10 kΩIOUT = 4 A
Figure 7-19 Sense Pin Clamp Voltage (VSNSCLAMP) vs Temperature
VEN = 0 VVOUT = 0 V to 5 VIOUT = 0 A
VDIAG_EN= 5 VVSEL1 = VSEL2 = 0 V
Figure 7-21 Open Load Detection Voltage (VOL) vs Temperature
VEN = 0 V to 3.3 VVOUT = 0 VVDIAG_EN = 0 V
ROUT = 1 kΩ
Figure 7-23 VIH vs Temperature
VEN = 0.8 VVOUT = 0 VVDIAG_EN = 0 V
ROUT = 1 kΩ
Figure 7-25 IIL vs Temperature
ROUT = 2.6 ΩRSNS = 1 kΩVDIA_EN = 5 V
VSEL1 = VSEL2 = 0 V
Figure 7-27 Turn-on Time (tON)
ROUT = 2.6 ΩRSNS = 1 kΩVDIA_EN= 0 V to 5 V
VSEL1 = VSEL2 = 0 V
Figure 7-29 ISNS Settling Time (tSNSION1) on DIA_EN Transition
VOUT = VBBRSNS = 1 kΩVSEL1 = VSEL2 = 0 V
VEN = 0 VVDIAG_EN = 5 V
Figure 7-31 Open Load Detection Time (tOL2) on Rising DIAG_EN
VBB = 13.5 VTA = 125°CLOUT = 5 mH
VEN = 0 V to 5 V, 5 V to 0 V
Figure 7-33 Inductive Load Demagnetization
VOUT = 0 VVEN = 0 VVDIAG_EN = 0 V
Figure 7-2 Standby Current (ISB) vs Temperature
IOUT = 0 AVEN = 5 VVDIAG_EN = 5 V
RSNS = 1 kΩVSEL1 = VSEL2 = 0 V
Figure 7-4 Quiescent Current (IQ) vs Temperature
IOUT = 200 mAVEN = 5 VVDIAG_EN = 0 V
RSNS = 1 kΩVBB = 13.5 V
Figure 7-6 On Resistance (RON) vs VBB
ROUT = 2.6 ΩVEN = 5 V to 0 VVDIAG_EN = 0 V
RSNS = 1 kΩVBB = 13.5 V
Figure 7-8 Turn-off Delay Time (tDF) vs Temperature
ROUT = 2.6 ΩVEN = 5 V to 0 VVDIAG_EN = 0 V
RSNS = 1 kΩVBB = 13.5 V
Figure 7-10 VOUT Slew Rate Falling (SRF) vs Temperature
ROUT = 2.6 ΩVEN = 5 V to 0 VVDIAG_EN = 0 V
RSNS = 1 kΩVBB = 13.5 V
Figure 7-12 Turn-off Time (tOFF) vs Temperature
VSEL1 = VSEL2 = 0 VVEN = 5 VVDIAG_EN = 5 V
RSNS = 1 kΩVBB = 13.5 V
Figure 7-14 Current Sense Output Current (ISNSI ) vs Load Current (IOUT) across Temperature
VSEL1 = 5 VVSEL2 = 0 VVDIAG_EN = 5 V
RSNS = 1 kΩVEN = 0 V
Figure 7-16 Temperature Sense Output Current (ISNST) vs Temperature
VSEL1 = VSEL2 = 0 VVEN = 0 VVDIAG_EN = 5 V
RSNS = 500 ΩVOUT Floating
Figure 7-18 Fault High Output Current (ISNSFH) vs Temperature
GUID-20201119-CA0I-XWB8-LM2K-FCPGLVHN9G4W-low.svg
VBB = 13.5 V VOUT = 0 V VDIAG_EN = 0 V
Device Version C VEN = 5 V VLATCH = 5 V
Figure 7-20 Current Limit (ICL) vs Temperature
VEN = 3.3 V to 0 VVOUT = 0 VVDIAG_EN = 0 V
ROUT = 1 kΩ
Figure 7-22 VIL vs Temperature
VEN = 0 V to 3.3 V and 3.3 V to 0 VVOUT = 0 VVDIAG_EN = 0 V
ROUT = 1 kΩ
Figure 7-24 VIHYS vs Temperature
VEN = 2 VVOUT = 0 VVDIAG_EN = 0 V
ROUT = 1 kΩ
Figure 7-26 IIH vs Temperature
ROUT = 2.6 ΩRSNS = 1 kΩVDIA_EN = 5 V
VSEL1 = VSEL2 = 0 V

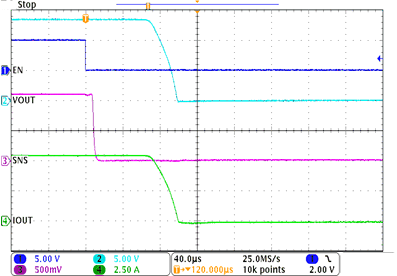

Figure 7-28 Turn-off Time (tOFF) and Sense Settle Time (tSNSION2)
IOUT = 1 A to 5 ARSNS = 1 kΩVDIA_EN = 5 V
VSEL1 = VSEL2 = 0 V
Figure 7-30 ISNS Settling Time (tSETTLEH) on Rising Load Step
VBB = 13.5 VC Device VersionVOUT = 0 V
VEN = 0 V to 5 VTA = 25°C
Figure 7-32 Short Circuit Behavior
