6.7.1 Typical Electrical Characteristics

The typical characteristics curves in this section apply to all devices unless otherwise noted.

Enabled

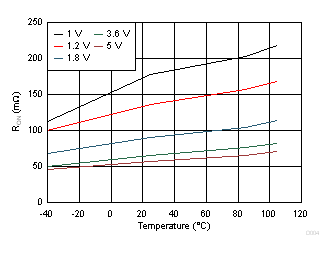

Figure 6-1 ON-Resistance vs Temperature
TPS22916C, TPS22916CN, TPS22916BVON ≤ VIL
Figure 6-3 Shutdown Current
Enabled
Figure 6-5 Quiescent Current
VON ≤ VIL
Figure 6-7 ON Pin Smart Pulldown
Enabled
Figure 6-2 ON-Resistance vs Input voltage
TPS22916CL, TPS22916BL, TPS22916CNLVON ≥ VIH
Figure 6-4 Shutdown Current (Active Low)
–40°C to +85°C

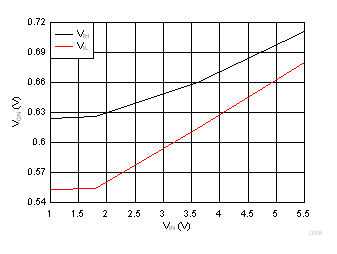

Figure 6-6 ON Pin Threshold
TPS22916C, TPS22916CL, TPS22916B, TPS22916BL
Figure 6-8 Quick Output Discharge
