6.7.2 Typical Switching Characteristics

CL = 0.1 µFRL = 10 Ω
Figure 6-9 Fast Turn-On Time
CL = 0.1 µFRL = 10 Ω
Figure 6-11 Fast Rise Time
CL = 0.1 µFRL = 10 Ω
Figure 6-13 Fast Slew Rate
RL = 10 Ω TPS22916B

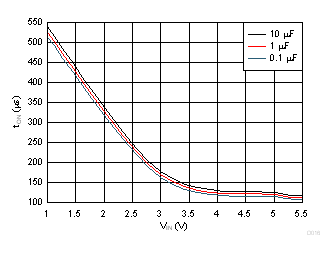

Figure 6-15 Fast Turn-On vs Load Capacitance
RL = 10 Ω TPS22916B
Figure 6-17 Fast Rise Time vs Load Capacitance
RL = 10 Ω TPS22916B

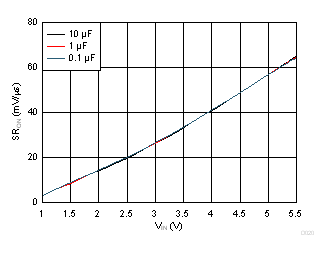

Figure 6-19 Fast Slew Rate vs Load Capacitance
CL = 0.1 µFRL = 10 Ω
Figure 6-21 Slow Turn-On Time
CL = 0.1 µFRL = 10 Ω
Figure 6-23 Slow Rise Time
CL = 0.1 µFRL = 10 Ω
Figure 6-25 Slow Slew Rate
RL = 10 Ω TPS22916C TPS22916CN TPS22916CL
Figure 6-27 Slow Turn-On vs Load Capacitance
RL = 10 Ω TPS22916C TPS22916CN TPS22916CL
Figure 6-29 Slow Rise Time vs Load Capacitance
RL = 10 Ω TPS22916C TPS22916CN TPS22916CL
Figure 6-31 Slow Slew Rate vs Load Capacitance

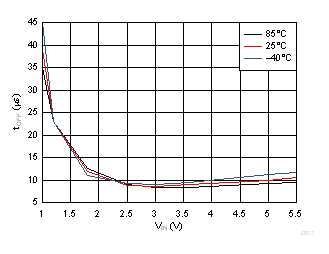

GUID-A6FE7CF4-E156-43DF-8D22-AAF84EC7E8D0-low.gifFigure 6-33 Turn-Off Time
VIN = 1 V to 5.5 V TPS22916C TPS22916CL TPS22916B
Figure 6-35 Fall Time
TPS22916BVIN = 5 VCL = 0.1 μFRL = 10 Ω
Figure 6-10 Fast Turn-On at 5 V
TPS22916B VIN = 3.6 V CL = 0.1 μF RL = 10 Ω
Figure 6-12 Fast Turn-On at 3.6 V
TPS22916BVIN = 1 VCL = 0.1 μFRL = 10 Ω
Figure 6-14 Fast Turn-On at 1 V
CL = 10 µF TPS22916B

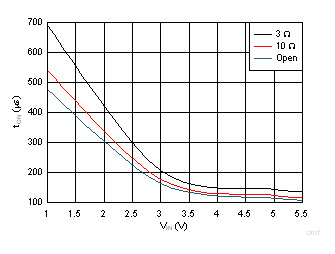

Figure 6-16 Fast Turn-On vs Load Resistance
CL = 10 µF TPS22916B
Figure 6-18 Fast Rise Time vs Load Resistance
CL = 10 µF TPS22916B
Figure 6-20 Fast Slew Rate vs Load Resistance
TPS22916CVIN = 5 VCL = 0.1 μFRL = 10 Ω
Figure 6-22 Slow Turn-On at 5 V
TPS22916CVIN = 3.6 VCL = 0.1 μFRL = 10 Ω
Figure 6-24 Slow Turn-On at 3.6 V
TPS22916CVIN = 1 VCL = 0.1 μFRL = 10 Ω
Figure 6-26 Slow Turn-On at 1 V
CL = 100 µF TPS22916C TPS22916CN TPS22916CL

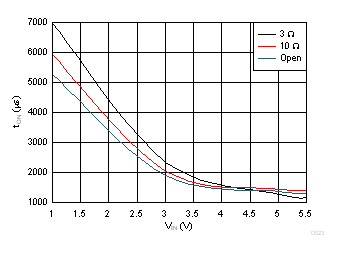

Figure 6-28 Slow Turn-On vs Load Resistance
CL = 100 µF TPS22916C TPS22916CN TPS22916CL
Figure 6-30 Slow Rise Time vs Load Resistance
CL = 100 µF TPS22916C TPS22916CN TPS22916CL

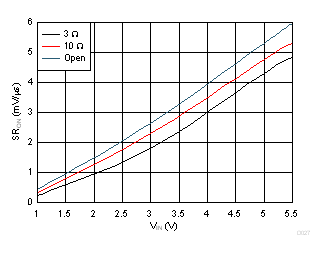

Figure 6-32 Slow Slew Rate vs Load Resistance
TPS22916CLVIN = 5 VCL = 0.1 μFRL = 10 Ω
Figure 6-34 Turn-Off at 5 V (Active Low)
