6.7 Typical Characteristics

TPL0501-100 Fig01_lis136.gif
Figure 1. INL vs Tap Position (Potentiometer Mode)
TPL0501-100 Fig03_lis136.gif
Figure 3. INL vs Tap Position (Rheostat Mode)
TPL0501-100 Fig05_lis136.gif
Figure 5. End-to-End Resistance Change vs Temperature
TPL0501-100 Fig07_lis136.gif
Figure 7. Full Scale Error vs Temperature
TPL0501-100 Fig09_lis136.gif
Figure 9. Temperature Coefficient vs Tap Position
(Rheostat Mode)
TPL0501-100 Fig11_lis136.gif
Figure 11. Bandwidth (Rheostat Mode)
TPL0501-100 Fig02_lis136.gif

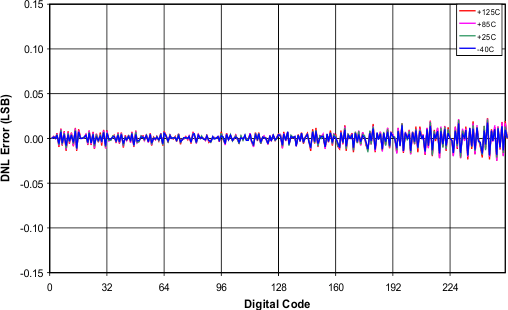

Figure 2. DNL vs Tap Position (Potentiometer Mode)
TPL0501-100 Fig04_lis136.gif
Figure 4. DNL vs Tap Position (Rheostat Mode)
TPL0501-100 Fig06_lis136.gif
Figure 6. Zero Scale Error vs Temperature
TPL0501-100 Fig08_lis136.gif
Figure 8. Temperature Coefficient vs Tap Position
(Potentiometer Mode)
TPL0501-100 Fig10_lis136.gif
Figure 10. Bandwidth (Potentiometer Mode)
