6.14 Typical Characteristics

at TA = 25°C (unless otherwise noted)

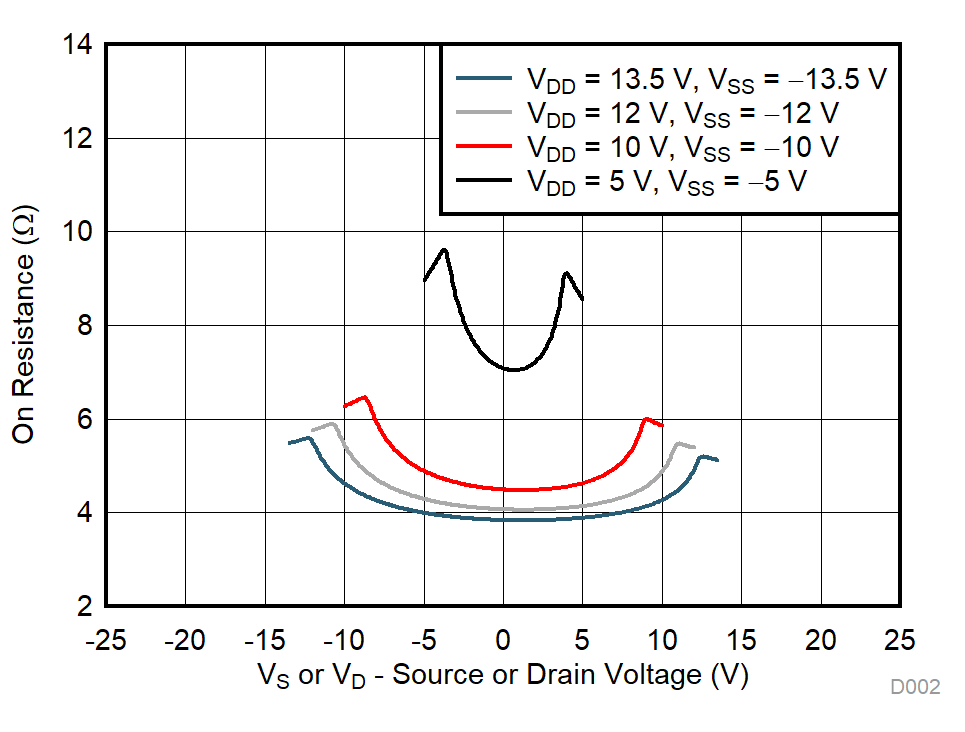

Figure 6-1 On-Resistance vs Source or Drain Voltage – Dual Supply

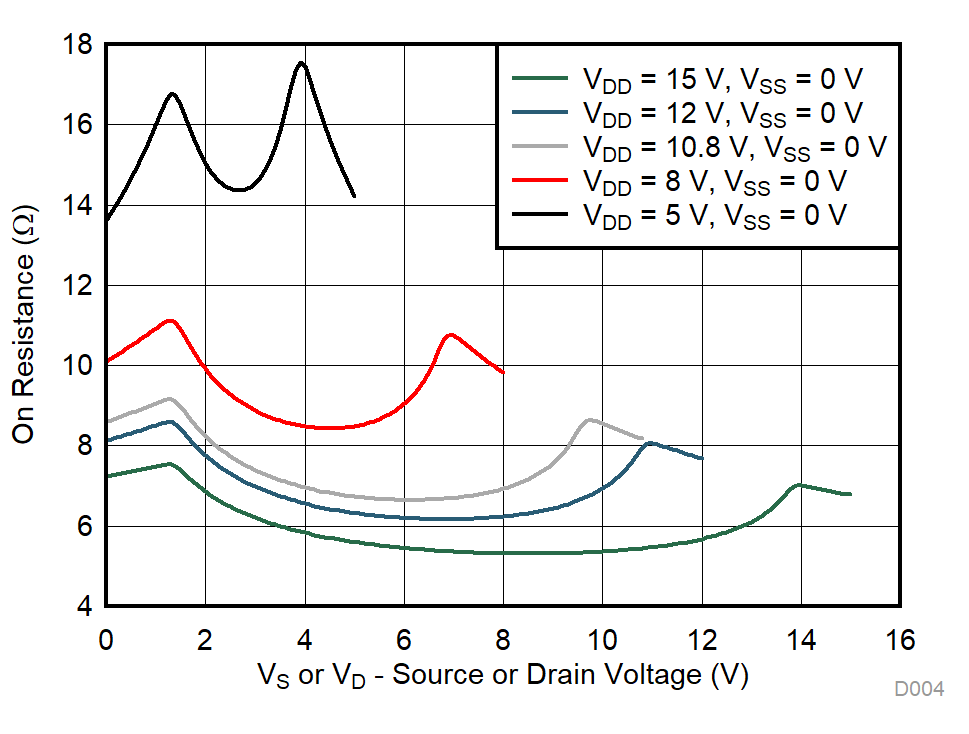

Figure 6-3 On-Resistance vs Source or Drain Voltage – Single Supply
VDD = 15 V, VSS = -15 V

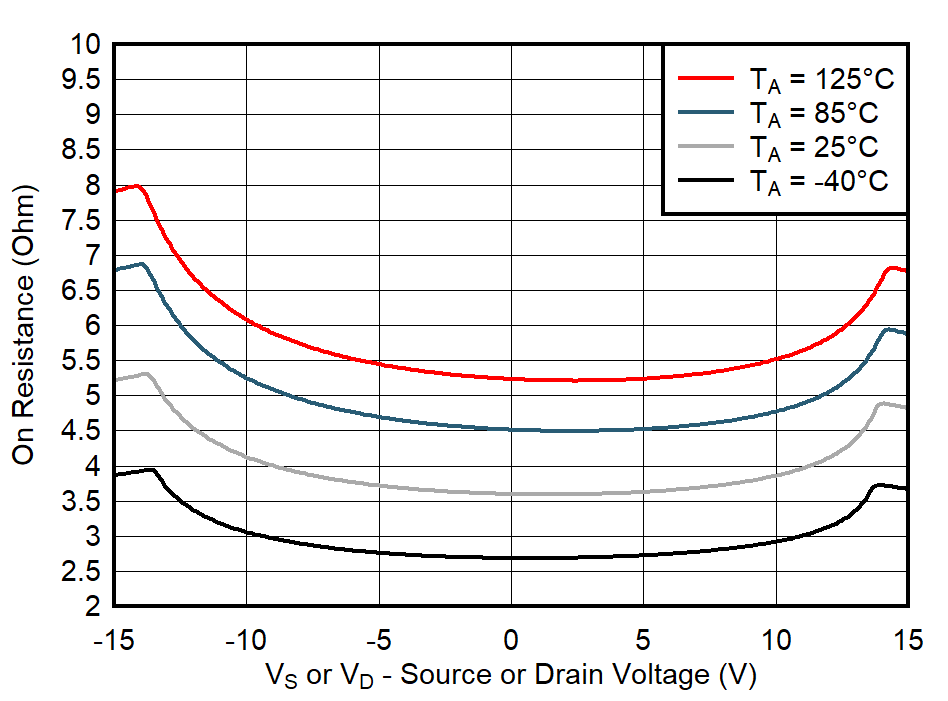

Figure 6-5 On-Resistance vs Temperature
VDD = 12 V, VSS = 0 V
Figure 6-7 On-Resistance vs Temperature
VDD = 15 V, VSS = -15 V

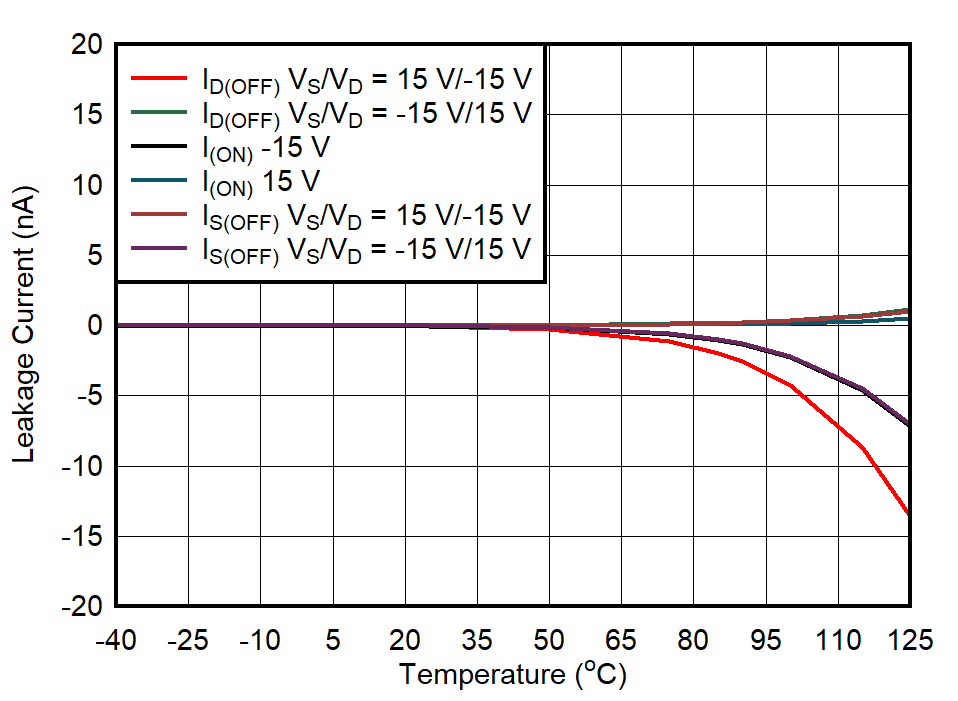

Figure 6-9 Leakage Current vs Temperature

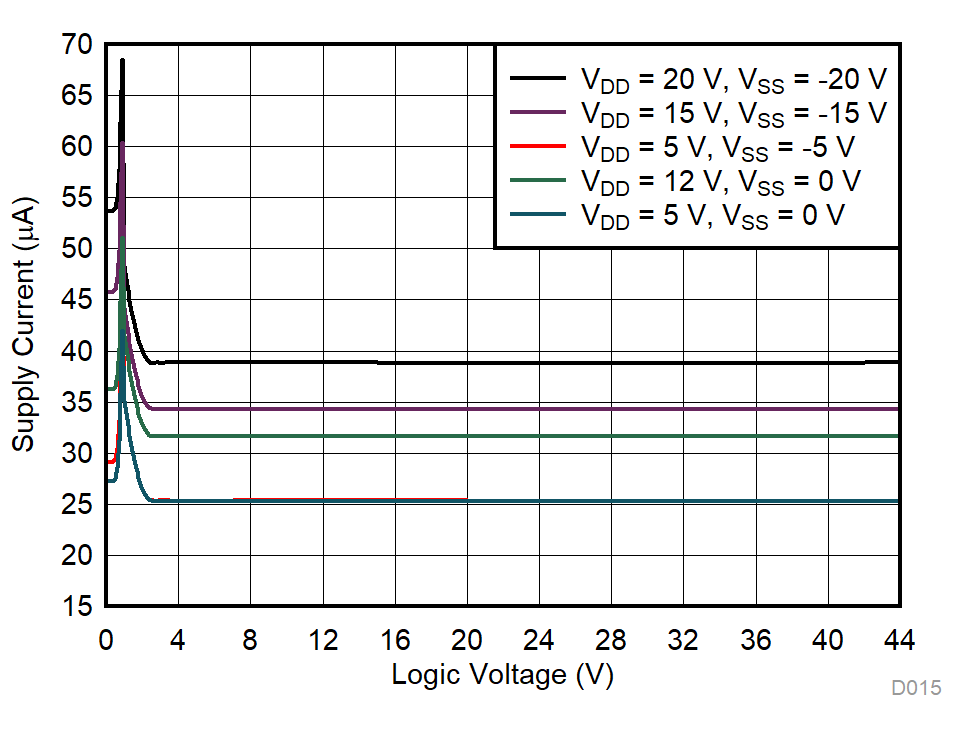

Figure 6-11 Supply Current vs Logic Voltage
Figure 6-13 Charge Injection vs Source Voltage – Dual Supply
Figure 6-15 Charge Injection vs Source Voltage – Single Supply

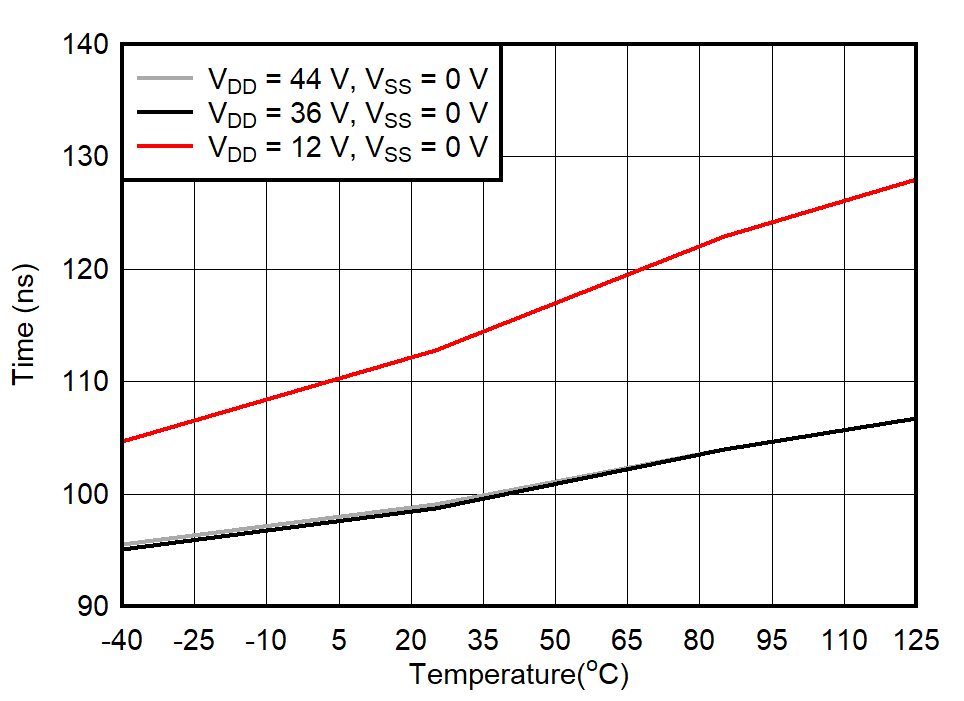

Figure 6-17 TTRANSITION vs Temperature
VDD = 44 V, VSS = 0 V

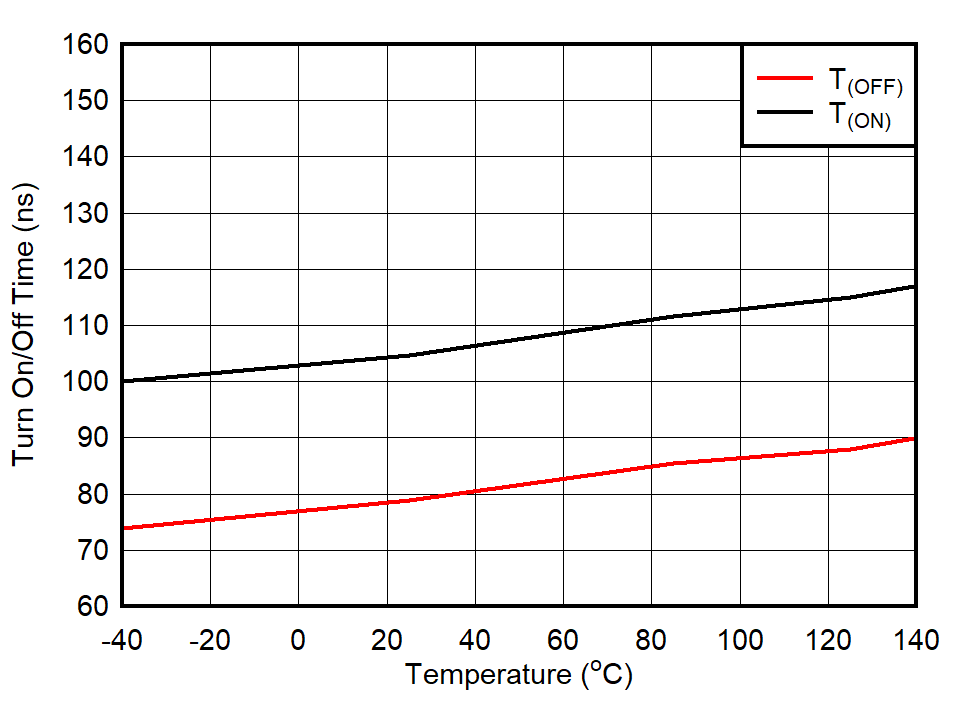

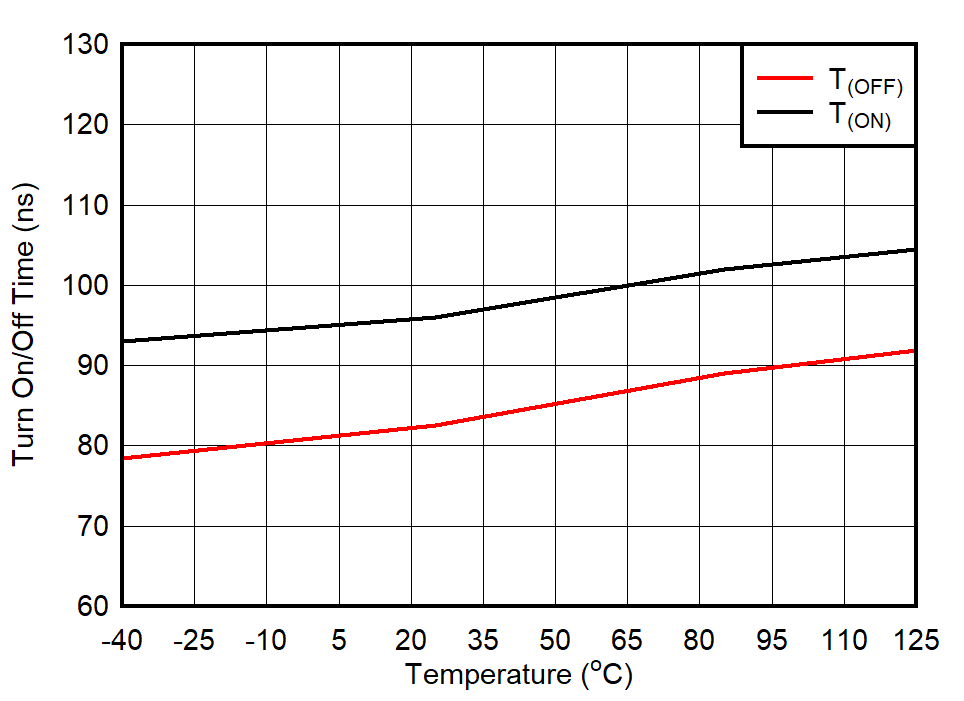

Figure 6-19 TON and TOFF vs Temperature
VDD = 15 V, VSS = -15 V

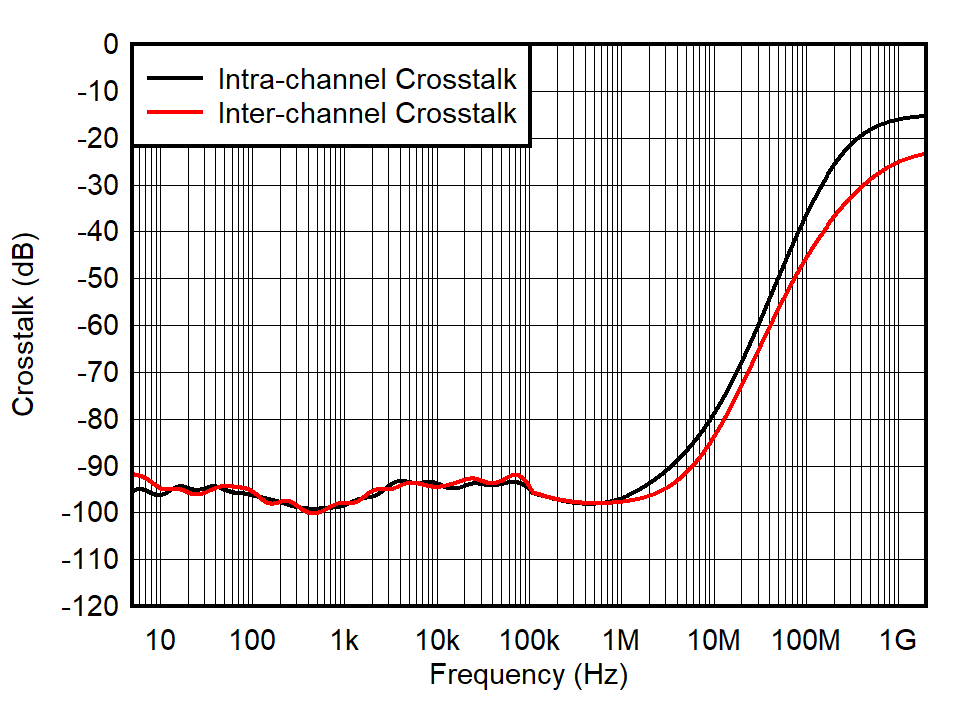

Figure 6-21 Crosstalk vs Frequency

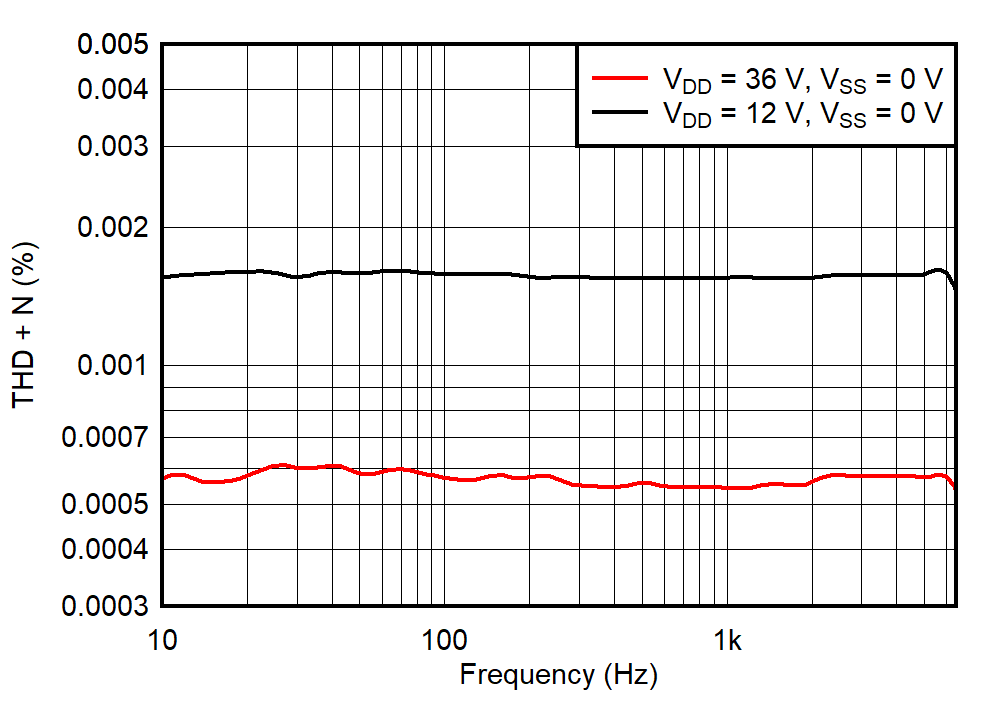

Figure 6-23 THD+N vs Frequency (Single Supply)
VDD = +15 V, VSS = -15 V

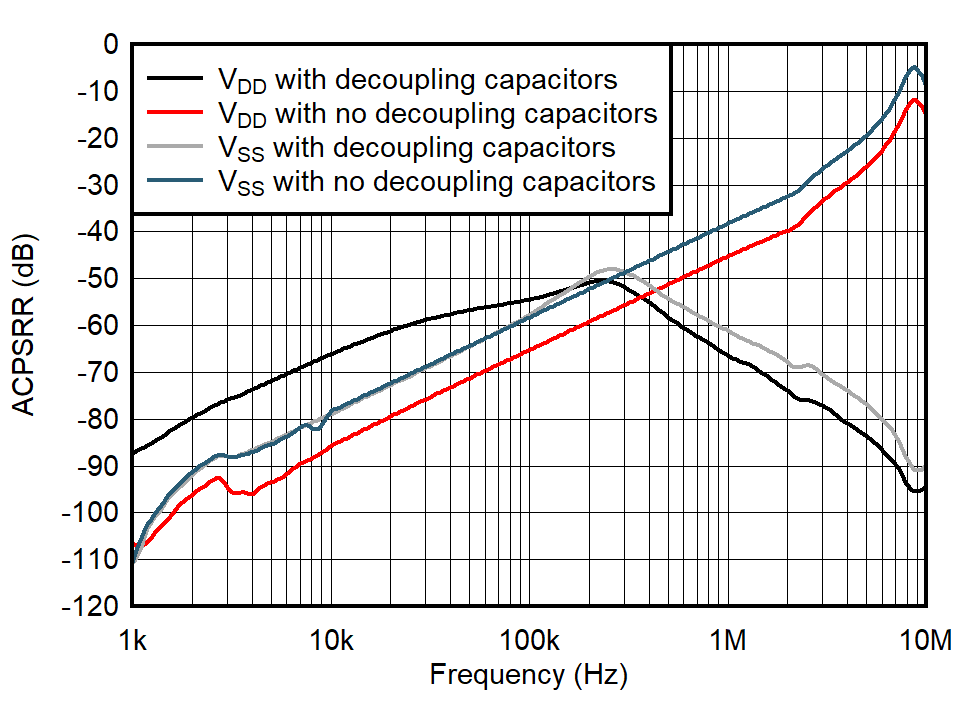

Figure 6-25 ACPSRR vs Frequency
VDD = 12 V, VSS = 0 V

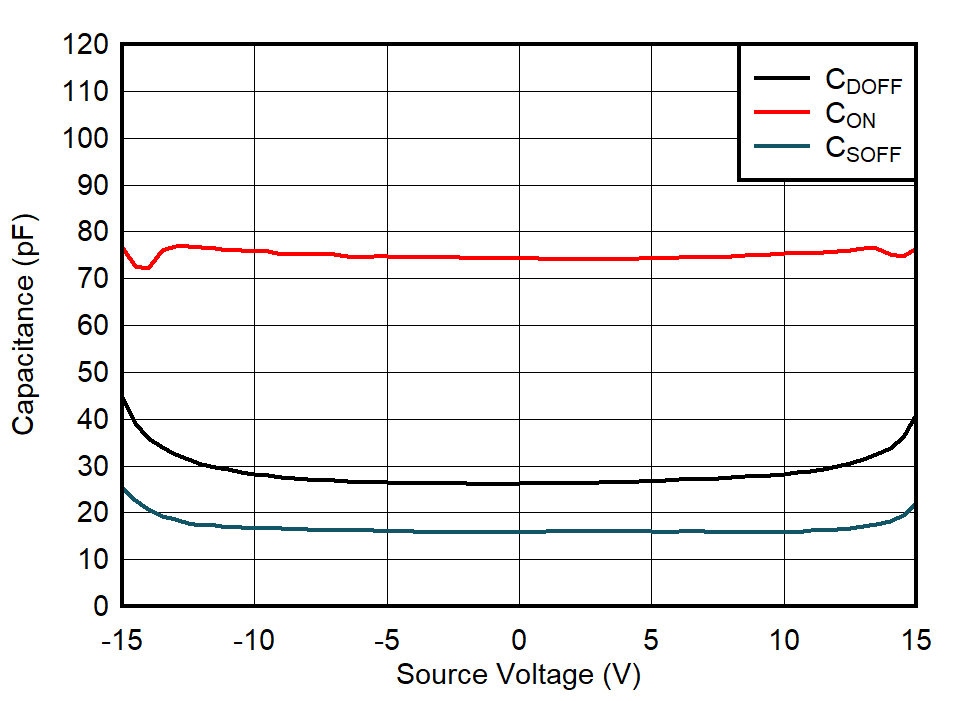

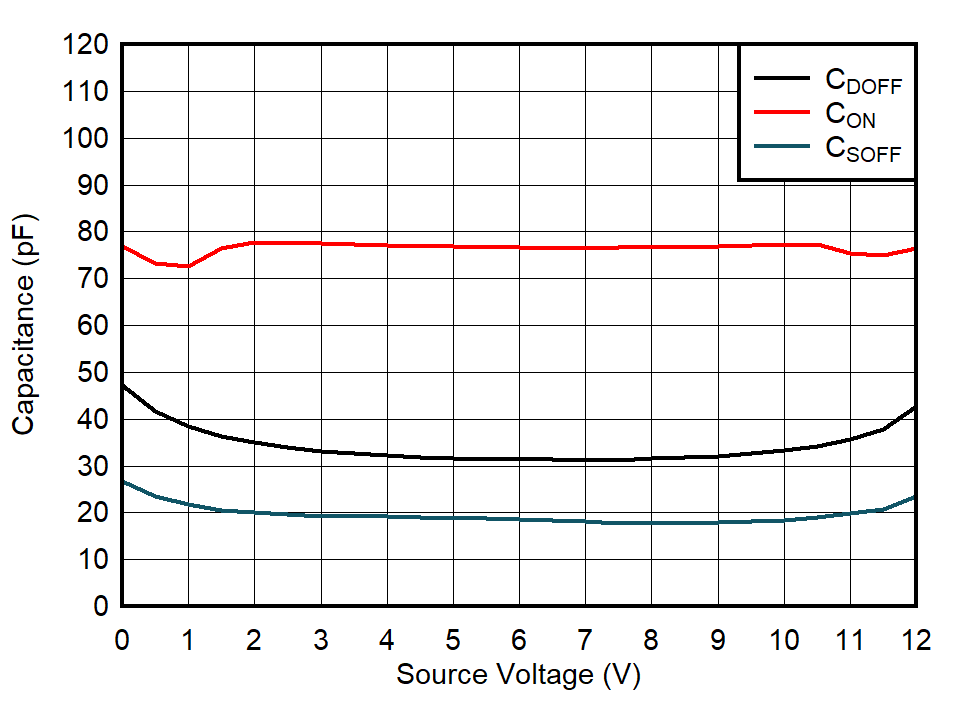

Figure 6-27 Capacitance vs Source Voltage or Drain Voltage
Figure 6-2 On-Resistance vs Source or Drain Voltage – Dual Supply
Figure 6-4 On-Resistance vs Source or Drain Voltage – Single Supply
VDD = 20 V, VSS = -20 V

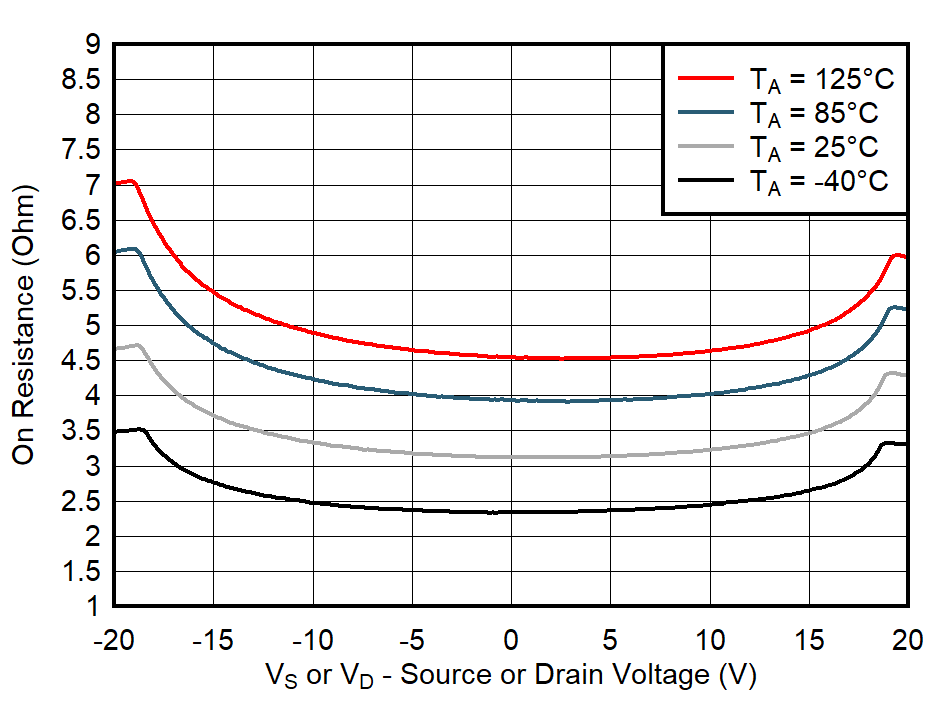

Figure 6-6 On-Resistance vs Temperature
VDD = 20 V, VSS = -20 V
Figure 6-8 Leakage Current vs Temperature
VDD = 12 V, VSS = 0 V
Figure 6-10 Leakage Current vs Temperature
Figure 6-12 Charge Injection vs Drain Voltage – Dual Supply
Figure 6-14 Charge Injection vs Drain Voltage – Single Supply

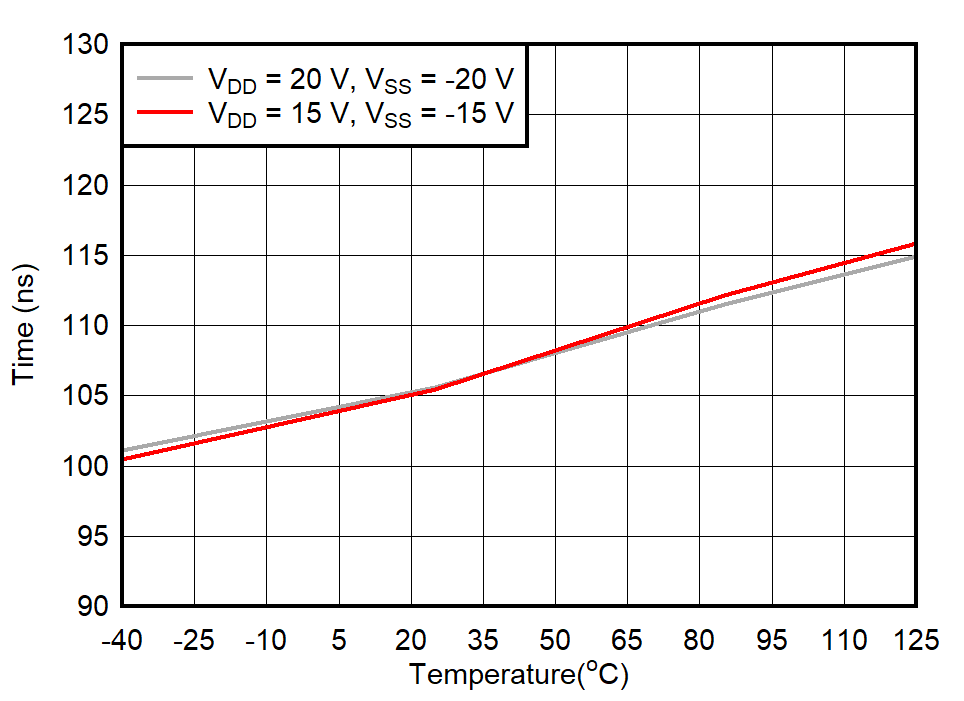

Figure 6-16 TTRANSITION vs Temperature
VDD = 15 V, VSS = -15 V
Figure 6-18 TON and TOFF vs Temperature
VDD = 15 V, VSS = -15 V, TA = 25°C

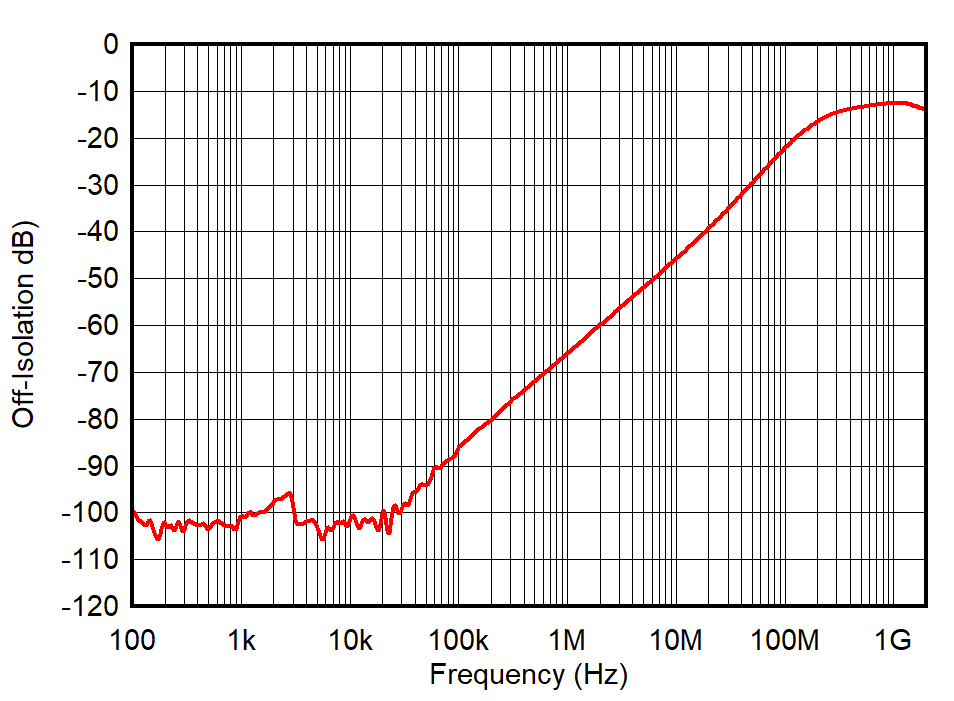

Figure 6-20 Off-Isolation vs Frequency
Figure 6-22 THD+N vs Frequency (Dual Supply)
VDD = 15 V, VSS = -15 V

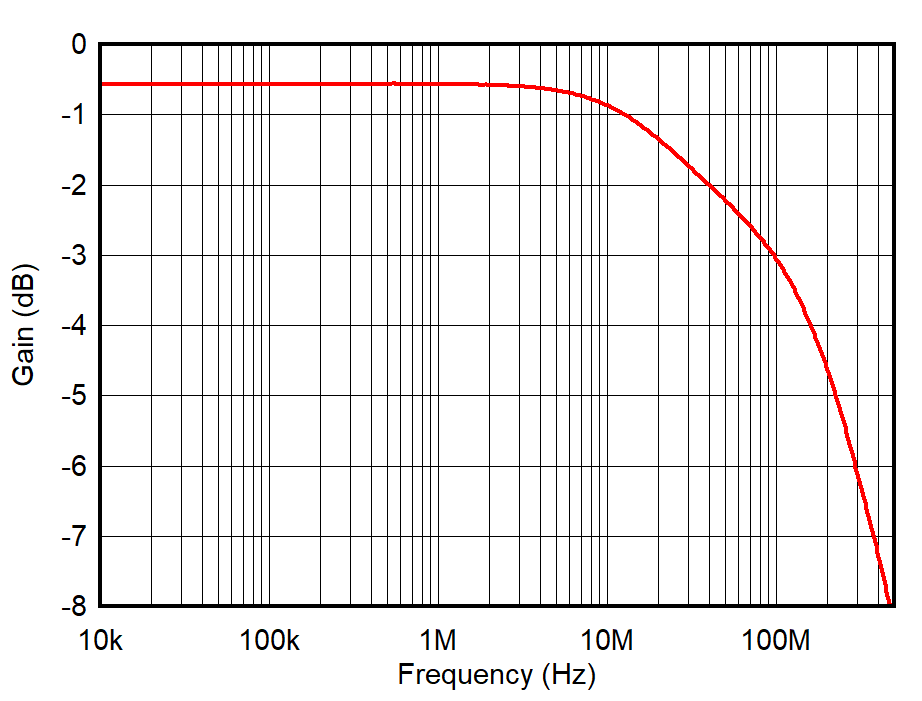

Figure 6-24 On Response vs Frequency
VDD = +15 V, VSS = -15 V
Figure 6-26 Capacitance vs Source Voltage or Drain Voltage
