Bandwidth

Bandwidth is defined as the range of frequencies that are attenuated by < 3 dB when the input is applied to the source pin (Sx) of an on-channel, and the output is measured at the drain pin (D) of the TMUX6121, TMUX6122, and TMUX6123. Figure 8-9 shows the setup used to measure bandwidth of the switch. Use Equation 4 to compute the attenuation.

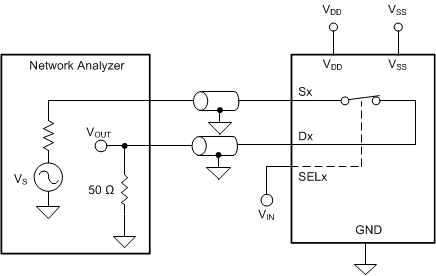

GUID-6A796EAA-8EA3-4CC7-BA10-29D111793956-low.gifFigure 8-9 Bandwidth Measurement Setup
Equation 4. GUID-9F711B02-0441-4ED1-B6E3-21B16D58176B-low.gif
