7.10 Typical Characteristics

at TA = 25°C, VDD = 5 V (unless otherwise noted)

VDD = 5 V
Figure 7-1 On-Resistance vs Temperature
VDD = 2.5 V
Figure 7-3 On-Resistance vs Temperature

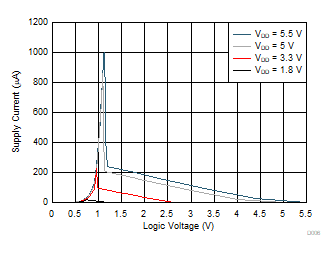

Figure 7-5 Supply Current vs Logic Voltage
TA = 25°C

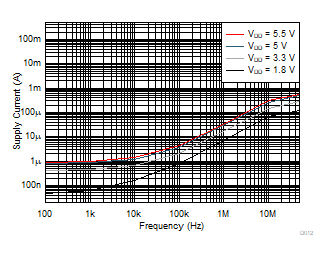

Figure 7-7 Supply Current vs Input Switching Frequency
TA = 25°C

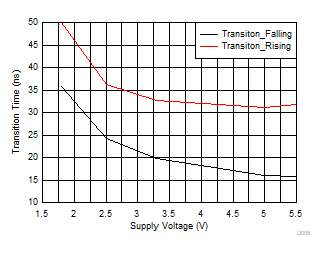

Figure 7-9 TTRANSITION vs Supply Voltage
TA = 25°C
Figure 7-11 On Response vs Frequency
VS = (VDD/2), TA = 25°C
Figure 7-13 Injection Current vs Maximum Output Voltage Shift
VDD = 3.3 V
Figure 7-2 On-Resistance vs Temperature
TA = 25°C

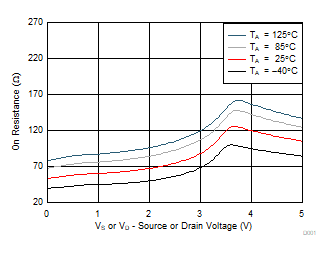

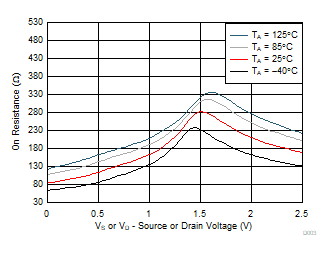

Figure 7-4 On-Resistance vs Source or Drain Voltage
VDD = 3.3 V
Figure 7-6 Capacitance vs Source Voltage
VDD = 3.3 V

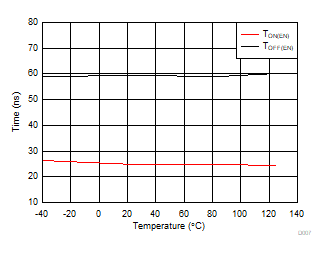

Figure 7-8 TON(EN) and TOFF(EN) vs Temperature
TA = 25°C

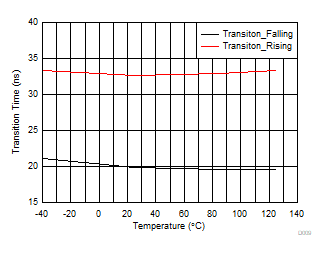

Figure 7-10 TTRANSITION vs Temperature
TA = 25°C , VDD = 3.3 V

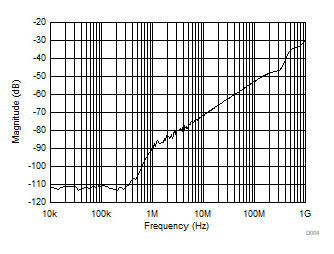

Figure 7-12 Xtalk and Off-Isolation vs Frequency
