6.9 Typical Characteristics

at TA = 25°C, VS = ±18 V, VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2, and CL = 100 pF (unless otherwise noted)
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C002_OT.gif
Figure 1. Offset Voltage vs Common-Mode Voltage
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 sbos850_c005_ot.gif
VS = ±2.25 V
Figure 3. Offset Voltage vs Common-Mode Voltage
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 sbos850_c004_sbos620.gif
CLOAD = 15 pF
Figure 5. Open-Loop Gain and Phase vs Frequency
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C017_OT.gif
Figure 7. Input Bias Current vs Common-Mode Voltage
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C018_OT.gif

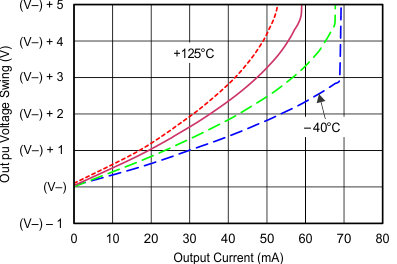

Figure 9. Output Voltage Swing vs Output Current (Maximum Supply)
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C008_OT.png

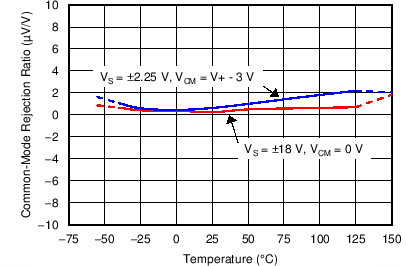

Figure 11. CMRR vs Temperature
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C001_SBOS620.gif
Figure 13. 0.1-Hz to 10-Hz Noise
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 sbos850_c007_sbos620.gif
VOUT = 3.5 VRMS, BW = 80 kHz
Figure 15. THD+N Ratio vs Frequency
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C012_OT.gif

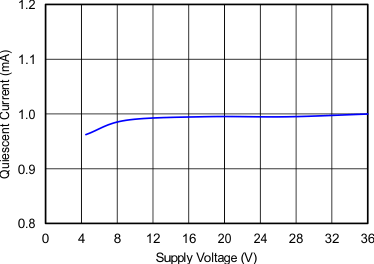

Figure 17. Quiescent Current vs Supply Voltage
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 sbos850_c009_ot.gif
RL = 10 kΩ
Figure 19. Open-Loop Gain vs Temperature
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 c013_sbos935.gif
RI = 1 kΩ, RF = 1 kΩ, G = –1
Figure 21. Small-Signal Overshoot vs Capacitive Load
(100-mV Output Step)
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 c009_sbos935.gif
RI = 1 kΩ, RF = 10 kΩ, G = –10
Figure 23. Positive Overload Recovery
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 c006_sbos935.gif
RL = 1 kΩ, CL = 10 pF, G = –1
Figure 25. Small-Signal Step Response (100 mV)
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 sbos850_c034_.gif
G = 1
Figure 27. Settling Time (10-V Positive Step)
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C016_OT.gif

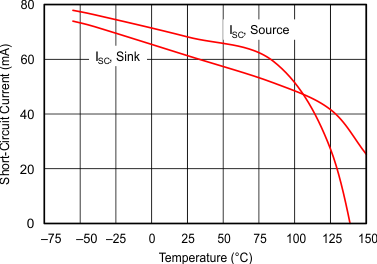

Figure 29. Short-Circuit Current vs Temperature
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C025_.png

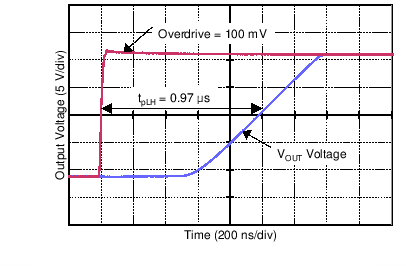

Figure 31. Propagation Delay Rising Edge
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 D001_SBOS620.gif
Figure 33. Crosstalk vs Frequency
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C003_OT.gif

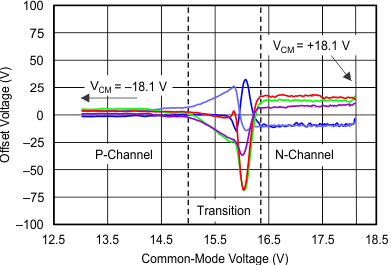

Figure 2. Offset Voltage vs Common-Mode Voltage
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 sbos850_c006_ot.gif
VS = ±2.25 V to ±18 V

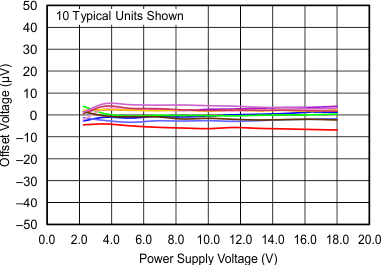

Figure 4. Offset Voltage vs Power Supply
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C003_SBOS620.png

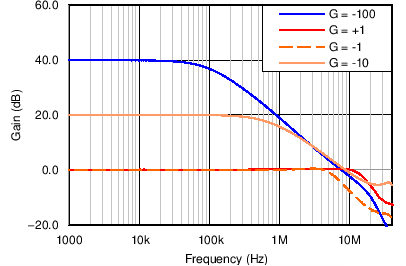

Figure 6. Closed-Loop Gain and Phase vs Frequency
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C015_OT.png

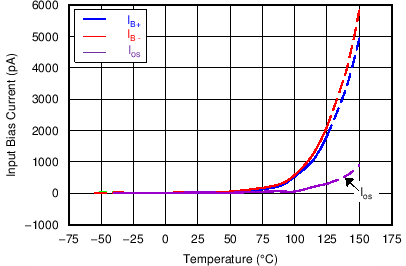

Figure 8. Input Bias Current vs Temperature
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C012_SBOS620.png

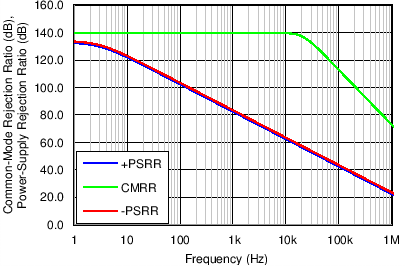

Figure 10. CMRR and PSRR vs Frequency
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C007_OT.gif

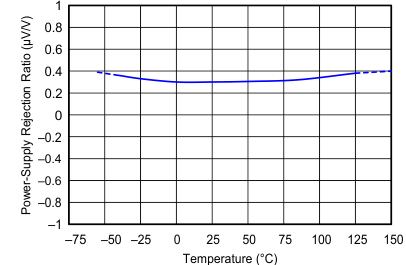

Figure 12. PSRR vs Temperature
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C002_SBOS620.gif
Figure 14. Input Voltage Noise Spectral Density
vs Frequency
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 sbos850_c008_sbos620.gif
f = 1 kHz, BW = 80 kHz
Figure 16. THD+N vs Output Amplitude
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C011_OT.gif

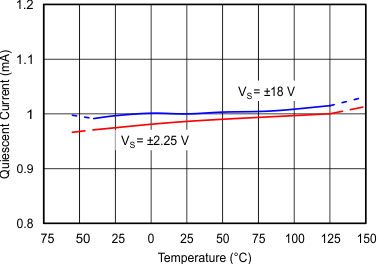

Figure 18. Quiescent Current vs Temperature
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C016_SBOS620.png

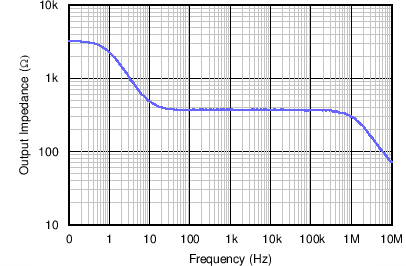

Figure 20. Open-Loop Output Impedance vs Frequency
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 c013b_sbos935.gif
G = 1
Figure 22. Small-Signal Overshoot vs Capacitive Load
(100-mV Output Step)
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 c015_sbos935.gif
CL = 10 pF, G = 1

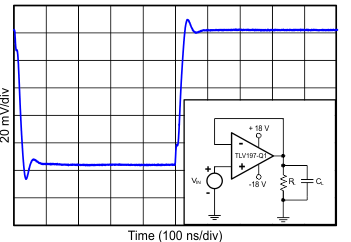

Figure 24. Small-Signal Step Response (100 mV)
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 c005_sbos935.gif
RL = 1 kΩ, CL = 10 pF, G = –1

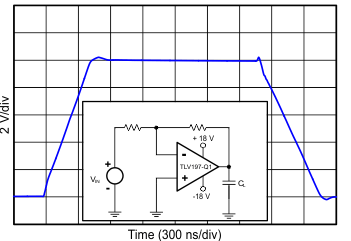

Figure 26. Large-Signal Step Response
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 sbos850_c034b_.gif
G = 1
Figure 28. Settling Time (5-V Positive Step)
TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C033_.png

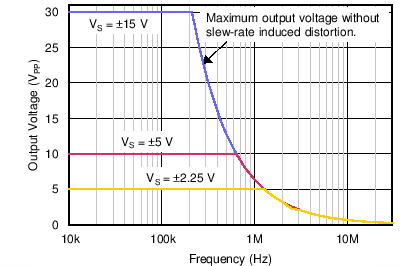

Figure 30. Maximum Output Voltage vs Frequency

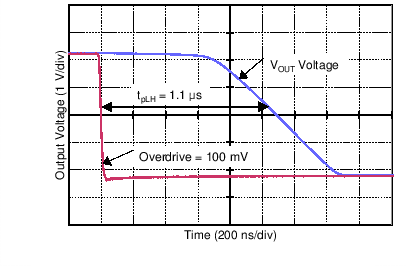

TLV197-Q1 TLV2197-Q1 TLV4197-Q1 C026_.png
Figure 32. Propagation Delay Falling Edge
