7 Parameter Measurement Information

7.1 Pin-Equivalent Input and Output Schematic Diagrams

pmi_sdi_bvs222.gifFigure 3. SDI
pmi_sdo_bvs222.gifFigure 4. SDO
1. n = 0 to 2.
Figure 5. OUT0 Through OUT2

7.2 Test Circuits

1. n = 0 to 2.
2. CL includes measurement probe and jig capacitance.
Figure 6. Rise and Fall Time Test Circuit for OUTn
1. CL includes measurement probe and jig capacitance.
Figure 7. Rise and Fall Time Test Circuit for SDO
1. n = 0 to 2.
Figure 8. Constant-Current Test Circuit for OUTn

7.3 Timing Diagrams

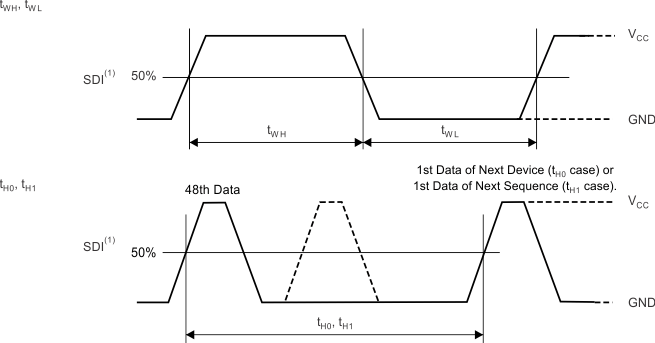

1. Input pulse rise and fall time is 1 ns to 3 ns.
Figure 9. Input Timing
1. Input pulse rise and fall time is 1 ns to 3 ns.
Figure 10. Output Timing
1. OUTn on-time changes, depending on the data in the 36-bit GS data latch.
Figure 11. Data Write and OUTn Switching Timing
