11 Layout

11.1 Layout Guidelines

For best performance, VIN, VOUT, and GND traces must be as short and wide as possible to help minimize the parasitic electrical effects. To be most effective, the input and output capacitors must be placed close to the device to minimize the effects that parasitic trace inductances may have on normal operation.

11.2 Layout Example

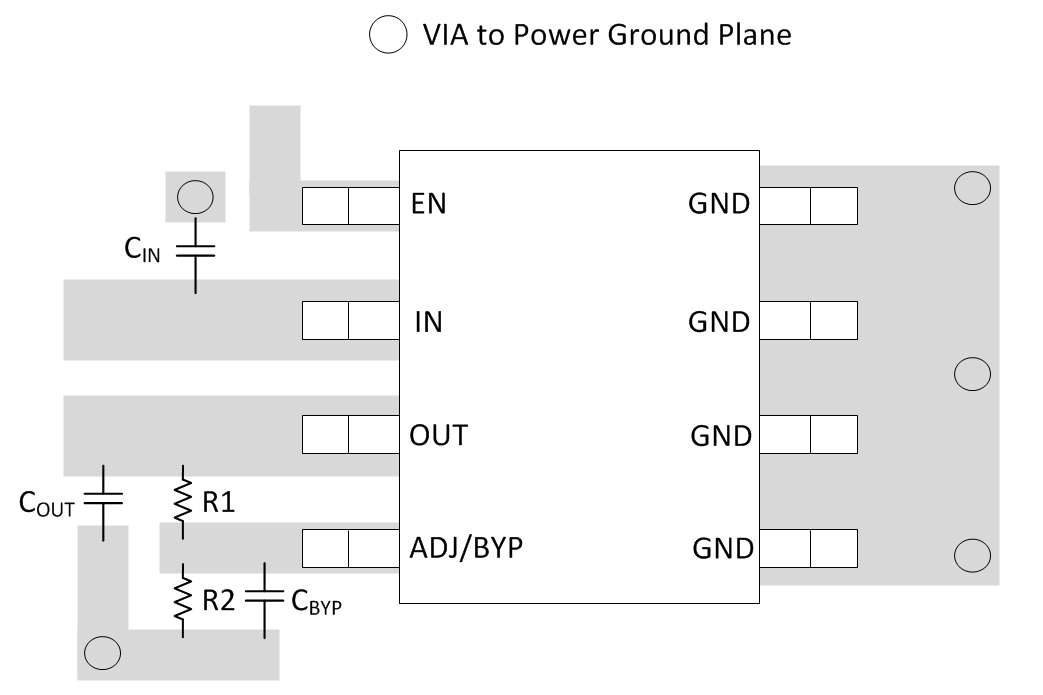

TL5209 TL5209_Layout.jpgFigure 42. TL5209 Layout Schematic
