5 Pin Configuration and Functions

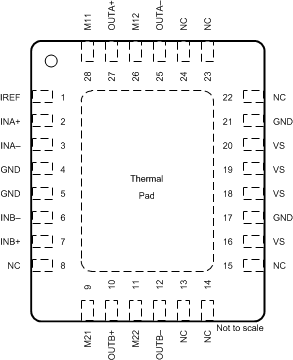

GUID-5EEA04CB-B613-40E0-8BE0-C27A6195D338-low.gif Figure 5-1 RHF Package 28-Pin VQFN Top View
Table 5-1 Pin Functions
PIN I/O DESCRIPTION
NAME NO.
IREF 1 — Bias current reference pin
INA+ 2 I Positive input for channel A
INA– 3 I Negative input for channel A
INB+ 7 I Positive input for channel B
INB– 6 I Negative input for channel B
OUTA+ 27 O Positive output for channel A
OUTA– 25 O Negative output for channel A
OUTB+ 10 O Positive output for channel B
OUTB– 12 O Negative output for channel B
M11 28 I Most significant bit (MSB) of channel A
M12 26 I Least significant bit (LSB) of channel A
M21 9 I MSB of channel B
M22 11 I LSB of channel B
VS 16, 18, 19, 20 — Positive supply voltage connection
GND 4, 5, 17, 21 — Ground
NC 8, 13, 14, 15, 22, 23, 24 — Not connected
Thermal pad — Device thermal pad, connected to ground
