System Initialization

When initializing the communications link between the TDES960 deserializer hub and a TSER953 serializer, the system timing will depend on the mode selected for generating the serializer reference clock. When synchronous clocking mode is selected, the serializer will re-lock onto the extracted back channel reference clock once available, so there is no need for local crystal oscillator at the sensor module (Figure 8-19). When the TSER953 is operating in non-synchronous mode, or is connecting to a DVP Mode serializer, the sensor module requires a local reference clock and the timing would follow Figure 8-20.

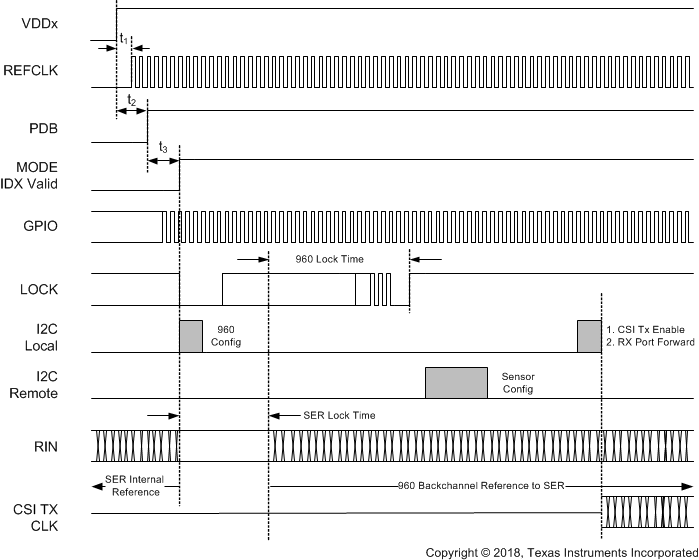

GUID-9AF045DB-9C45-4728-AF0A-04C3602A2449-low.gifFigure 8-19 Power-Up Sequencing With Synchronous Clocking Mode
GUID-20230626-SS0I-D4GB-BGTB-FJTHDGSWWJLJ-low.svgFigure 8-20 Power-Up Sequencing With Non-Synchronous Clocking Mode
