6.8 Typical Characteristics

TA = 25°C (unless otherwise noted)
TCA9534A D001_TCA9539.gif
Figure 1. Supply Current vs Temperature for Different Supply Voltage (VCC)
TCA9534A D003_TCA9539.gif
Figure 3. Supply Current vs Supply Voltage for Different Temperature (TA)
TCA9534A D005_TCA9539.gif
Figure 5. I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 1.8 V
TCA9534A D007_TCA9539.gif
Figure 7. I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 3.3 V
TCA9534A D010_TCA9539.gif
Figure 9. I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 5.5 V
TCA9534A D012_TCA9539.gif
Figure 11. I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 1.65 V
TCA9534A D014_TCA9539.gif
Figure 13. I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 2.5 V
TCA9534A D016_TCA9539.gif
Figure 15. I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 5 V
TCA9534A D018_TCA9539.gif

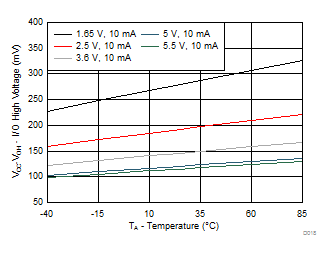

Figure 17. VCC – VOH Voltage vs Temperature for Different VCC
TCA9534A D002_TCA9539.gif
Figure 2. Standby Supply Current vs Temperature for Different Supply Voltage (VCC)
TCA9534A D004_TCA9539.gif
Figure 4. I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 1.65 V
TCA9534A D006_TCA9539.gif
Figure 6. I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 2.5 V
TCA9534A D009_TCA9539.gif
Figure 8. I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 5 V
TCA9534A D011_TCA9539.gif
Figure 10. II/O Low Voltage vs Temperature for Different VCC and IOL
TCA9534A D013_TCA9539.gif
Figure 12. I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 1.8 V
TCA9534A D015_TCA9539.gif
Figure 14. I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 3.3 V
TCA9534A D017_TCA9539.gif
Figure 16. I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 5.5 V
TCA9534A D019_TCA9539.gif
Figure 18. Δ ICC vs Temperature for Different VCC (VI = VCC – 0.6 V)
