5 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

5.1 Application Information

The SN74LVC2G08 is a high-drive CMOS device that can be used for implementing AND logic with a high output drive, such as an LED application. It can produce 24 mA of drive current at 3.3 V, making it Ideal for driving multiple outputs and good for high-speed applications up to 100 MHz. The inputs are 5.5-V tolerant allowing it to translate down to VCC.

5.2 Typical Application

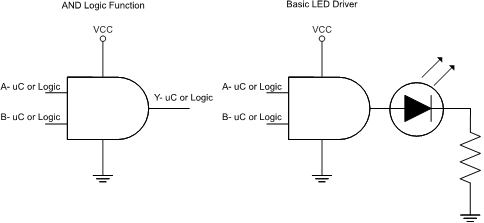

SN74LVC2G08 SCES198typapp.gif Figure 4. Typical Application

5.2.1 Design Requirements

This device uses CMOS technology and has balanced output drive. Tak care to avoid bus contention because it can drive currents that would exceed maximum limits. The high drive will also create fast edges into light loads so routing and load conditions must be considered to prevent ringing.

5.2.2 Detailed Design Procedure

  1. Recommended Input Conditions
  2. Recommended Output Conditions
    • Load currents must not exceed (IO maximum) per output and must not exceed total current (continuous current through VCC or GND) for the part. These limits are located in the Recommended Operating Conditions table.
    • Outputs must not be pulled above VCC in normal operating conditions.

5.2.3 Application Curves

SN74LVC2G08 D003_SCES217.gif Figure 5. ICC vs Frequency
